Stable Power Output: The IS200EPSMG1A provides a highly stable DC power output, which is essential for the proper functioning of the generator’s excitation system. Stable power ensures that the generator can maintain a consistent output voltage and frequency, reducing the risk of power quality issues such as voltage fluctuations and harmonics.
Reliability: Built with high – quality components and a robust design, it is highly reliable. It can withstand electrical noise, voltage surges, and mechanical vibrations commonly encountered in industrial environments. This reliability minimizes downtime and maintenance requirements, ensuring continuous power generation.
Flexibility: It offers flexibility in terms of input power acceptance and output power adjustment. The ability to handle different input voltage levels and frequencies and the adjustable output voltage and current make it suitable for a wide range of generator types and sizes.
Ease of Integration: The RS – 485 communication interface simplifies the integration of the IS200EPSMG1A into existing excitation control systems. It can easily communicate with other devices in the system, allowing for centralized control and monitoring, which streamlines the overall operation and management of the power generation facility.

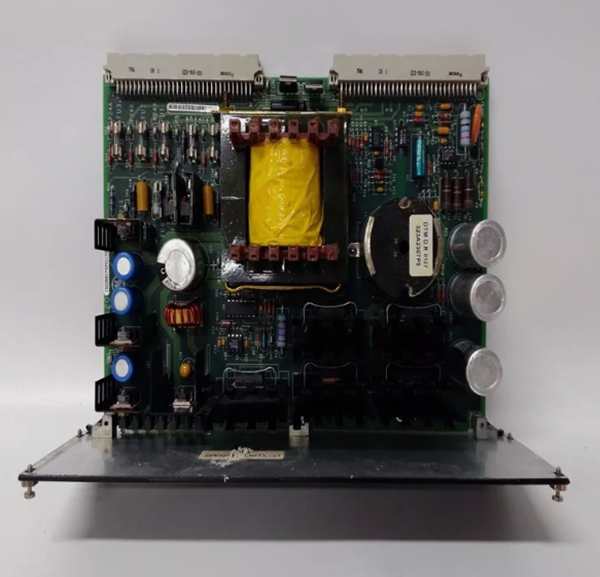

The IS200EPSMG1A is a power supply module developed by General Electric (GE) for use in generator excitation control systems. In generator setups, the excitation system is responsible for creating the magnetic field necessary for the generator to produce electrical power. The IS200EPSMG1A serves as a crucial component that provides stable and regulated power to the excitation system, ensuring the reliable and efficient operation of the generator.
2. Product Parameters
Parameter
Specification
Input Power
It is typically designed to accept a three – phase AC input. The common input voltage range is around 380 – 480V AC, with a standard frequency of 50Hz or 60Hz, which makes it adaptable to different power grid configurations globally.
Output Power
The output is a well – regulated DC power. The output voltage can be adjusted according to the specific requirements of the excitation system, usually ranging from a few tens of volts up to several hundred volts. The output current capacity can reach several hundred amperes, depending on the particular model and application.
Efficiency
Engineered for high efficiency, it can convert a large proportion of the input AC power into useful DC output power. Generally, it can achieve an efficiency level of over 90%, minimizing power losses in the form of heat and reducing energy consumption.
Regulation Accuracy
Offers high – precision voltage and current regulation. The output voltage and current can be regulated within a very tight tolerance, often within ±0.5% of the set value. This ensures that the excitation system receives a stable and accurate power supply, which is vital for maintaining the quality of the electrical power output from the generator.
Communication Interface
Equipped with an RS – 485 communication interface. This allows the module to communicate with other control devices in the excitation system or a central monitoring station. Through this interface, real – time data such as output voltage, current, and status information can be transmitted, enabling remote monitoring, configuration, and diagnostic functions.
Operating Temperature Range
Designed to operate within a temperature range of – 20°C to 60°C. This wide temperature tolerance enables it to be used in various environmental conditions, from cold outdoor power plants to warm indoor industrial settings.
3. Advantages and Features
Stable Power Output: The IS200EPSMG1A provides a highly stable DC power output, which is essential for the proper functioning of the generator’s excitation system. Stable power ensures that the generator can maintain a consistent output voltage and frequency, reducing the risk of power quality issues such as voltage fluctuations and harmonics.
Reliability: Built with high – quality components and a robust design, it is highly reliable. It can withstand electrical noise, voltage surges, and mechanical vibrations commonly encountered in industrial environments. This reliability minimizes downtime and maintenance requirements, ensuring continuous power generation.
Flexibility: It offers flexibility in terms of input power acceptance and output power adjustment. The ability to handle different input voltage levels and frequencies and the adjustable output voltage and current make it suitable for a wide range of generator types and sizes.
Ease of Integration: The RS – 485 communication interface simplifies the integration of the IS200EPSMG1A into existing excitation control systems. It can easily communicate with other devices in the system, allowing for centralized control and monitoring, which streamlines the overall operation and management of the power generation facility.
4. Application Areas and Application Cases
Application Areas
Power Plants: In thermal, hydro, and gas – fired power plants, the IS200EPSMG1A is used to power the excitation systems of large – scale generators. By providing stable power to the excitation system, it helps maintain the generator’s output quality and ensures reliable power supply to the grid.
Industrial Facilities: Industries with their own power generation systems, such as manufacturing plants, refineries, and mines, also utilize this module. It enables these facilities to have more control over their power generation and ensures a stable power supply for their critical operations.
Application Case
In a large – scale thermal power plant, the IS200EPSMG1A is installed to power the excitation system of a 500MW generator. As the power demand from the grid fluctuates throughout the day, the generator’s load changes accordingly. The IS200EPSMG1A can quickly adjust its output voltage and current to maintain the appropriate excitation level of the generator. This ensures that the generator can produce a stable output voltage and frequency, even under varying load conditions, and efficiently supply electricity to the grid.
5. Comparison with Competing Products
Power Quality: Compared to some competing products, the IS200EPSMG1A offers a higher – quality power output with more precise voltage and current regulation. This results in better power quality for the generator’s output, which is crucial for sensitive electrical equipment connected to the grid.
Reliability: GE’s reputation for quality and reliability gives the IS200EPSMG1A an edge over many competing products. Its ability to withstand harsh operating conditions and provide long – term stable operation is a significant advantage in power generation applications.
Flexibility: The flexibility in input and output power settings of the IS200EPSMG1A is often superior to that of competing products. It can be easily adapted to different generator configurations and power system requirements, making it a more versatile choice.
Communication Capabilities: The RS – 485 communication interface allows for better integration and communication with other control devices in the system compared to some competing products that may have limited or no communication features.
6. Selection Suggestions
Power Requirements: Carefully assess the power requirements of your generator’s excitation system, including the input power source available and the specific output voltage and current needs. Ensure that the IS200EPSMG1A can meet these requirements.
System Compatibility: Check the compatibility of the module with your existing excitation control system, including the communication protocols and the main control unit. Make sure it can be seamlessly integrated into your system.
Environmental Conditions: Consider the operating environment of your application, such as temperature, humidity, and electrical noise levels. The IS200EPSMG1A’s operating temperature range and noise – immunity features should be suitable for your specific environment.
Budget: While the IS200EPSMG1A offers high – quality performance, it’s important to consider your budget. Compare the cost of the module with your overall project budget and the features it provides.
7. Precautions
Installation: Follow the installation instructions provided in the product manual precisely. Incorrect wiring, improper grounding, or incorrect mounting can lead to power supply issues, electrical safety hazards, or damage to the module.
Operating Environment: Keep the module within its specified operating temperature and humidity range. Exposure to extreme temperatures, high humidity, or corrosive substances can degrade the performance and lifespan of the module.
Maintenance: Regularly inspect the module for any signs of damage, loose connections, or abnormal operation. Follow the recommended maintenance schedule, which may include cleaning, component testing, and replacement of worn – out parts.
