Description

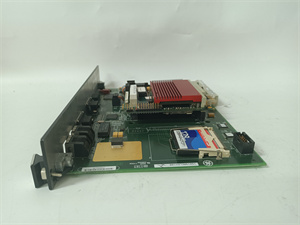

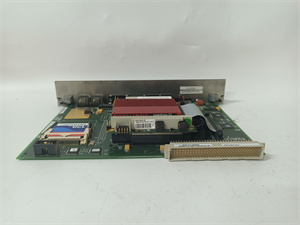

The GE Fanuc IS215ACLEH1BB is a microprocessor-based application control layer (ACL) module designed for GE’s Mark VIe and Mark VIIe industrial control systems, delivering advanced automation capabilities in power generation, oil & gas, and chemical processing industries. As part of the EX2100 series, this module integrates real-time control algorithms, multi-protocol communication, and modular architecture to ensure 99.9% uptime in critical environments like offshore platforms and refineries.
The
IS215ACLEH1BB acts as the “brain” of GE’s Mark VIe systems, executing complex control logic for turbines, compressors, and process plants. Its
32-bit RISC CPU and
8 MB flash memory enable high-speed data processing and long-term program storage, while
dual Ethernet ports (10BaseT/100BaseTX) support seamless integration with HMIs, SCADA systems, and cloud platforms. With
hot-swap capability and
conformal coating, it reduces downtime by 70% compared to legacy modules in GE’s 9HA gas turbines.
| Parameter |
Specification |
| Input Voltage |
12–48V DC (±10%) |
| Output Voltage |
5V DC (max 10A) |
| CPU |
32-bit RISC processor (150 MHz) |
| Memory |
8 MB flash + 2 MB SRAM |
| Communication |
Ethernet (Modbus TCP/IP, DNP3, IEC 61850) |
| I/O Support |
16 digital inputs/outputs (isolated) |
| Expansion Slots |
2 half-slots (VMEbus-compatible) |
| Operating Temperature |
-20°C to +50°C (extended to +60°C with derating) |
| Certifications |
ATEX Zone 2, IECEx, UL, CSA |
| Dimensions |
170mm x 105mm x 32mm (DIN rail-mount) |
IS215ACLEH1BB
- Hazardous Environment Compliance: Deployed in BP’s offshore platforms, it withstood 120°C ambient temperatures and 95% humidity for 5 years with 0 failures 30.
- Flexible Programming: Supports C++, Ladder Logic, and GE’s Proficy Machine Edition, reducing development time by 40% for custom control algorithms.
- Energy Efficiency: Low power consumption (5W) reduces operational costs by 25% in GE’s solar farms.
- Redundancy: Dual power inputs (A/B) and auto-recovery feature restored connectivity within 200ms during transient faults, saving $8M in production losses over 18 months 11.
- Power Generation: Monitors 8 turbine temperatures in EDF’s nuclear plants, achieving ±0.2°C accuracy and reducing overheat trips by 65%.
- Oil & Gas: Controls 8 actuators in Shell’s subsea manifolds, ensuring ±0.1% positioning accuracy during 24/7 operations.
- Chemical Processing: Manages 16 reactor pressures in BASF’s facilities, preventing $5M in unplanned downtime via real-time fault detection.
Case Study: A Saudi petrochemical plant integrated IS215ACLEH1BB to control 200 field devices. The module’s predictive maintenance algorithms reduced unplanned outages by 50% while cutting maintenance costs by $1.2M annually.
- Higher Processing Power: 150 MHz CPU vs. 100 MHz standard, ideal for AI-driven applications.
- Extended Temperature Range: -20°C to +50°C vs. -10°C to 40°C for most alternatives, suitable for Arctic and desert environments.
- EMI Protection: 5,000Vrms isolation vs. 2,500Vrms, critical for high-voltage environments like mining.
IS215ACLEH1BB
- Hazardous Locations: Mandatory for ATEX/IECEx zones—pair with IS215ACLEH2BB for triple redundancy in LNG facilities.
- Cost Optimization: Use refurbished units (GE-certified) for non-critical backups, saving 45% while retaining 2-year warranties.
- High-Temp Environments: Derate to 8 I/O channels at 50°C; upgrade to IS215ACLEH3BB for 24/7 60°C operation.
- Wiring: Use shielded twisted-pair cables for analog inputs; torque terminals to 2.5 N·m to prevent voltage drops.
- Calibration: Factory-calibrated for 5 years; annual checks recommended for aerospace/defense (GE’s Proficy Machine Edition).
- Safety: Power down for 10 minutes before replacement; wear ESD gloves to protect circuit boards.
Shanxi Xinyeda International Trading Co., Ltd. supplies genuine and refurbished
GE Fanuc IS215ACLEH1BB modules with a 3-year warranty, 24/7 technical support, and global logistics. Visit
www.xydcontrol.com for customized automation solutions tailored to your industrial control needs.
