Product Overview

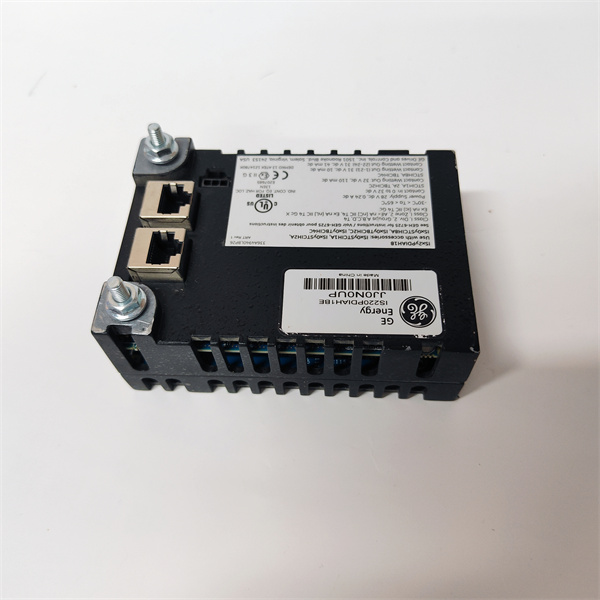

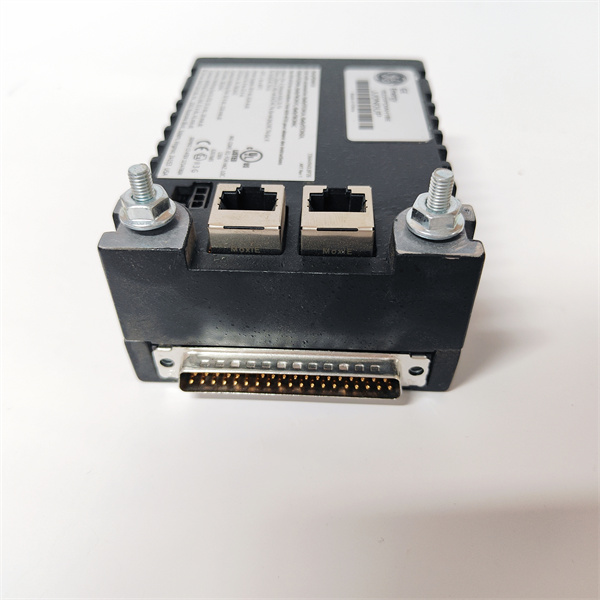

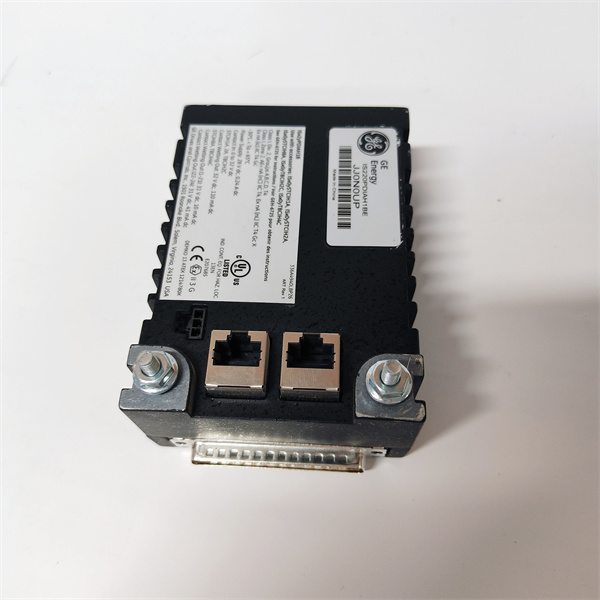

The GE IS220PDIAH1BE 336A5026ADP4 is a discrete input I/O pack designed by General Electric for its Mark VI turbine control system series. As an integral part of the Mark VI family, it plays a crucial role in industrial automation, especially in power generation and large – scale industrial processes where precise control and monitoring are essential.
Functionally, this I/O pack is responsible for receiving discrete input signals from various sensors, switches, and other field devices within an industrial setup. These signals could represent the status of equipment, such as whether a valve is open or closed, a motor is running or stopped, or the position of a mechanical component. The GE IS220PDIAH1BE 336A5026ADP4 then processes these signals and transmits them to the central control system. This enables the control system to make informed decisions regarding the operation of the overall industrial process. For example, in a power plant, it can receive signals from sensors monitoring the status of turbines, generators, and auxiliary equipment. By accurately processing and relaying these signals, it contributes to the seamless operation and efficient control of the power generation process.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PDIAH1BE 336A5026ADP4 |
| Manufacturer | General Electric |
| Product Type | Discrete Input I/O Pack |
| Series | Mark VI |
| Nominal Voltage Rating | 24.0 VDC |
| Max Voltage Rating | 28.6 VDC (for the pack), 32 VDC (contact inputs) |
| Assembly Type | Normal Assembly |
| Functional Revision | 1B |
| Operating Temperature Range | -30 to +65 degrees Celsius (ambient temperature) |
| UL Listing | For both non – hazardous and hazardous locations |
| Compatible Terminal Boards | e.g., is200stcih1a and 2a, is200stcih8a, is200tbcih2c or h4c, is400tbcih2c, is400stcih1a or 2a, is400stcih8a |
| Conformal Coating | Yes (on PCB) |
| Number of Input Channels | [Not provided in source data, consult product manual] |
IS220PDIAH1BE 336A5026ADP4
