IS400JPDHG1ABB IS410JPDHG1A

Description

Parameter Name	Parameter Value
Product Model	IS410JPDHG1A
Manufacturer	General Electric
Product Type	Pack Power DIN Rail Module
Series	Mark VI/VIe
Input Voltage Range	18 – 30 VDC
Output Voltage	24V DC
Continuous Output Current	Up to 10 amps
Peak Output Current	15 amps
Operating Temperature Range	– 40 °C to 70 °C
Dimensions	72 x 45 x 23 mm
Weight	200 grams
Mounting Type	DIN rail mountable
Protection Features	Short – circuit protection, overload protection, reverse – polarity protection

IS400JPDHG1ABB IS410JPDHG1A

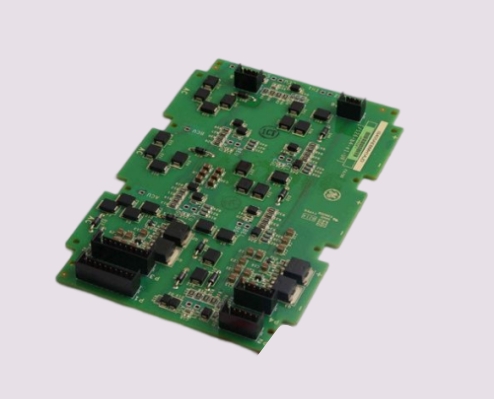

• High – Density Power Distribution: The GE IS400JPDHG1ABB is optimized for high – density power distribution, capable of powering a large number of devices. It can provide 28 V DC power to multiple I/O packs and Ethernet switches, for example. This high – density distribution feature is crucial for large – scale industrial control systems where space is at a premium, allowing for a more compact and organized power distribution setup.

• Daisy – Chain Capability: It supports daisy – chain connections. This means additional high – density power distribution boards can be linked together, enabling the system to be easily expanded as the power requirements grow. This flexibility is beneficial for future – proofing industrial setups, allowing for seamless upgrades without major rewiring or system overhauls.

• Circuit Protection: Each output circuit of the GE IS400JPDHG1ABB is protected with a positive temperature coefficient fuse device. This protection mechanism safeguards the connected devices from over – current situations and temperature – related issues, enhancing the overall reliability and lifespan of the equipment in the control system.

• Convenient DIN Rail Mounting: The GE IS410JPDHG1A‘s DIN rail – mountable design simplifies installation. It can be quickly and easily attached to a DIN rail within a control panel, saving installation time and space. This is highly advantageous in industrial settings where efficient installation and space management are key factors.

• Comprehensive Protection Features: Equipped with short – circuit, overload, and reverse – polarity protection, the GE IS410JPDHG1A ensures the safety of both the module and the connected devices. Short – circuit protection immediately shuts down the output if a short is detected, preventing damage to the module and other components. Overload protection limits the output current during overload conditions, and reverse – polarity protection safeguards against incorrect input voltage connection.

• Stable Power Output: With a stable 24V DC output and the ability to handle up to 10 amps of continuous current and 15 amps of peak current, it can power multiple devices reliably. This stable power supply is essential for maintaining the proper functioning of industrial control systems, ensuring that connected devices such as sensors, actuators, and other modules operate smoothly without power – related disruptions.

• Industrial Control Systems: In large – scale industrial plants, the GE IS400JPDHG1ABB is used to distribute power to a wide range of control devices. This includes powering multiple I/O modules that interface with sensors and actuators, as well as Ethernet switches that are crucial for communication within the control network. For example, in a manufacturing plant with numerous automated production lines, the board can supply power to all the devices involved in the production process control, ensuring seamless operation.

• Power Generation Facilities: Power plants, whether they are gas – fired, coal – fired, or hydroelectric, rely on complex control systems. The GE IS400JPDHG1ABB can be used to distribute power to the various control components within these plants. It powers modules that monitor and control parameters such as temperature, pressure, and flow rates, which are essential for the efficient and safe operation of the power generation process.

• Industrial Control and Automation: The GE IS410JPDHG1A is widely used in industrial control and automation applications. It can power sensors that detect the position, speed, or condition of machinery, as well as actuators that control the movement or operation of equipment. In a robotic assembly line, for instance, it can provide power to the sensors that guide the robot’s movements and the actuators that perform the assembly tasks.

• Building Automation: In modern buildings, there are various automated systems such as lighting control, HVAC (Heating, Ventilation, and Air – Conditioning) control, and security systems. The GE IS410JPDHG1A can be used to power the control modules within these systems. It ensures stable power supply to devices that regulate lighting levels, control temperature, and monitor security sensors, contributing to the overall energy – efficiency and functionality of the building.

• Traffic Control Systems: Traffic control systems rely on a network of sensors, signal controllers, and communication devices. The GE IS410JPDHG1A can power these components, ensuring the proper functioning of traffic lights, traffic sensors that detect vehicle presence and flow, and communication modules that transmit data to a central control station. This helps in maintaining smooth traffic flow and efficient traffic management.


  IS400JPDHG1ABB IS410JPDHG1A

• GE IS400JPDHG1A: Similar to the GE IS400JPDHG1ABB, it is also a high – density power distribution board. However, it may have different specific power ratings, connection configurations, or be optimized for slightly different applications within the industrial control space.

• GE IS410JPDHG1B: This could be an upgraded or variant of the GE IS410JPDHG1A. It might have enhanced features such as higher power output capabilities, additional protection mechanisms, or improved communication interfaces to better suit evolving industrial requirements.

• GE PAC8000 I/O Modules: These I/O modules can be powered by the GE IS410JPDHG1A or connected to the power distribution network provided by the GE IS400JPDHG1ABB. They are responsible for handling input and output signals in industrial control systems, working in tandem with the power distribution components.

• GE Mark VI Controllers: The GE IS400JPDHG1ABB and GE IS410JPDHG1A often work in conjunction with GE Mark VI controllers. The controllers process data from various sensors and devices, and the power distribution components ensure a stable power supply for the controllers to function properly.

• GE Power Supplies: Different GE power supplies, such as those with higher or lower voltage outputs, can be used in combination with the GE IS400JPDHG1ABB and GE IS410JPDHG1A. They can provide the input power required by these power distribution and module components, depending on the specific power requirements of the overall industrial system.
