Product Overview

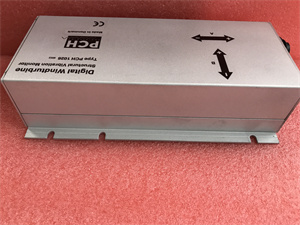

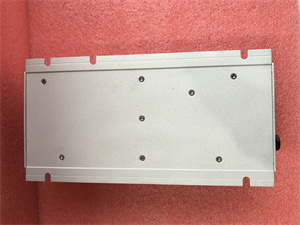

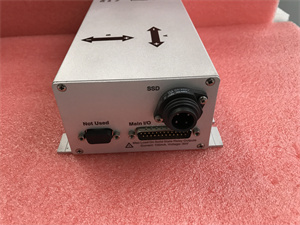

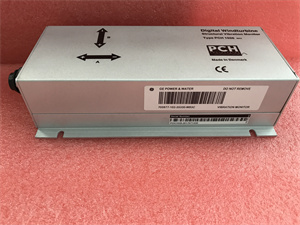

The GE PCH1026 is a digital structural vibration monitor designed by General Electric. It is a crucial component in industrial and mechanical setups, mainly for vibration monitoring and fault diagnosis purposes. Engineered to meet the demands of low – frequency structural vibration monitoring applications, this device offers a high level of configurability.
The GE PCH1026 comes with a built – in accelerometer, enabling it to precisely detect vibrations. With multiple input channels, it can be configured to use built – in or external accelerometers, supporting up to three built – in accelerometer directions and four external input channels. This flexibility allows for comprehensive monitoring in various industrial scenarios. It was developed in close cooperation with leading wind turbine manufacturers, and has been proven in protecting over 100,000 wind turbines globally, highlighting its reliability and effectiveness in real – world applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PCH1026 |
| Manufacturer | General Electric |
| Product Type | Digital Structural Vibration Monitor |
| Input Channels | 4 (internal/external) |
| Accelerometer Configuration | Up to 3 built – in directions; supports external accelerometers |
| Outputs | 4 raw outputs (12 conditioning bands) |
| Frequency Monitoring Range | As low as 0.05Hz (for low – frequency applications) |
| Communication Protocols | CANopen, Modbus, Profinet, Profibus, Ethernet (for data transfer and integration) |
| Alarm Features | Programmable alarm levels with 4 independent alarm relays and programmable brake/disconnect functions |
| Data Logging | Capable of data logging and trend analysis for equipment health assessment |
| Operating Temperature | Designed to operate in a wide temperature range suitable for industrial environments |
| Dimensions | 254x130x66 mm (length x width x height) |
| Weight | Approximately 2 kg |
| Safety Certifications | Certified as Pl = d safety component according to Germanischer Lloyd GL2010 guidelines and ISO13849 – 1; also ISO 4866 certified for building vibration monitoring |
PCH1026
Main Features and Advantages
High – Precision Vibration Detection
The GE PCH1026 uses a built – in accelerometer that can accurately measure vibrations, even in the low – frequency range starting from 0.05Hz. This precision is vital for early detection of potential equipment issues. For example, in rotating machinery like pumps or compressors, small changes in low – frequency vibrations can indicate developing problems such as bearing wear or misalignment.
Configurable Input Options
With the ability to configure up to three built – in accelerometer directions and support four external input channels, the PCH1026 offers great flexibility. In complex industrial setups where multiple types of vibration sources need to be monitored, users can mix and match internal and external sensors to get a comprehensive view of the vibration landscape.
Industry – Proven Filter Technology
The filter technology employed in the GE PCH1026 is based on extensive experience in wind turbine applications. This ensures that it can effectively filter out unwanted noise and focus on the relevant vibration frequencies. In wind turbines, for instance, it can accurately detect vibrations related to tower movement or gearbox operation, reducing false alarms and providing reliable data for decision – making.
Alarm and Data Logging Capabilities
It has programmable alarm levels and four independent alarm relays, which can be set to trigger when vibration thresholds are exceeded. Additionally, the monitor can log vibration data over time. This data can be used for trend analysis, helping maintenance teams predict equipment failures and plan maintenance activities more effectively.
Application Field
Wind Turbine Monitoring
The GE PCH1026 is widely used in wind farms. It can monitor the vibration of various components such as the tower, blades, and gearbox. By continuously tracking the vibration levels, it can detect issues like tower cracks, blade imbalances, or gearbox malfunctions. For example, if the tower experiences abnormal vibrations, the PCH1026 can quickly alert operators, allowing them to take preventive measures and avoid costly downtime.
Rotating Equipment in Industrial Plants
In industrial plants, rotating equipment like pumps, fans, compressors, and generators are critical. The PCH1026 can be installed on these devices to monitor their vibration. For pumps, it can detect cavitation or impeller imbalance through vibration analysis. In compressors, it can identify issues related to piston wear or valve problems. By providing early warnings, it helps in preventing sudden breakdowns and maintaining smooth production processes.
Structural Monitoring of Buildings and Infrastructure
For large structures such as steel towers, chimneys, bridges, and buildings, the GE PCH1026 can be used to monitor low – frequency vibrations. In a large industrial chimney, it can detect any signs of structural weakness due to wind or thermal stress. In a bridge, it can monitor vibrations caused by traffic loads, ensuring the safety and integrity of the structure over time.
PCH1026
Related Products
- GE PCH1072: Another vibration monitor from GE, but it may have different features. For example, it could be more focused on high – frequency vibration monitoring compared to the PCH1026‘s emphasis on low – frequency. It might also have a different sensor configuration or communication protocol options.
- CHB 1102/17 and CHB 1101: These are external sensors that can be connected to the GE PCH1026. They expand the monitoring capabilities of the PCH1026 by allowing it to detect vibrations from additional sources or in different areas of the equipment or structure being monitored.
- GE IC660ELB912G: A MicroGENI daughterboard that can be part of a larger industrial control system where the PCH1026 may also be integrated. While the PCH1026 focuses on vibration monitoring, the IC660ELB912G is more about communication and connection within the control system, but they can work together in an overall industrial automation setup.
- GE DS215UCVBG3A: This could be an I/O module that might be used in a system where the PCH1026 is installed. It may help in processing and transmitting the vibration data collected by the PCH1026 to other parts of the control system for further analysis or control actions.
- GE IS220PRTDH1A: A process control module. In an industrial process where vibration monitoring by the PCH1026 is important, the IS220PRTDH1A can be used in parallel to monitor other process parameters like temperature, and the data from both can be integrated to get a more comprehensive view of the process health.
Installation and Maintenance
Pre – installation preparation: Before installing the GE PCH1026, ensure that the area where it will be installed is clean and free from excessive dust or moisture. Check the compatibility of the device with the existing system in terms of communication protocols and power requirements. Verify that the mounting location can firmly hold the 2 – kg monitor. Make sure to read the installation manual carefully, as it provides specific instructions on how to connect the internal and external sensors, if applicable, and how to configure the initial settings for optimal performance.
Maintenance recommendations: Regularly check the GE PCH1026 for any signs of physical damage, such as cracks in the casing. Clean the device periodically to keep the sensors free from dirt that could affect vibration detection accuracy. Monitor the logged data regularly to identify any unusual trends in vibration patterns. If the device has been configured to use external sensors, also check the connection points of these sensors to ensure they are secure. In case of any alarms, refer to the manual to troubleshoot the issue promptly.
Maintenance recommendations: Regularly check the GE PCH1026 for any signs of physical damage, such as cracks in the casing. Clean the device periodically to keep the sensors free from dirt that could affect vibration detection accuracy. Monitor the logged data regularly to identify any unusual trends in vibration patterns. If the device has been configured to use external sensors, also check the connection points of these sensors to ensure they are secure. In case of any alarms, refer to the manual to troubleshoot the issue promptly.
Product Guarantee
GE stands behind the quality of the GE PCH1026 with a comprehensive product guarantee. The company ensures that the product is free from manufacturing defects for a specified period. In case of any quality – related issues during this time, GE will provide repair or replacement services at no additional cost to the customer. Their global technical support team is available to assist with any questions regarding installation, configuration, or troubleshooting. GE’s strict quality control measures during production give customers confidence in the reliability of the PCH1026 in industrial vibration monitoring applications. This guarantee reflects GE’s commitment to providing high – quality products that meet the needs of industrial customers and enhance the efficiency and safety of their operations.
