Product Overview
The GE PMC422 – LAM D2 is a high – performance eight – port serial controller module engineered for industrial applications by General Electric, a trusted name in industrial technology. As part of GE’s comprehensive portfolio for industrial control, this module stands out for its advanced features and robust reliability, making it an ideal choice for a diverse range of industrial systems.
It serves as a crucial link in industrial setups, enabling seamless communication between various devices. With eight independent serial channels, it can interface with sensors, actuators, and other controllers. Whether in a large – scale manufacturing plant or a complex process control system, the GE PMC422 – LAM D2 provides the necessary functionality to ensure smooth data transfer and efficient control, enhancing the overall productivity and stability of industrial operations. Its design caters to the needs of industries that require high – speed, reliable serial communication for accurate monitoring and control.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PMC422 – LAM D2 |
| Manufacturer | GE |
| Product Type | Eight – port Serial Controller Module |
| Serial Channels | Eight independent channels |
| Baud Rates | Programmable from 100 bits/sec to 921.6 kbits/sec |
| UART Register Set | 16C550 – compatible |
| FIFO per Channel | 64 – byte |
| PCI Compatibility | Full (32 MHz / 32 bit) |
| Dedicated Input | 8 – bit switch input |
| Operating Voltage | 120 VAC / 24 VDC |
| Current Rating | 1 A |
| Operating Temperature | – 40 °C to + 85 °C |
| Communication Interface | RS – 485, Ethernet |
| Dimensions | 15 cm x 10 cm x 5 cm |
| Weight | 0.5 kg |

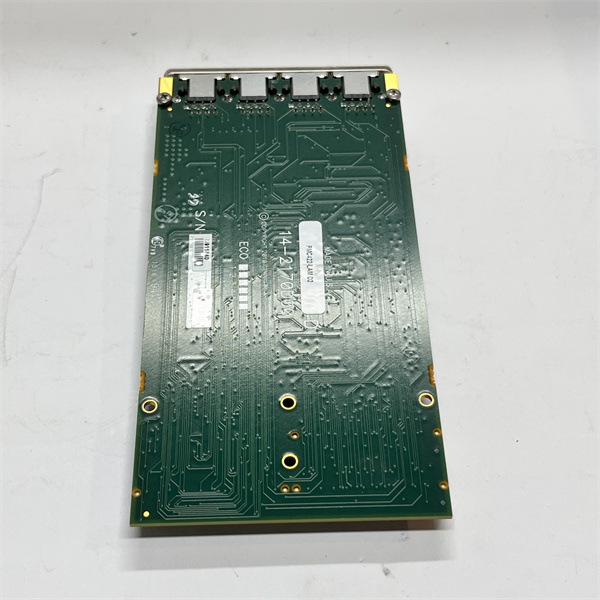

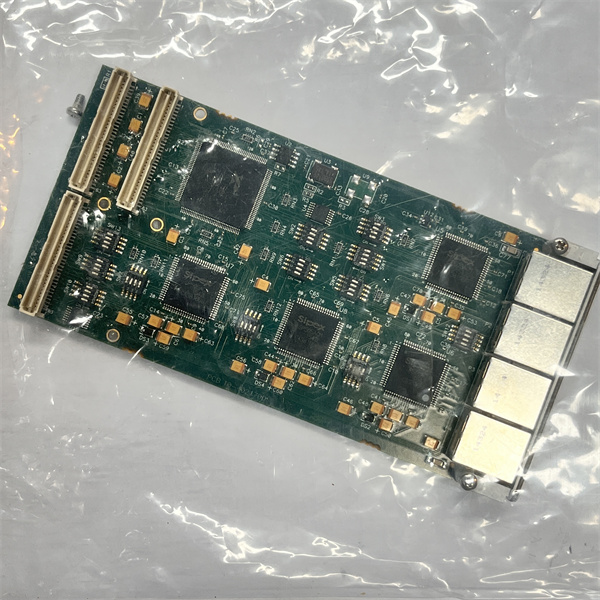

PMC422-LAM D2
Main Features and Advantages
Multiple Serial Channels
The GE PMC422 – LAM D2 comes equipped with eight independent serial channels. This allows for simultaneous communication with multiple devices, increasing the efficiency of data collection and control. For example, in a manufacturing line, it can connect to different sensors for temperature, pressure, and position all at once, providing real – time data for process optimization.
Programmable Baud Rates
With baud rates programmable from 100 bits/sec to 921.6 kbits/sec, it offers great flexibility. This means it can adapt to the communication speed requirements of various industrial devices. Whether it’s a slow – responding legacy sensor or a high – speed modern actuator, the module can be configured to communicate effectively.
Compatibility and Standardization
Featuring a 16C550 – compatible UART register set and full PCI compatibility, it ensures easy integration into existing industrial systems. This compatibility reduces the need for complex customizations, saving both time and resources during system setup or expansion. The 64 – byte FIFO per channel helps in buffering data, preventing data loss during high – speed communication.
Application Field
In the manufacturing industry, the GE PMC422 – LAM D2 is extensively used in automated production lines. It can control the operation of robotic arms by communicating with their controllers, ensuring precise movements for tasks like pick – and – place operations. In a food and beverage factory, it can interface with filling machines, capping machines, and labelers, coordinating their actions for seamless production.
For process control applications, such as in chemical plants, the module plays a vital role. It can connect to sensors that monitor chemical reactions, like pH levels, temperature, and flow rates. By relaying this data to the central control system, it enables operators to adjust the process parameters in real – time, ensuring product quality and safety.
In test and measurement setups, the GE PMC422 – LAM D2 can interface with various test equipment. For instance, in an electronics testing laboratory, it can communicate with oscilloscopes, multimeters, and signal generators. This allows for automated data collection and analysis, improving the efficiency of testing processes.

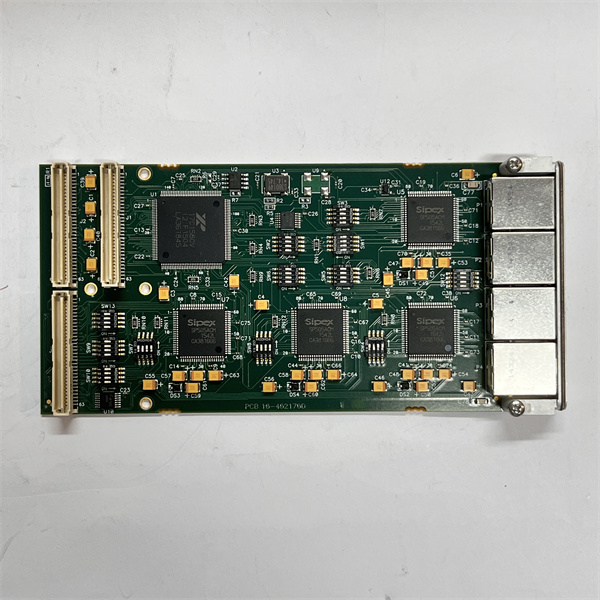

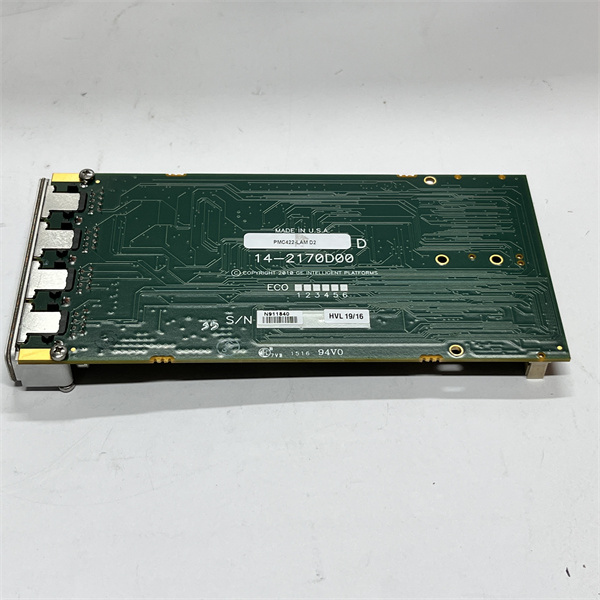

PMC422-LAM D2
Related Products
- GE PMC422 Series Modules: These are other modules in the same series as the PMC422 – LAM D2. They might have different configurations, such as a different number of serial ports or variations in communication protocols supported. For example, some could be designed for more specialized industrial applications with unique serial communication requirements.
- GE Interface Cables: Specific cables designed by GE to connect the PMC422 – LAM D2 to other industrial devices. These cables are engineered to ensure reliable data transfer and electrical connection, optimizing the performance of the module in the overall system.
- GE Power Supply Modules: Modules that supply power to the PMC422 – LAM D2. They are designed to meet the exact power requirements of the controller module, ensuring stable and efficient operation.
- GE Industrial Controllers: Other industrial controllers from GE that can work in tandem with the PMC422 – LAM D2. They may handle higher – level control functions, while the PMC422 – LAM D2 focuses on serial communication – based control and data collection.
- GE Monitoring Software: Software developed by GE to work with the PMC422 – LAM D2. It allows operators to monitor the module’s performance, configure its settings, and analyze the data it collects, enhancing the usability and functionality of the module in industrial applications.
Installation and Maintenance
Pre – installation preparation: Before installing the GE PMC422 – LAM D2, carefully read the installation manual provided by GE. Ensure that the installation environment meets the module’s requirements in terms of temperature, humidity, and electrical safety. Check the compatibility of the module with the devices it will be connected to, especially in terms of communication protocols and voltage levels. Make sure all the necessary tools for installation, such as screwdrivers and wire strippers, are at hand. Also, verify that the PCI slot in the target system, where the module will be installed, is in good working condition.
Maintenance recommendations: Regularly inspect the GE PMC422 – LAM D2 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the communication performance for any data transfer errors. If possible, use diagnostic tools to check the module’s health. Clean the module periodically to remove dust and debris that could affect its operation. In case of any issues, refer to the product manual for troubleshooting steps or contact GE’s technical support for assistance. Periodically update the module’s firmware, if available, to ensure optimal performance and compatibility with the latest industrial standards.
Maintenance recommendations: Regularly inspect the GE PMC422 – LAM D2 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the communication performance for any data transfer errors. If possible, use diagnostic tools to check the module’s health. Clean the module periodically to remove dust and debris that could affect its operation. In case of any issues, refer to the product manual for troubleshooting steps or contact GE’s technical support for assistance. Periodically update the module’s firmware, if available, to ensure optimal performance and compatibility with the latest industrial standards.
Product Guarantee
GE provides a strong product guarantee for the GE PMC422 – LAM D2. The module undergoes strict quality – control procedures during manufacturing to meet high – industry standards. GE typically offers a comprehensive warranty, covering manufacturing defects for a specified period. In case of any quality – related issues within the warranty period, GE’s global technical support team is readily available. They can provide detailed guidance on installation, troubleshooting, and, if necessary, arrange for the repair or replacement of the GE PMC422 – LAM D2 promptly. This reflects GE’s commitment to delivering reliable and high – performing products for industrial automation, ensuring long – term customer satisfaction.
