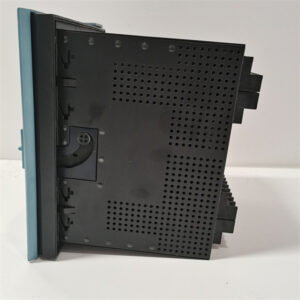

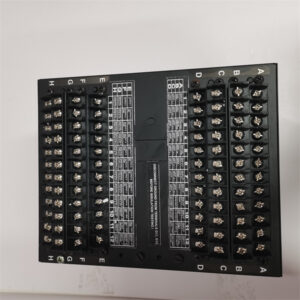

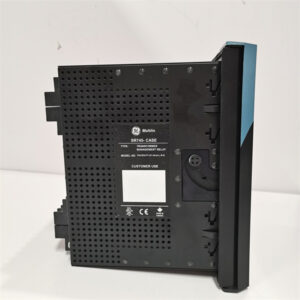

SR745-W2-P1-G1-HI-A-L-R-E

The GE SR745-W2-P1-G1-HI-A-L-R-E is a high – performance transformer management relay by GE Multilin, meticulously designed for power system protection and control applications. As a key component in safeguarding transformers, it plays a crucial role in ensuring the stable operation of power grids and industrial power systems.

This relay offers a comprehensive suite of protection functions. It provides overcurrent, overvoltage, undervoltage, differential, and frequency protection. For example, its differential protection can effectively detect internal faults in transformers, such as inter – turn short circuits, while overcurrent protection prevents equipment damage caused by excessive current. The SR745-W2-P1-G1-HI-A-L-R-E also monitors physical and electronic variables like temperature, harmonics, and over – excitation of transformers. By continuously assessing these parameters, it can take preventive actions to avoid transformer overload or damage. Leveraging FlexLogic™ technology, it combines set – point capabilities to create a flexible programming structure. This adaptability allows it to meet the specific protection requirements and system configurations of diverse applications, whether in large – scale power generation plants or small – to – medium – sized industrial facilities.

The GE SR745-W2-P1-G1-HI-A-L-R-E offers a wide range of protection functions. Its overvoltage protection safeguards transformers from high – voltage damage, while undervoltage protection ensures that low voltage does not disrupt equipment normal operation. Frequency protection keeps the transformer operating within the specified frequency range. These comprehensive protection features cover various fault situations that transformers may encounter, significantly enhancing the safety and reliability of the transformer system.

Thanks to FlexLogic™ technology, the relay can be easily configured according to specific system needs. Users can adjust protection settings and functional configurations to match different application requirements. For instance, in a power plant with complex power distribution systems, the relay can be programmed to adapt to the unique characteristics of the transformers, providing optimized protection and control.

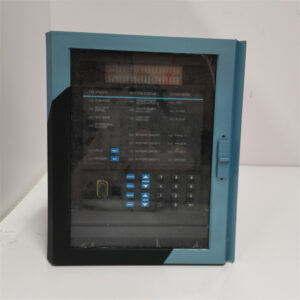

Equipped with an enhanced 40 – character display screen and an extended keyboard, the SR745-W2-P1-G1-HI-A-L-R-E improves input efficiency and readability. Operators can conveniently set parameters, view fault information, and perform system debugging. This user – friendly design reduces the learning curve for new users and enables experienced technicians to work more efficiently.

The “-HI” suffix indicates that this relay is designed to operate in harsh environmental conditions. It can withstand extreme temperatures, humidity, and other challenging factors, making it suitable for installation in various industrial settings, including outdoor substations and plants with high – humidity environments.

This relay supports battery power – on, ensuring continuous operation even during power outages. This feature is crucial for applications where uninterrupted monitoring and protection of transformers are essential, such as in critical power distribution systems for hospitals or data centers.

In power generation plants, the GE SR745-W2-P1-G1-HI-A-L-R-E is used to protect and manage the transformers that step – up the voltage generated by generators for transmission. It monitors the transformers’ operating parameters in real – time, such as current, voltage, and temperature. If any abnormal conditions are detected, it can quickly trigger protective actions, such as tripping circuit breakers, to prevent damage to the transformers. This helps to ensure the stable operation of the power generation process and the reliable supply of electricity to the grid.

Industrial facilities often rely on transformers to supply appropriate voltages to their machinery. The SR745-W2-P1-G1-HI-A-L-R-E can be installed in manufacturing plants, like automotive factories or chemical plants. In an automotive factory, it protects the transformers that power the production line equipment. By providing reliable protection against overcurrent, overvoltage, and other faults, it ensures the continuous operation of the manufacturing process, minimizing production downtime.

Utility companies use this relay in their power transmission and distribution networks. It monitors and controls the transformers that distribute electricity to residential and commercial customers. For example, in a local power grid, the SR745-W2-P1-G1-HI-A-L-R-E can detect faults in distribution transformers, such as overheating due to overload. It can then send signals to the grid control center, allowing operators to take corrective measures to maintain grid stability and ensure a continuous power supply to end – users.

This is a more advanced version in the SR745 series. It has three windings compared to the two – winding SR745-W2-P1-G1-HI-A-L-R-E. It may offer more complex protection algorithms and additional monitoring capabilities, making it suitable for larger and more complex power systems with higher – voltage transformers.

Similar to the SR745-W2-P1-G1-HI-A-L-R-E, but without the “-E” feature. The “-E” in SR745-W2-P1-G1-HI-A-L-R-E likely indicates some enhanced functionality, perhaps in terms of communication protocols or diagnostic capabilities. So, the non – “-E” version could be a more basic and cost – effective option for applications with less demanding requirements.

Belonging to a different product line but related in function as a motor protection relay. While the SR745-W2-P1-G1-HI-A-L-R-E focuses on transformer protection, the Multilin 469 is designed for protecting motors. However, they both share the same high – quality manufacturing standards from GE and may use similar underlying technologies for protection and monitoring.

A feeder protection relay. It is used to protect power feeders in electrical distribution systems. In contrast, the SR745-W2-P1-G1-HI-A-L-R-E is centered around transformer protection. But they can work in tandem in a power system, with the 735 protecting the feeders and the SR745-W2-P1-G1-HI-A-L-R-E protecting the transformers connected to those feeders.

This represents the broader SR745 series. Different models within this series may have variations in features such as the number of protection functions, communication capabilities, or input/output configurations. The SR745-W2-P1-G1-HI-A-L-R-E is one specific model with its own set of features optimized for certain applications, while other models in the series can be selected based on different requirements.

Pre – installation preparation: Before installing the GE SR745-W2-P1-G1-HI-A-L-R-E, ensure that the power supply to the transformer system is turned off. Verify the compatibility of the relay with the existing transformer setup, including checking the rated voltage and current of the transformer against the relay’s specifications. Measure the available space in the control panel to ensure a proper fit, as the relay has dimensions of 21.6 cm x 22.4 cm x 25.2 cm. Clean the installation area to prevent dust or debris from affecting the relay’s performance. When mounting it on a standard 19 – inch panel, pay close attention to the door position to ensure installation accuracy and stability.
Maintenance recommendations: Regularly inspect the GE SR745-W2-P1-G1-HI-A-L-R-E for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the display screen for any error messages or abnormal parameter readings. Check the input and output signals periodically to ensure they are within the normal range. Clean the relay gently using a soft, dry cloth to remove accumulated dust. Keep an eye on the operating temperature, as it should remain within the – 40 °C to 70 °C range. If any issues are detected, refer to the product manual for troubleshooting steps. Additionally, stay updated on GE Multilin’s software releases and upgrade the relay’s firmware when necessary to benefit from the latest features and security enhancements.

GE has full confidence in the quality of the SR745-W2-P1-G1-HI-A-L-R-E transformer management relay. The product is manufactured using top – notch components and undergoes strict quality control procedures. GE offers a comprehensive product guarantee. For the SR745-W2-P1-G1-HI-A-L-R-E, there is a standard one – year warranty against defects in materials and workmanship. In case of any product failures during the warranty period, GE’s dedicated after – sales service team is committed to providing prompt assistance. They can offer troubleshooting guidance, supply replacement parts if needed, or arrange for on – site repair services. GE’s technical support experts are always available to answer customers’ questions regarding the installation, configuration, and operation of the SR745-W2-P1-G1-HI-A-L-R-E, ensuring that customers can rely on this product for long – term, stable, and efficient performance in their power system applications.
