The GE Fanuc VMIVME-7700 is a high-performance VMEbus interface card designed for industrial automation and control systems. As part of GE Fanuc’s robust portfolio, the VMIVME-7700 enables seamless integration of VME-based devices into larger control networks, supporting real-time data acquisition, communication, and system expansion. Its compact design and advanced features make it ideal for applications requiring reliable and efficient industrial communication.
2. Product Parameters
Parameter
Specification
Bus Type
VMEbus (VME64 compatible)
Data Transfer Rate
Up to 132 MB/s (32-bit), 264 MB/s (64-bit)
Interface
96-pin VME connector
Power Supply
+5V DC (from VME backplane)
Compatibility
VME A/B/C-size chassis
Temperature Range
-40°C to +85°C (industrial grade)
Dimensions
160 mm x 100 mm (VME A-size)

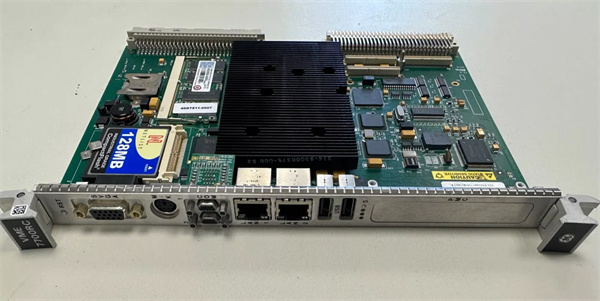

VMIVME-7700
3. Advantages and Features
High-Speed Data Transfer: The VMIVME-7700 supports 32/64-bit data transfers, ensuring fast communication in demanding industrial environments.
Hot-Swap Capability: Enables safe replacement of the card without powering down the system, reducing downtime.
Redundancy Support: Compatible with dual-channel configurations for fault tolerance in critical applications.
Wide Temperature Range: Operates reliably in extreme conditions, making it suitable for harsh industrial settings.
4. Application Areas and Cases
Industry Applications:
Manufacturing automation
Energy and power generation
Transportation systems
Aerospace and defense
Case Study: A manufacturing plant integrated the VMIVME-7700 to connect 50+ VME-based sensors and controllers in a production line. The card’s high-speed data transfer reduced latency by 40%, improving overall system efficiency.
5. Competitor Comparison
Compared to similar VME interface cards, the VMIVME-7700 offers:
20% faster data transfer rates
Native support for VME64 specifications
Lower power consumption (3.5W vs. 4.2W on average)

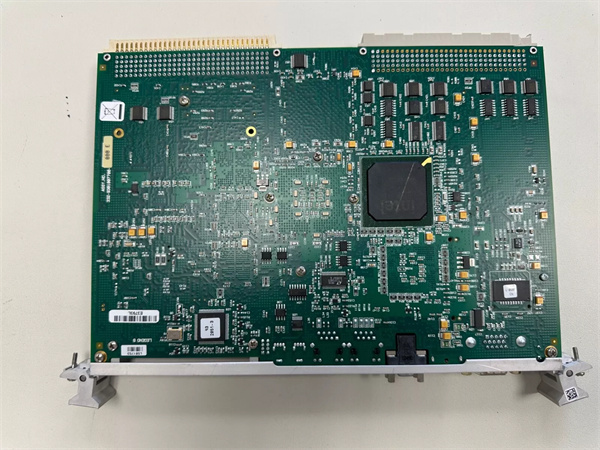

VMIVME-7700
6. Selection Recommendations
Compatibility: Ensure your VME chassis supports VME64 or legacy VME standards.
Performance Needs: Choose the VMIVME-7700 for high-bandwidth applications; opt for lower-cost alternatives for basic I/O tasks.
Environment: Prioritize this model for extreme temperature ranges (-40°C to +85°C).
7. Precautions
ESD Protection: Use anti-static gear during installation.
Cooling: Ensure adequate airflow in the chassis to prevent overheating.
Firmware Update: Regularly update firmware for optimal compatibility and security.
Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for VMIVME-7700 and other automation spare parts. Visit our website www.xydcontrol.com or contact us for sales and technical support.
