Description

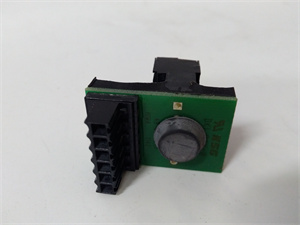

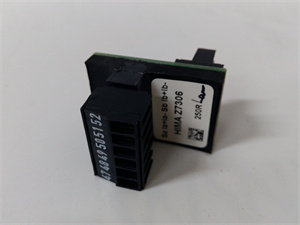

Shunt Adapter
The shunt adapter is a plug-in module for the analog inputs of the safety-related controller
F35 and Remote I/O F3 AIO 8/4 01.
• Shunt 250 Ω
• Overvoltage protection
The shunt adapter is coated for protection against dirt and humidity.
The resistor for the HART mode is built into the adapter.
The HART resistor value is 250 Ω.
Technical Data Z 7306
Shunt adapter
Resistance 250 Ω
Tolerance 0.1%
Temperature coefficient 25 ppm/°C
Permanent load capacity at
current measurement
See service value of analog inputs
Maximum power loss per
shunt
0.4 W (250 Ω)
at Imax = 40 mA
Overvoltage protection Imax = 40 mA @ 25 °C or UI max ≤ 24 V
Operating temperature 0 °C to +60 °C
Storage temperature -40 °C to +85 °C
Dimensions (H x W x D) 35 x 23 x 25 mm
