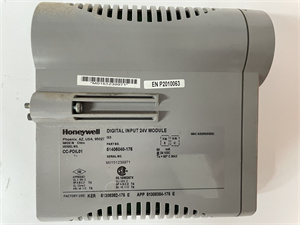

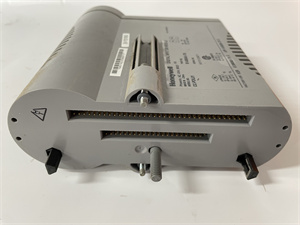

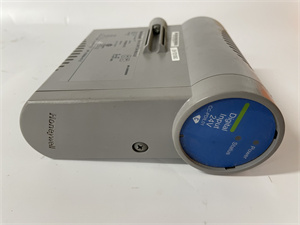

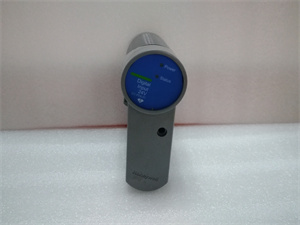

Honeywell CC-PDIL01

The Honeywell CC – PDIL01 is a high – performance digital input module, designed to be a cornerstone in industrial automation and process control systems. As an integral part of Honeywell’s renowned Experion Process Knowledge System (PKS) series C I/O family, the CC – PDIL01 module is engineered to meet the diverse and demanding requirements of modern industrial environments.

This module serves as a crucial data acquisition point in automation setups. Its primary function is to receive digital signals from a wide range of field devices, such as sensors, switches, and relays. With 32 input channels, it can efficiently handle a large volume of digital input data simultaneously. These signals are then processed and transmitted to the central control system, enabling real – time monitoring and control of industrial processes. For example, in a manufacturing plant, the CC – PDIL01 can detect the status of limit switches on conveyor belts, the activation of safety sensors, and the operation of various machinery. By accurately relaying this information, it plays a vital role in ensuring the smooth and safe operation of the entire production line.

The Honeywell CC – PDIL01 features a high – reliability design, making it suitable for use in harsh industrial conditions. The galvanic isolation of 1500 VAC rms or ±1500 VDC between each input channel and from the common terminal effectively prevents electrical interference and noise from affecting the data integrity. This isolation, combined with the optical isolation technique in the Input/Output Module (IOM), ensures that the module can operate stably even in environments with strong electromagnetic fields, such as near large motors or power distribution systems. The use of high – quality components and advanced circuit design further enhances its reliability, reducing the risk of failures and minimizing downtime in industrial operations.

With a wide DI power voltage range of 18 – 30 VDC, the CC – PDIL01 can accommodate different types of field devices. It has specific on – sense and off – sense voltage/current thresholds, which are 13 VDC (min) or 3 mA (min) for “on” and 5 VDC (max) or 1.2 mA (max) for “off”. This flexibility allows it to interface with various digital sensors and switches, regardless of their power supply requirements within the specified range. Additionally, the module can handle different input impedance levels, with a standard input impedance of 4.2 kΩ. This adaptability makes the CC – PDIL01 a versatile choice for a wide range of industrial applications, where different types of digital input devices need to be integrated into a single control system.

The module is designed to provide precise signal processing. The absolute delay across the input filter and isolation is 5 ms ± 20%, ensuring that the digital signals are processed and transmitted in a timely and accurate manner. This level of precision is crucial in applications where real – time control is essential, such as in high – speed manufacturing processes or safety – critical systems. For example, in a chemical plant, any delay in detecting a change in the status of a safety – related switch could have serious consequences. The CC – PDIL01‘s precise signal processing capabilities help to minimize such risks by quickly and accurately relaying the input signals to the control system, enabling prompt responses to any changes in the industrial process.

The CC – PDIL01 is designed for easy integration into existing industrial control systems. It comes with a standard serial interface that is compatible with popular communication protocols like Modbus RTU, as well as Digital RS485 / 422 / 232 standards. This compatibility allows it to communicate seamlessly with other components in the control network, such as programmable logic controllers (PLCs), distributed control systems (DCSs), or supervisory control and data acquisition (SCADA) systems. Its physical dimensions of 19.1 cm×18.8 cm×6.5 cm and a weight of 0.4 kg make it compact and easy to install in control cabinets, even in spaces with limited room. The module also features a user – friendly design, with clearly marked terminals for easy wiring, reducing the complexity of installation and maintenance.

In manufacturing plants, the Honeywell CC – PDIL01 is widely used to monitor and control various aspects of the production process. For instance, in an automotive assembly line, it can be used to detect the position of parts on conveyors through proximity sensors. By accurately determining the location of components, it enables the precise operation of robotic arms for assembly tasks. In a food and beverage production facility, the module can monitor the status of valves and sensors in the filling and packaging processes. It can detect when a bottle is properly positioned for filling, or when a packaging seal is complete, ensuring the quality and consistency of the final products. The CC – PDIL01‘s ability to handle multiple digital inputs simultaneously makes it ideal for complex manufacturing setups with numerous sensors and switches.

In the energy sector, the CC – PDIL01 plays a crucial role. In power generation plants, whether thermal, hydro, or wind, it can monitor the status of various equipment. For example, in a thermal power plant, it can detect the open/closed status of boiler valves, the operation of pumps in the cooling system, and the activation of emergency shutdown switches. In a wind farm, the module can monitor the position of wind turbine blades through position sensors and detect any faults in the turbine’s braking system. In the oil and gas industry, it can be used to monitor the status of valves in pipelines, the operation of compressors, and the activation of safety devices. By providing real – time data on equipment status, the CC – PDIL01 helps to ensure the safe and efficient operation of energy production and distribution systems.

The chemical industry often operates in harsh environments with strict safety requirements, and the Honeywell CC – PDIL01 is well – suited for such applications. It can monitor the status of various sensors in chemical reactors, such as temperature sensors, pressure sensors, and level sensors. By detecting the digital signals from these sensors, it can inform the control system of any abnormal conditions, allowing for timely corrective actions. For example, if a pressure sensor in a reactor indicates a dangerous increase in pressure, the CC – PDIL01 can quickly transmit this information to the control system, which can then activate safety measures like releasing excess pressure or shutting down the reactor. The module’s high – reliability and interference – resistant design make it reliable in the presence of chemical vapors, high temperatures, and strong electromagnetic fields commonly found in chemical plants.

In water and wastewater treatment plants, the CC – PDIL01 is used to control and monitor the treatment process. It can detect the status of pumps, valves, and sensors in the water treatment system. For example, it can monitor the open/closed status of valves that control the flow of water between different treatment tanks. It can also detect when a pump has malfunctioned by monitoring the status of motor – related sensors. In wastewater treatment, the module can be used to monitor the operation of sludge – handling equipment and the activation of alarms in case of overflow or other system failures. By providing accurate and real – time data, the CC – PDIL01 helps to ensure the proper functioning of water and wastewater treatment plants, providing clean water for consumption and protecting the environment from polluted wastewater.

The CC – PDIL02 might be an upgraded version of the CC – PDIL01. It could offer additional features such as more input channels, enhanced communication capabilities, or improved noise – filtering techniques. This model would be suitable for applications that require a higher density of digital input channels or more advanced data transfer speeds, such as in large – scale industrial complexes with a large number of sensors and switches to monitor.

The CC – PAIL01 is an analog input module. It complements the CC – PDIL01 as it is responsible for collecting analog signals from field sensors (such as temperature, pressure, and flow sensors) and converting them into digital signals for further processing. In an industrial automation system, the CC – PDIL01 can handle digital input tasks, while the CC – PAIL01 takes care of analog input tasks. Together, they can provide a comprehensive data acquisition solution for monitoring and controlling industrial processes.

As a digital output module, the CC – PDOL01 works in tandem with the CC – PDIL01. The CC – PDIL01 receives digital input signals, and based on the control logic implemented in the system, the control system can send commands to the CC – PDOL01 to output digital signals to actuators, such as solenoid valves, motors, and relays. In an automated warehouse system, the CC – PDIL01 can detect the presence of goods on shelves through sensors, and the CC – PDOL01 can control the movement of conveyors and the operation of robotic picking arms based on the received input signals.

The CC – TDI01 may be a more specialized digital input module, perhaps with a focus on time – critical applications. It could have features like ultra – fast response times or high – precision time – stamping of input signals. This model would be useful in applications where precise timing of events is crucial, such as in high – speed manufacturing lines where the sequence of operations needs to be tightly controlled.

The “R” in the CC – PDIL01R likely indicates a redundant version. In applications where high availability is critical, such as in aerospace or nuclear power industries, this model provides redundant functionality. In case of a failure in one part of the module, the redundant components can take over, ensuring continuous operation and data acquisition. This redundancy helps to minimize the risk of system failures and maintain the integrity of the industrial process control system.

Before installing the Honeywell CC – PDIL01 module, ensure that the installation environment meets the specified requirements. The operating temperature should be within the range of 0°C – 60°C. Prepare the necessary installation tools, such as screwdrivers for mounting the module on the DIN rail and wire strippers for cable connection. Disconnect all power sources in the control system to avoid electrical accidents during installation. Check the module’s appearance for any visible damage or defects. Mount the CC – PDIL01 on a suitable DIN rail in the control cabinet, making sure it is firmly secured. Prepare the communication and power cables according to the specified specifications, ensuring proper shielding to reduce electromagnetic interference. The cables should be of appropriate gauge to handle the current requirements and have sufficient length to reach the relevant field devices and other components in the control system.

Regularly inspect the CC – PDIL01 module for physical damage, such as cracks in the casing or loose connections. Check the wiring connections to ensure they are secure and free from corrosion. Monitor the module’s operating temperature during normal operation to ensure it remains within the specified range. Use diagnostic tools provided by Honeywell to check the communication status and the integrity of the input signals. In case of communication failures or incorrect input readings, first check the power supply, cable connections, and communication settings. If the problem persists, refer to the detailed troubleshooting guide in the product manual. When replacing components, always use genuine Honeywell parts to maintain the module’s performance and reliability. Keep records of all maintenance activities, including inspection dates, problems found, and solutions implemented, for future reference. Periodically clean the module to remove dust and debris, as these can affect its performance over time, especially in environments with high levels of particulate matter.

Honeywell provides a comprehensive service and guarantee for the CC – PDIL01 module. The product typically comes with a standard 1 – year warranty, during which any manufacturing defects will be repaired or replaced free of charge. Honeywell’s global network of technical support teams is available around the clock to assist customers with installation, commissioning, and troubleshooting. Whether it’s a query about module configuration, communication issues, or hardware – related problems, customers can expect prompt and accurate solutions. Honeywell also offers regular software updates and firmware upgrades for the CC – PDIL01 to enhance its performance, add new features, and ensure compatibility with the latest industrial standards. This commitment to service and support reflects Honeywell’s confidence in the quality of the CC – PDIL01 and its dedication to meeting the long – term needs of customers in the industrial automation field.
