Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8160 |
| Manufacturer | ICS TRIPLEX (now part of ABB Group) |
| Product category | Trusted TMR Interface Module |
| Input Voltage Range | 24 V DC |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 100 mm × 50 mm × 35 mm |
| Weight | 0.2 kg |
| Certifications | IEC 61508 SIL 3, CE, UL, CSA |
| Communication Protocols | Modbus RTU, Ethernet/IP, Profibus |
| Number of I/O Points | Configurable up to 512 points |
| Processing Speed | 1 ms per instruction |
| Memory Capacity | 512 KB RAM |

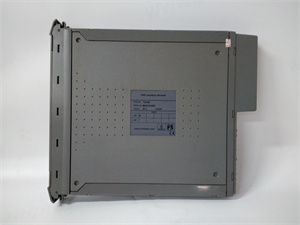

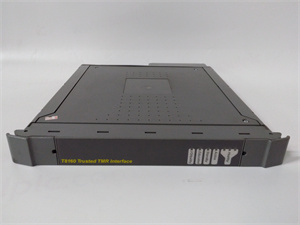

ICS TRIPLEX T8160
Product Introduction
The ICS TRIPLEX T8160 is a high-performance Trusted TMR Interface Module designed for industrial automation and control systems. It provides a secure and reliable interface between the Trusted Controller and the Regent and Regent+Plus I/O subsystems. This module is part of the ICS TRIPLEX series, known for its robustness and reliability in critical applications.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8160 employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability.
High Reliability and Fault Tolerance
This module supports comprehensive diagnostics, monitoring, and testing for rapid fault identification. It also features a fully shielded design for Electro-Magnetic Compatibility (EMC), ensuring reliable operation in harsh industrial environments.
Wide Compatibility
The module supports multiple communication protocols, including Modbus RTU, Ethernet/IP, and Profibus, ensuring seamless integration with various control systems.
Scalability and Flexibility
The ICS TRIPLEX T8160 features a modular design with expansion interfaces, allowing flexible customization of system functions to meet different application needs.

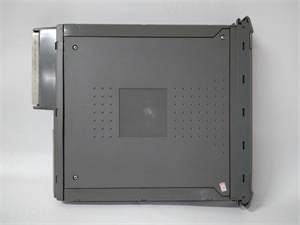

ICS TRIPLEX T8160
Typical Application Scenarios
The ICS TRIPLEX T8160 is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Monitoring and controlling critical processes in refineries and drilling operations.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Manufacturing: Automation control systems for production lines and robotic interfaces.
Related Model Recommendations
-
ICS TRIPLEX T8403C: A digital input module with high reliability and availability.
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8160, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +85°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8160. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8160 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
