Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8193 |
| Manufacturer | ICS TRIPLEX (now part of Honeywell Process Solutions) |
| Product category | Communication Shield Module |
| Input Voltage Range | 24 V DC ± 10% |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 19.5 cm × 28 cm × 10 cm |
| Weight | 2 kg |
| Certifications | IEC 61508 SIL 3, CE, UL, CSA |
| Communication Protocols | Ethernet, Modbus TCP/IP, RS-485 |
| Safety Features | Black Channel principle, 32-bit CRC check, sequence number, timestamp |
| Fault Tolerance | Triple Modular Redundancy (TMR) architecture, 2oo3 voting mechanism |
| Self-Diagnosis Coverage | ≥99.9% (meets IEC 61508 SIL 3 requirements) |

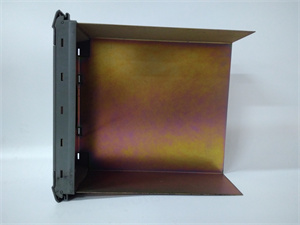

ICS TRIPLEX T8193
Product Introduction
The ICS TRIPLEX T8193 is a high-performance communication shield module designed for industrial automation and process control systems. It is part of the ICS TRIPLEX series, known for its robustness and reliability in critical applications. This module provides a secure and reliable interface for communication between the controller and other system components, ensuring high availability and fault tolerance.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8193 employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability.
High Reliability and Fault Tolerance
This module supports comprehensive diagnostics, monitoring, and testing for rapid fault identification. It also features a fully shielded design for Electro-Magnetic Compatibility (EMC), ensuring reliable operation in harsh industrial environments.
Safety Communication Interface
The ICS TRIPLEX T8193 features a safety communication interface with a Black Channel principle, ensuring that communication link failures do not affect safety functions. Each data frame includes a 32-bit CRC check, sequence number, and timestamp to prevent replay attacks.
Wide Compatibility
The module supports multiple communication protocols, including Ethernet, Modbus TCP/IP, and RS-485, ensuring seamless integration with various control systems.

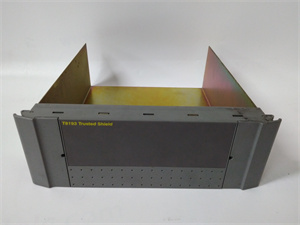

ICS TRIPLEX T8193
Typical Application Scenarios
The ICS TRIPLEX T8193 is widely used in industries where high reliability and safety are paramount, such as:
-
Nuclear Power: Reactor protection and safety systems.
-
Oil & Gas: Offshore drilling platforms, refinery safety systems.
-
Chemical Processing: Monitoring and control of hazardous processes.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
Related Model Recommendations
-
ICS TRIPLEX T8403C: A digital input module with high reliability and availability.
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8193, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC ± 10%) and that the operating temperature range (-40°C to +85°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8193. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
