Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8310 |
| Manufacturer | ICS TRIPLEX |
| Product category | Trusted TMR Expander Processor |
| Operating Voltage | 20 to 32 V DC |
| Power Consumption | 45 W (Backplane Supply) |
| Number of Expansion Slots | 2 (in Expander Chassis) |
| Communication Protocols | Modbus RTU (serial), Ethernet |
| Operating Temperature Range | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Dimensions | 266 mm (H) × 31 mm (W) × 303 mm (D) |
| Weight | 1.33 kg (2.9 lb) |
| Certifications | IEC 61508 SIL 3, CE, UL, CSA |

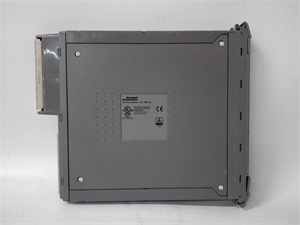

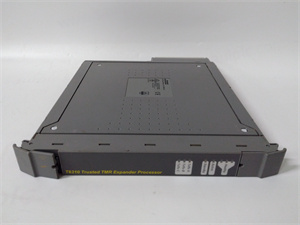

ICS TRIPLEX T8310
Product Introduction
The ICS TRIPLEX T8310 is a high-performance Trusted TMR Expander Processor designed for industrial control systems. It provides a reliable interface between the Expander Chassis and the Controller Chassis, ensuring robust communication and fault tolerance. This module is part of the ICS TRIPLEX Trusted TMR system, known for its high reliability and safety in critical applications.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8310 employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability.
High Reliability and Fault Tolerance
This module supports comprehensive diagnostics, monitoring, and testing for rapid fault identification. It also features a fully shielded design for Electro-Magnetic Compatibility (EMC), ensuring reliable operation in harsh industrial environments.
Easy Installation and Maintenance
The ICS TRIPLEX T8310 supports hot-standby and module spare configurations for automatic and manual repair strategies. Its modular design allows for simple replacement and expansion, minimizing downtime.
Wide Compatibility
The module supports multiple communication protocols, including Modbus RTU (serial) and Ethernet, ensuring seamless integration with various control systems.

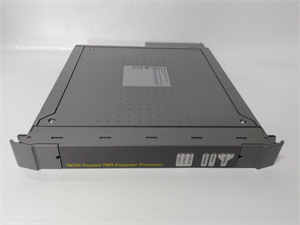

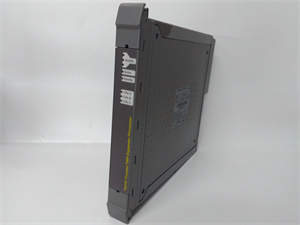

ICS TRIPLEX T8310
Typical Application Scenarios
The ICS TRIPLEX T8310 is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Emergency shutdown systems (ESD) and turbine overspeed protection.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Pharmaceutical: High-integrity batch control.
Related Model Recommendations
-
ICS TRIPLEX T8403C: A digital input module with high reliability and availability.
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8314: A fiber optic transceiver module for long-distance communication.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8310, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 to 32 V DC) and that the operating temperature range (0°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8310. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
