Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8314 |
| Manufacturer | ICS TRIPLEX |
| Product category | Fiber Optic Transceiver Module |
| Operating Voltage | 18-32 V DC |
| Power Consumption | Maximum 1.7 W |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-mode fiber optic cable |
| Connectors | SC type connectors for Tx and Rx |
| Mounting | DIN rail mounting |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Dimensions | 84 mm (H) × 110 mm (W) × 40 mm (D) |
| Weight | 320 g (0.7 lb) |
| Certifications | IEC 61508 SIL 3, CE, RoHS |

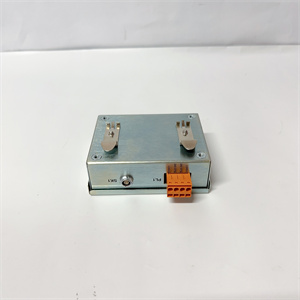

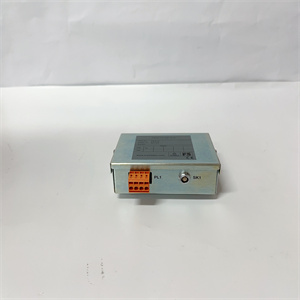

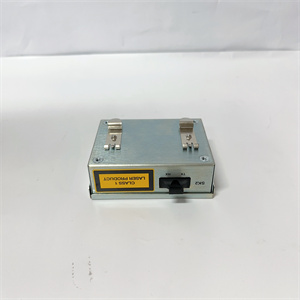

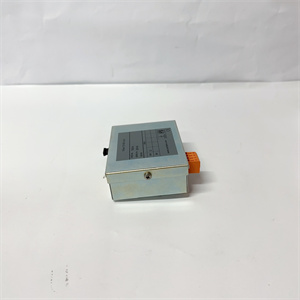

ICS TRIPLEX T8314
Product Introduction
The ICS TRIPLEX T8314 is a robust fiber optic transmitter/receiver unit designed for industrial applications requiring reliable communication over long distances and in harsh environmental conditions. It extends the Trusted Expander Bus over distances of up to 10 kilometers, allowing a Trusted Expander Chassis to be located remotely from the Trusted System. This module is ideal for critical industrial control systems where high availability and fault tolerance are essential.
Core Advantages and Technical Highlights
Long-Distance Communication
The ICS TRIPLEX T8314 supports transmission distances of up to 10 kilometers, making it suitable for large-scale industrial environments where long-distance data transmission is required.
Dual Power Supply
This module features a dual 24V DC redundant power supply, ensuring system reliability even in the event of a power failure.
Easy Installation and Maintenance
The ICS TRIPLEX T8314 supports DIN rail mounting, facilitating easy installation and maintenance. Its modular design allows for simple replacement and expansion.
High Reliability
Constructed with industrial-grade components, the ICS TRIPLEX T8314 is designed to operate reliably in harsh environments with wide temperature and humidity ranges.
Low Power Consumption
The module has a maximum power consumption of 1.7 W, making it energy-efficient and suitable for systems with limited power supply.
ICS TRIPLEX T8314
Typical Application Scenarios
The ICS TRIPLEX T8314 is widely used in industries where high reliability and long-distance communication are critical, such as:
-
Oil & Gas: Monitoring and controlling pipeline systems safely and efficiently.
-
Power Generation: Ensuring reliable communication between control systems and remote equipment.
-
Manufacturing: Facilitating seamless automation of production lines by extending control system reach.
Related Model Recommendations
-
ICS TRIPLEX T8403C: A digital input module with high reliability and availability.
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8314, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (18-32 V DC) and that the operating temperature range (0°C to 60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8314. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8314 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
