Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8403CX |
| Manufacturer | ICS TRIPLEX |
| Product category | Digital Input Module |
| Operating Voltage | 24 V DC |
| Max I/O Count | Up to 256 |
| Communication Protocols | Ethernet/IP, Modbus TCP, RS232, RS485 |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Operating Humidity Range | 0% to 95% RH (non-condensing) |
| Dimensions | 200 mm × 150 mm × 50 mm |
| Weight | 2 kg |
| Certifications | CE, RoHS, IEC 61508 SIL 3 |

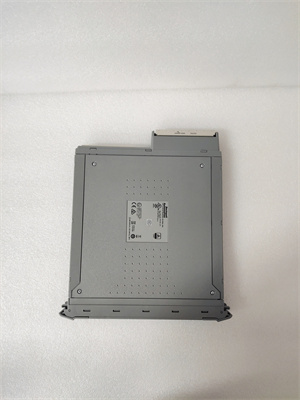

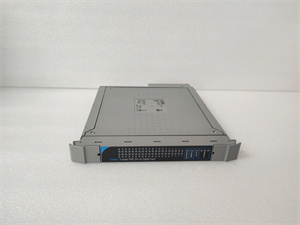

ICS TRIPLEX T8403CX
Product Introduction
The ICS TRIPLEX T8403CX is a high-performance digital input module designed for industrial automation and control systems. It is part of the ICS TRIPLEX series, known for its robustness and reliability in critical applications. This module features a Triple Modular Redundant (TMR) architecture, ensuring high availability and fault tolerance. It supports multiple communication protocols and is suitable for various industrial fields, including chemical, petroleum, power, natural gas, manufacturing, and water treatment.
Core Advantages and Technical Highlights
High Reliability and Fault Tolerance
The ICS TRIPLEX T8403CX employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability and fault tolerance.
Advanced Signal Processing
This module supports up to 256 input/output channels, allowing it to simultaneously process multiple signals and control multiple devices. It features high-speed data processing capabilities, ensuring precise and timely control.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T8403CX can operate reliably in extreme temperatures (-20°C to +60°C) and high humidity (0% to 95% RH non-condensing). Its compact design and lightweight construction (2 kg) make it easy to install and integrate into existing systems.
Comprehensive Diagnostics
The module includes onboard diagnostics for detecting faults such as open circuits, short circuits, and overrange conditions. It also provides real-time monitoring of module status and performance to ensure reliable operation.

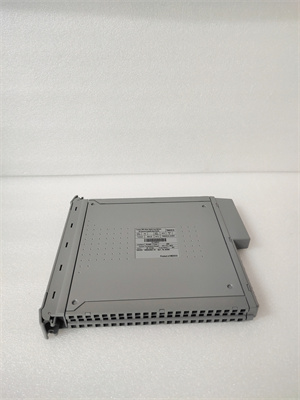

ICS TRIPLEX T8403CX
Typical Application Scenarios
The ICS TRIPLEX T8403CX is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Monitoring and controlling complex processes in refineries and drilling operations.
-
Water Treatment: Ensuring safe water supply by automating chemical dosing and filtration processes.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Manufacturing: Automation control systems for production lines and robotic interfaces.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T8449: A valve monitor module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8403CX, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8403CX. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8403CX is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
