Description
System Architecture & Operational Principle
The ICS TRIPLEX T8451 is a core component of the ICS TRIPLEX Trusted 8000 Series safety instrumented system (SIS), deployed at Purdue Model Level 1 (Basic Control) or Level 2 (Supervisory Control) depending on the application. It acts as the primary interface between the Trusted safety controller (e.g., T8100, T9400) and field-mounted digital devices (e.g., emergency stop buttons, fire detectors, pressure switches).
Upstream/Downstream Interaction
-
Upstream: Receives digital output commands from the Trusted controller via the Trusted I/O bus (a proprietary high-speed serial link).
-
Downstream: Converts the controller’s commands into 24VDC digital signals to drive field devices (e.g., solenoid valves, motor starters) or trigger alarms.
Key Architectural Advantages
The T8451 leverages Triple Modular Redundancy (TMR)—three independent output channels per signal—with a 2-out-of-3 voting mechanism. This ensures that a single channel failure (e.g., due to EMI, wiring issues) does not compromise system integrity. The Trusted I/O bus provides deterministic communication (≤1ms latency) and hot-swappable module replacement, minimizing downtime during maintenance.
Operational Principle
Each output channel uses a six-element voted array to ensure fault-tolerant control. The module receives output data from the Trusted controller, transmits it to an internal safety layer hardware voter, and uses the voted data to control the outputs. Every output channel includes automatic over-current protection (no fuses required) and line monitoring (detects open/short circuits in field wiring). For critical applications, the Sequence of Events (SOE) feature captures output changes with 1ms resolution, enabling precise root-cause analysis of safety incidents.

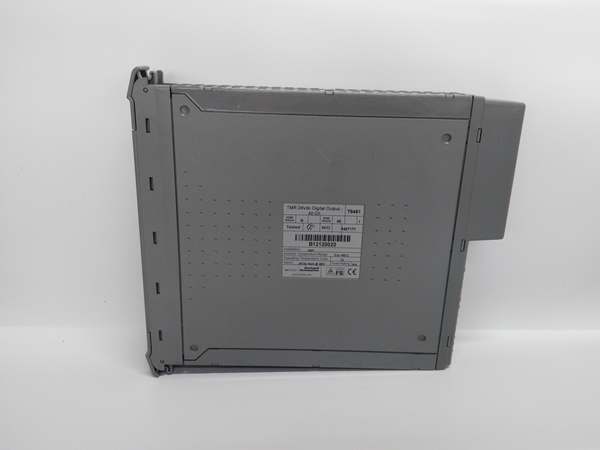

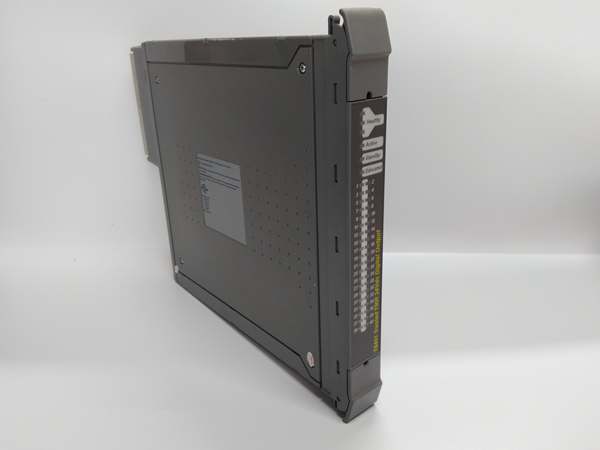

ICS TRIPLEX T8451
Core Technical Specifications
-
Output Type: Discrete digital (24VDC)
-
Number of Channels: 40 (organized into 5 independent power groups, 8 channels per group)
-
Output Current: 2A per channel (max 8A per power group)
-
Voltage Range: 24VDC nominal (18–32VDC operating)
-
Isolation: 2500V dc opto-isolation (channel-to-channel/backplane)
-
Voting Logic: 2-out-of-3 (2oo3) hardware voting for fault tolerance
-
Event Resolution: 1 ms (Sequence of Events reporting)
-
Communication: Trusted I/O bus (proprietary; supports hot-swap)
-
Power Consumption: ≤8W maximum (from backplane)
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
-
Environmental Rating: IP20 (dust-protected; suitable for control cabinets)
-
Safety Certification: IEC 61508 SIL 3 (TÜV), CE, UL, ATEX
-
Dimensions: 241 mm × 30 mm × 300 mm (9.5″ × 1.2″ × 11.8″)
-
Weight: 1.3 kg (2.90 lb)
Customer Value & Operational Benefits
Uncompromised Safety with TMR Architecture
The T8451’s triple modular redundancy ensures fault tolerance—even if one channel fails, the other two maintain signal integrity. This is critical for safety-critical applications like emergency shutdown (ESD) systems, where a single point of failure could lead to catastrophic consequences. For example, in an offshore refinery, the T8451 controls pressure relief valves; if one channel fails, the voting mechanism ignores it, preventing unnecessary shutdowns while alerting maintenance teams.
Reduced Downtime with Hot-Swap Design
The module supports online hot-swapping—technicians can replace a faulty T8451 without shutting down the entire I/O rack. This is a game-changer for continuous process industries (e.g., power generation, petrochemicals), where even a 1-hour outage can cost millions in lost production. The Trusted I/O bus automatically reroutes communication to the replacement module, minimizing disruption.
Simplified Maintenance with Advanced Diagnostics
The T8451 features comprehensive self-diagnostics (e.g., stuck on/off detection, short circuit protection, voltage/current monitoring) and SOE reporting (1ms resolution). Maintenance teams can quickly identify faulty channels using the controller’s diagnostic interface, reducing mean time to repair (MTTR) from hours to minutes. For instance, if a fire detector’s output fails, the SOE log pinpoints the exact time and channel, eliminating guesswork during troubleshooting.
Scalability for Growing Systems
The T8451’s modular design allows easy expansion—additional modules can be added to the I/O rack to accommodate more field devices. This scalability is ideal for industries like chemical processing, where production lines often expand to meet demand. The Trusted I/O bus supports up to 512 I/O points per rack, making the T8451 a future-proof solution.

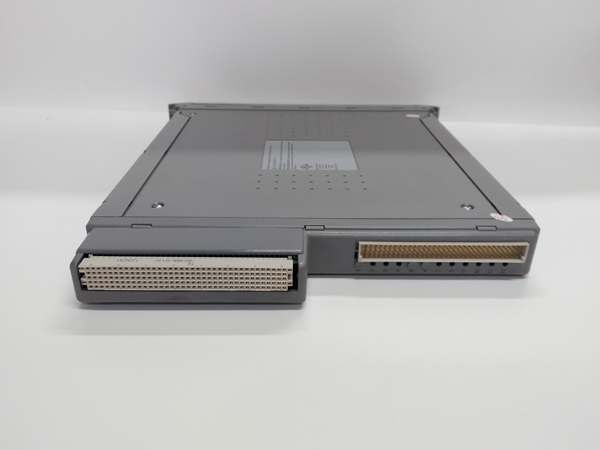

ICS TRIPLEX T8451
Field Engineer’s Notes (From the Trenches)
When installing the T8451, always verify the power group configuration—each of the 5 power groups supplies 8 channels, and overloading a group (exceeding 8A) will trigger over-current protection. I once saw a technician connect 10A loads to a single group, causing the module to shut down unexpectedly. Use a multimeter to measure the current draw per group before powering up.Ground the module properly—the T8451 requires a single-point ground (connected to the control cabinet’s ground bus) to avoid ground loops. I’ve encountered cases where multiple grounds caused EMI interference, resulting in false output signals. Use a multimeter to check the ground resistance (should be ≤1Ω) before powering up the module.Test the SOE feature after installation—use a signal generator to simulate an output change and verify that the controller logs the event with 1ms resolution. This ensures that the SOE function is working correctly, which is critical for post-incident analysis.
Real-World Applications
Offshore Oil Platform Emergency Shutdown (ESD)
On an offshore oil platform, the T8451 controls emergency stop buttons, fire and gas detectors, and pressure relief valves. The TMR architecture ensures that even if one channel fails (e.g., due to saltwater corrosion), the system continues to monitor critical signals. For example, if a fire detector’s output is lost, the T8451 alerts the controller, which triggers the ESD sequence—shutting down pumps, closing valves, and activating fire suppression systems—within milliseconds.
Chemical Reactor Safety Interlock
In a chemical reactor, the T8451 controls temperature switches, level sensors, and pressure transmitters. The module’s line monitoring feature detects open/short circuits in field wiring, preventing false trips. If the reactor temperature exceeds the safe limit, the T8451 sends a signal to the controller, which closes the steam valve and opens the cooling water valve—preventing a runaway reaction. The SOE feature logs the exact time of the temperature spike, helping engineers identify the root cause (e.g., a faulty sensor or process deviation).
Power Plant Turbine Protection
In a gas-fired power plant, the T8451 controls turbine vibration sensors, bearing temperature switches, and overspeed detectors. The TMR architecture ensures that the turbine is protected even if one channel fails. For example, if a vibration sensor’s output fails, the T8451 uses the other two channels to continue monitoring—preventing unnecessary turbine shutdowns while alerting maintenance teams to the faulty sensor.
