Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T9110 |
| Manufacturer | ICS TRIPLEX (part of Rockwell Automation) |
| Product category | Industrial Control Processor Module |
| Operating Voltage | 24 V DC |
| Input Frequency | 50/60 Hz |
| Output Frequency | 50 kHz |
| Number of Input Channels | 16 |
| Number of Output Channels | 16 |
| Communication Protocols | Modbus, Profibus, Ethernet |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 140 mm × 104 mm × 90 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, ISO 9001 |

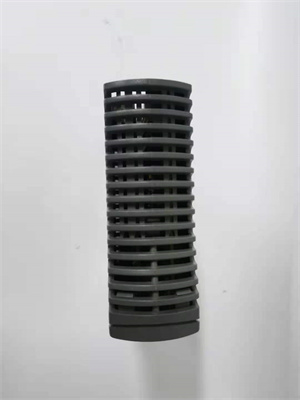

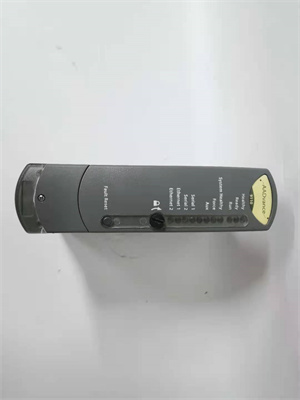

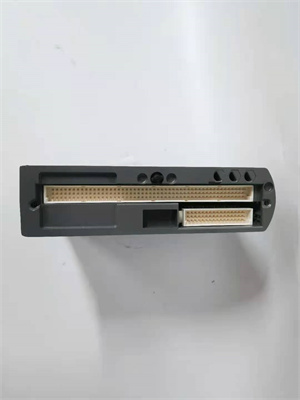

ICS TRIPLEX T9110
Product Introduction
The ICS TRIPLEX T9110 is a high-performance processor module designed for critical industrial control applications. It is part of the ICS TRIPLEX AADvance series, known for its robustness and reliability in demanding environments. This module serves as the central processing unit of the AADvance controller, executing safety logic and interfacing with I/O modules to ensure continuous and safe operation. Its triple modular redundant (TMR) architecture provides high availability and fault tolerance, making it ideal for mission-critical systems.
Core Advantages and Technical Highlights
High Reliability and Fault Tolerance
The ICS TRIPLEX T9110 employs a TMR architecture, ensuring high availability and fault tolerance. It features redundant processors and communication paths, allowing seamless failover in case of a failure. This design ensures continuous operation even in harsh industrial environments.
Advanced Diagnostics and Redundancy
The module supports continuous self-diagnostics and health monitoring, enabling real-time fault detection and alerting. It also features built-in diagnostic tools for quick problem identification and predictive maintenance.
Versatile Communication Capabilities
The ICS TRIPLEX T9110 supports multiple communication protocols, including Modbus, Profibus, and Ethernet, ensuring seamless integration with various control systems. It also features redundant communication paths to prevent communication breakdowns.
Scalable and Flexible
The module is designed with scalability in mind, allowing users to add additional processing power or functionality as needed. It supports a wide range of I/O types, including digital, analog, and safety signals, making it suitable for diverse industrial applications.

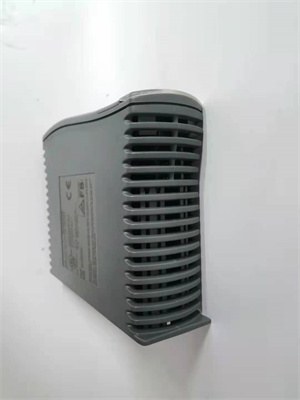

ICS TRIPLEX T9110
Typical Application Scenarios
The ICS TRIPLEX T9110 is widely used in industries where high reliability and safety are paramount, such as:
-
Manufacturing: Automated control on production lines to improve efficiency and product quality.
-
Power Generation: Monitoring and control of power systems to ensure stability and safety.
-
Oil & Gas: Ensuring safe and reliable operation in harsh environments.
-
Chemical Processing: Managing hazardous processes in chemical plants.
-
Water Treatment: Controlling and monitoring water treatment processes.
Related Model Recommendations
-
ICS TRIPLEX T9451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T9481: An analog output module with high precision and reliability.
-
ICS TRIPLEX T9300: An I/O backplane module, designed for expanding the system’s input/output capabilities.
-
ICS TRIPLEX T9432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T9310-02: A 2-meter expansion cable for extending the system’s backplane.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T9110, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +85°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T9110. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
