Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8461C |
| Manufacturer | ICS TRIPLEX |
| Product category | Digital Output Module |
| Operating Voltage | 20 to 32 V DC |
| Number of Outputs | 40 |
| Output Voltage Range | 18 to 60 V DC |
| Output Current Rating | 0.75 A per channel, 6 A per power group |
| Channel Supply Voltage Range | 20 to 32 V DC |
| Weight | 1.32 kg |
| Certifications | IEC 61508 SIL 3, UL, CE |
| Dimensions | 140 mm x 104 mm x 90 mm |
| Operating Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |

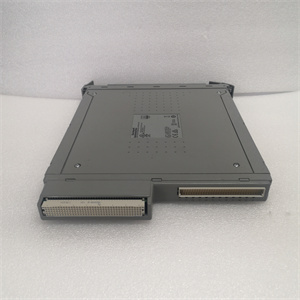

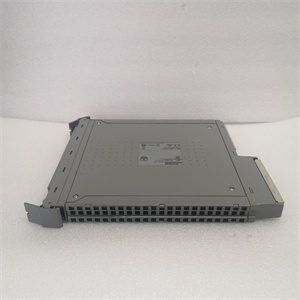

ICS TRIPLEX T8461C
Product Introduction
The ICS TRIPLEX T8461C is a high-performance digital output module designed for critical industrial control applications. It features a Triple Modular Redundant (TMR) architecture, ensuring unparalleled reliability and fault tolerance. This module is ideal for applications requiring precise and reliable digital outputs, such as process control, safety systems, and power generation.
Core Advantages and Technical Highlights
High Reliability and Fault Tolerance
The ICS TRIPLEX T8461C employs a TMR architecture, providing continuous operation even if one channel fails. It features redundant components and comprehensive diagnostics for rapid fault detection and isolation.
Advanced Signal Processing
This module supports 40 digital output channels, each capable of handling up to 0.75 A continuously. It features a wide operating voltage range (20 to 32 V DC) and supports output voltages from 18 to 60 V DC, ensuring compatibility with various industrial devices.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T8461C can operate reliably in extreme temperatures (-40°C to +70°C) and high humidity (5% to 95% RH non-condensing). Its compact design and lightweight construction (1.32 kg) make it easy to install and integrate into existing systems.
Comprehensive Diagnostics and Safety Features
The module includes built-in diagnostics and monitoring capabilities, enabling real-time fault detection and alerting. It supports hot-swappable modules and automatic fault handling, minimizing downtime.

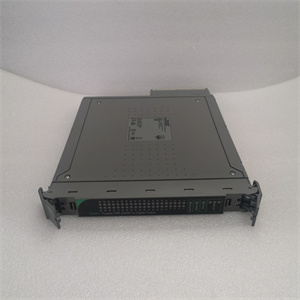

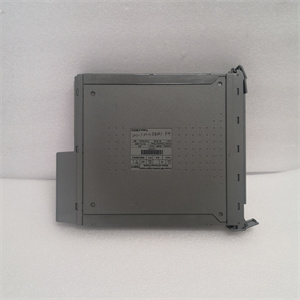

ICS TRIPLEX T8461C
Typical Application Scenarios
The ICS TRIPLEX T8461C is widely used in industries where high reliability and safety are paramount, such as:
-
Process Control: Ensuring precise control of industrial processes.
-
Safety Systems: Managing critical safety functions in hazardous environments.
-
Power Generation: Monitoring and controlling power systems to ensure stability.
-
Transportation: Ensuring reliable operation in transportation control systems.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T8449: A valve monitor module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8461C, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 to 32 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8461C. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
