Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8480C |
| Manufacturer | ICS TRIPLEX |
| Product category | Analog Output Module |
| Operating Voltage | 24 V DC |
| Number of Channels | 8 |
| Channel Type | Triple Modular Redundant (TMR) |
| Output Range | 0 to 10V or 4 to 20mA |
| Resolution | 12-bit |
| Accuracy | ±0.25% of full scale |
| Linearity | ±0.1% of full scale |
| Noise | 10 µVrms |
| Transient Response | 100 ms to 90% of final value |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -55°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | IEC 61508 SIL 3, UL, CE |
| Dimensions | 2.2 cm x 12.4 cm x 12.6 cm |
| Weight | 1.1 kg |

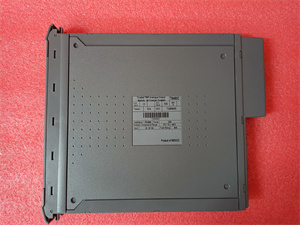

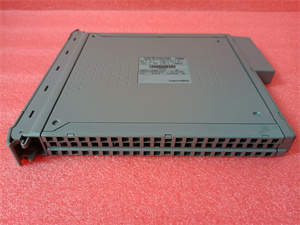

ICS TRIPLEX T8480C
Product Introduction
The ICS TRIPLEX T8480C is a high-performance analog output module designed for critical industrial control applications. It features a Triple Modular Redundant (TMR) architecture, ensuring unparalleled fault tolerance and reliability. This module is ideal for applications where safety and uptime are critical, such as process control, safety instrumented systems (SIS), turbomachinery, power generation, and transportation.
Core Advantages and Technical Highlights
High Reliability and Fault Tolerance
The ICS TRIPLEX T8480C employs a TMR architecture, with three independent channels operating in parallel. This design ensures continuous operation even if one channel fails, maximizing system reliability and safety.
Advanced Signal Processing
This module provides 8 isolated analog output channels with 12-bit resolution. It supports output ranges of 0 to 10V or 4 to 20mA, ensuring precise control and monitoring of industrial processes.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T8480C can operate reliably in extreme temperatures (-40°C to +70°C) and high humidity (5% to 95% non-condensing). Its compact design and standard DIN rail compatibility make it easy to install and integrate into existing systems.
Comprehensive Diagnostics and Safety Features
The module features comprehensive diagnostics and self-test capabilities, enabling real-time fault detection and alerting. It is certified to IEC 61508 SIL 3, ensuring its excellent performance in achieving high safety and reliability.

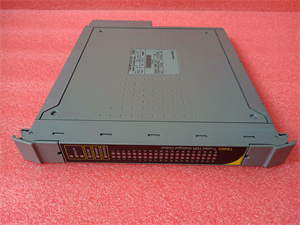

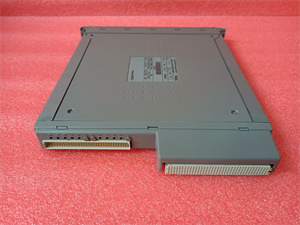

ICS TRIPLEX T8480C
Typical Application Scenarios
The ICS TRIPLEX T8480C is widely used in industries where high reliability and safety are paramount, such as:
-
Process Control: Ensuring precise control of industrial processes.
-
Safety Instrumented Systems (SIS): Managing critical safety functions.
-
Turbomachinery: Controlling turbines to prevent damage and ensure efficient operation.
-
Power Generation: Monitoring and controlling power systems to ensure stability.
-
Transportation: Ensuring reliable operation in transportation control systems.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8461: A digital output module with high precision and reliability.
-
ICS TRIPLEX T8449: A valve monitor module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8480C, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8480C. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8480C is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
