Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T9481 |
| Manufacturer | ICS TRIPLEX (now part of Rockwell Automation) |
| Product category | Analog Output Module |
| Operating Voltage | 24 V DC |
| Output Voltage Range | ±10 V, 0-10 V |
| Output Current Range | 4-20 mA |
| Resolution | 0.1% ± 2 LSBs |
| Accuracy | ±0.1% |
| Communication Interface | Modbus RTU over RS-485 |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 96 mm x 48 mm x 89 mm |
| Weight | 150 g |

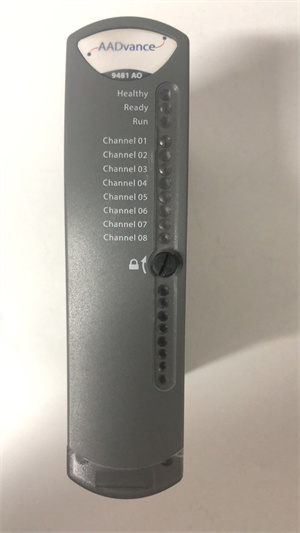

ICS TRIPLEX T9481
Product Introduction
The ICS TRIPLEX T9481 is a high-precision analog output module designed for industrial automation and process control applications. It is part of the ICS TRIPLEX AADvance series, known for its robustness and reliability in critical industrial environments. This module converts digital signals from the control system into precise analog signals, driving the actions of field devices such as valves, motors, and regulators. Its high precision, reliability, and safety features make it suitable for a wide range of applications, including those in harsh environments.
Core Advantages and Technical Highlights
High Precision and Reliability
The ICS TRIPLEX T9481 offers high-precision analog output with a resolution of 0.1% ± 2 LSBs and an accuracy of ±0.1%. This level of precision ensures accurate control of industrial processes, making it ideal for demanding applications.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T9481 is designed to operate reliably in extreme conditions. It features a wide operating temperature range of -20°C to +60°C and is suitable for both indoor and outdoor installations. The module is also designed with electrical isolation to protect systems and equipment, enhancing overall system safety.
Advanced Communication Capabilities
The module supports Modbus RTU communication over RS-485, facilitating seamless integration with existing control systems. This feature enhances the efficiency and flexibility of automation setups, allowing for real-time data acquisition and visualization.
Compact and Space-Efficient
With dimensions of 96 mm x 48 mm x 89 mm and a weight of only 150 g, the ICS TRIPLEX T9481 is compact and lightweight. Its small footprint makes it easy to install in confined spaces, contributing to streamlined production lines and efficient use of space.
Diagnostic and Configuration Features
The ICS TRIPLEX T9481 includes diagnostic functions that can detect the status of output signals and the operational status of the module. It also supports configurable output signal types and ranges, allowing users to tailor the module to their specific needs.
ICS TRIPLEX T9481
Typical Application Scenarios
The ICS TRIPLEX T9481 is widely used across various industrial sectors due to its versatility and reliability. In the oil & gas and chemical processing industries, its robust design and wide operating range make it suitable for controlling critical processes in harsh environments. Additionally, it is used in manufacturing for precise control of production processes, ensuring consistent product quality. The module is also utilized in HVAC systems, power generation, and other industries where high-precision control is required.
Related Model Recommendations
-
ICS TRIPLEX T9432: An I/O processing module with up to 64 I/O points, suitable for applications requiring extensive input/output capabilities.
-
ICS TRIPLEX T9451: An advanced control module with a processing speed of 2 ms per instruction and 2 MB memory, ideal for complex automation tasks.
-
ICS TRIPLEX T9100: A processor backplane module, providing a platform for integrating multiple ICS TRIPLEX modules.
-
ICS TRIPLEX T9300: An I/O backplane module, designed for expanding the system’s input/output capabilities.
-
ICS TRIPLEX T9801: An analog output module with high precision and reliability, suitable for applications requiring multiple analog outputs.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T9481, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T9481. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance, and ensure that spare parts are readily available to minimize downtime.
