Description
System Architecture & Operational Principle
The KEBA CU312/E is a PLC-based industrial robot controller designed for high-precision motion control in automation systems. It serves as the central processing unit (CPU) in KEBA’s control architecture, interfacing with:
-
Upstream: Human-Machine Interfaces (HMIs) or SCADA systems for operator input and monitoring.
-
Downstream: Servo drives (e.g., KEBA P302, P603) and field devices (sensors, actuators) via digital/analog I/O or fieldbuses (e.g., CANopen, EtherCAT).
Core Functional Blocks
-
Processing Unit: A high-performance CPU executes motion control algorithms (e.g., PID, trajectory planning) and logic programs (e.g., ladder logic, structured text).
-
Motion Control Module: Manages axis synchronization, interpolation (linear/circular), and position/velocity control for up to 32 axes.
-
I/O Interface: Handles digital (24 V DC) and analog (±10 V) signals for sensor feedback and actuator control.
-
Communication Interface: Supports fieldbuses (CANopen, EtherCAT) for integration with servo drives and other devices.
Operational Workflow
-
Input Reception: The controller receives commands from the HMI (e.g., “move robot arm to position X”) or SCADA system.
-
Logic Execution: The CPU executes the programmed logic (e.g., checking safety interlocks, calculating trajectory).
-
Motion Control: The motion control module sends commands to servo drives to adjust motor speed/torque, ensuring precise axis movement.
-
Feedback Processing: Sensors (e.g., encoders) send position/velocity data back to the controller for closed-loop control.
-
Output Transmission: The controller sends status updates to the HMI or SCADA system (e.g., “axis reached target position”).

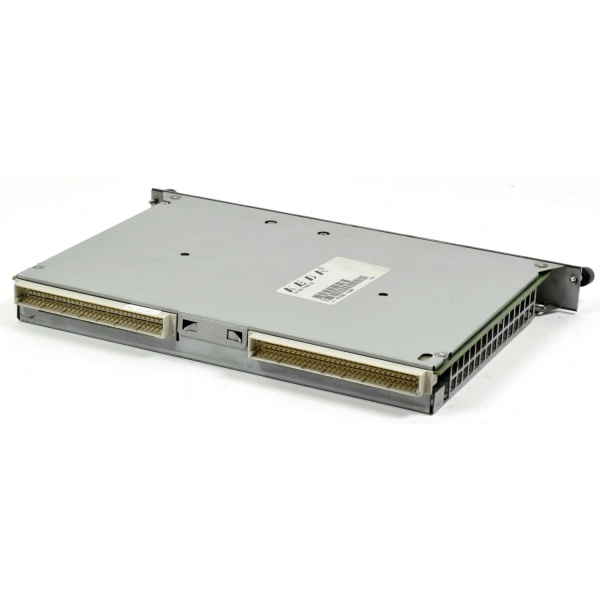

KEBA CU312/E
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Processor
|
32-bit RISC CPU (e.g., ARM Cortex-A9)
|
|
Axis Capacity
|
Up to 32 axes (synchronized)
|
|
Position Loop Bandwidth
|
1 kHz (max)
|
|
Input Voltage
|
24 V DC (±10%)
|
|
Operating Temperature
|
-10°C to +60°C (ambient)
|
|
Communication
|
CANopen (DS301/DS402), EtherCAT (optional)
|
|
I/O Channels
|
16 digital inputs (24 V DC), 16 digital outputs (24 V DC), 4 analog inputs (±10 V)
|
|
Memory
|
512 MB DDR3 RAM, 4 GB Flash (program storage)
|
|
Dimensions
|
200 mm × 150 mm × 50 mm (approx.)
|
|
Weight
|
~1.5 kg (3.3 lbs)
|
Customer Value & Operational Benefits
1. High Precision & Repeatability
The CU312/E’s 1 kHz position loop bandwidth and advanced motion control algorithms enable micrometer-level precision (±0.01 mm) for robotic arms. This is critical for applications like electronics assembly (placing SMD components) or precision machining (drilling holes in metal parts).
2. Flexible Integration
Support for multiple fieldbuses (CANopen, EtherCAT) allows the CU312/E to integrate with third-party servo drives (e.g., Siemens, Bosch Rexroth) and existing automation systems. This flexibility reduces the need for costly system overhauls.
3. Reduced Downtime
The controller’s hot-swap capability (for I/O modules) and self-diagnostic tools (e.g., LED status indicators, fault logs) minimize downtime. For example, if a servo drive fails, the controller can isolate the fault and alert maintenance teams via the HMI.
4. Scalability
The CU312/E’s modular design allows users to add expansion modules (e.g., additional I/O, communication interfaces) as system requirements grow. This scalability is ideal for small businesses or contractors who need to upgrade their systems over time.

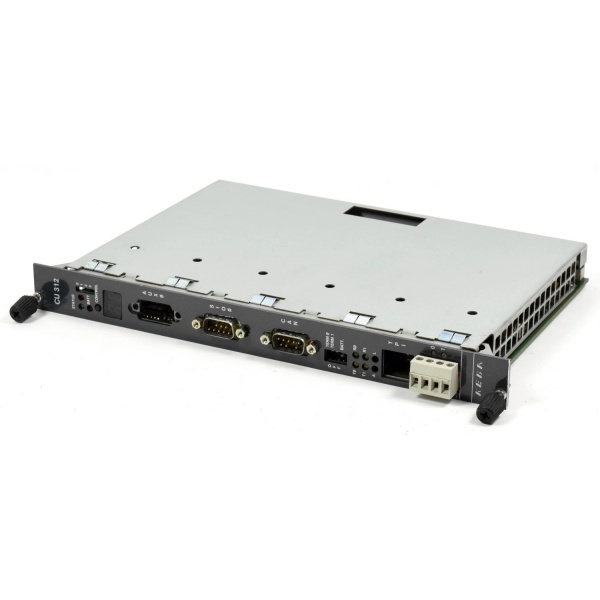

KEBA CU312/E
Field Engineer’s Notes (From the Trenches)
When installing the CU312/E, always verify the power supply voltage (24 V DC ±10%) with a multimeter—low voltage can cause the controller to reset intermittently. I once saw a technician install the controller with a 12 V DC power supply, leading to hours of downtime.Check the fieldbus termination (for CANopen/EtherCAT)—improper termination can cause communication errors. Use a fieldbus analyzer (e.g., Vector CANalyzer) to verify signal integrity.Update the firmware (via KEBA’s website) after installation—firmware updates often fix bugs and improve compatibility with new devices. I recommend checking for updates every 6 months, especially if you’re using the controller for critical applications.
Real-World Applications
1. Electronics Assembly
A consumer electronics manufacturer uses the CU312/E to control a 6-axis robotic arm for placing SMD components on PCBs. The controller’s high precision (±0.01 mm) ensures that components are placed accurately, reducing defect rates by 30%.
2. Precision Machining
A machine shop uses the CU312/E to control a CNC milling machine. The controller’s 1 kHz position loop bandwidth enables fast, precise movements (up to 1000 mm/min) for drilling holes in aluminum parts.
3. Packaging Automation
A food packaging company uses the CU312/E to control a robotic arm for palletizing boxes. The controller’s flexible integration with conveyor belts and sensors ensures that boxes are stacked efficiently, reducing labor costs by 25%.
