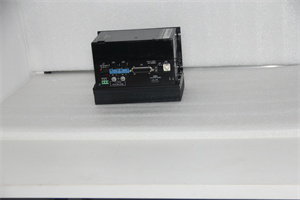

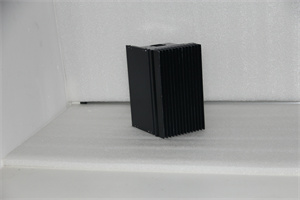

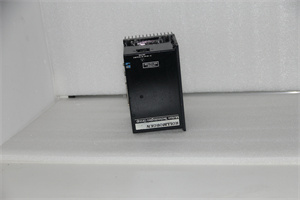

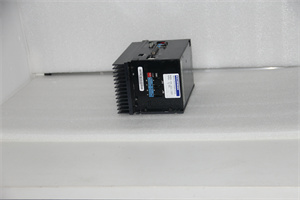

Kollmorgen BJRL-20012-110001

High-Speed Loop Bandwidth: The BJRL-20012-110001 features a speed loop bandwidth of 800 Hz, enabling rapid response to control signals and enhancing system dynamic performance.
High-Resolution Feedback: The drive provides 24-bit high-resolution feedback, ensuring precise position control. Its high-performance current loop bandwidth of 3-5 kHz further improves system response speed and accuracy.
Wide Power Range and Compatibility: Suitable for operation at 35-130 VAC, with a rated current range of 6 A continuous and 12 A peak. This wide power range allows for flexible deployment across different machines.
Safety and Reliability: The drive complies with multiple international safety standards, such as UL 508C, CE, EN50178, and EN61800-C, ensuring reliable and safe operation.
Easy to Use and Maintain: The drive features an easy-to-use graphical user interface (GUI) and comprehensive fault protection, reducing engineering and support time.
Get a Quote
Manufacturer:
Part number: Kollmorgen BJRL-20012-110001
Our extensive catalogue, including : Kollmorgen BJRL-20012-110001 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model BJRL-20012-110001
Manufacturer Kollmorgen
Product Category Servo Drive
Operating Voltage 35-130 VAC
Frequency Range 50-60 Hz
Continuous Current 6 A
Peak Current 12 A (2 sec)
Feedback Options Resolver, Encoder (HIPERFACE DSL, EnDat 2.2)
Communication Protocols CANopen, EtherCAT, EtherNet/IP
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -20°C to 70°C
Humidity Range Up to 90% non-condensing
Dimensions (L×W×H) 249 mm × 163 mm × 83.3 mm
Weight 2 kg
Certifications CE, UL
BJRL-20012-110001

BJRL-20012-110001

Product Introduction

The Kollmorgen BJRL-20012-110001 is a high-performance servo drive designed for precision motion control applications. It is part of the Goldline Smart Drives series and offers advanced control capabilities for various industrial automation systems.

Core Advantages and Technical Highlights

High-Speed Loop Bandwidth: The BJRL-20012-110001 features a speed loop bandwidth of 800 Hz, enabling rapid response to control signals and enhancing system dynamic performance.
High-Resolution Feedback: The drive provides 24-bit high-resolution feedback, ensuring precise position control. Its high-performance current loop bandwidth of 3-5 kHz further improves system response speed and accuracy.
Wide Power Range and Compatibility: Suitable for operation at 35-130 VAC, with a rated current range of 6 A continuous and 12 A peak. This wide power range allows for flexible deployment across different machines.
Safety and Reliability: The drive complies with multiple international safety standards, such as UL 508C, CE, EN50178, and EN61800-C, ensuring reliable and safe operation.
Easy to Use and Maintain: The drive features an easy-to-use graphical user interface (GUI) and comprehensive fault protection, reducing engineering and support time.

BJRL-20012-110001

BJRL-20012-110001

Typical Application Scenarios

The Kollmorgen BJRL-20012-110001 is widely used in various industrial sectors, including:
  • Machine Tools: For precise motion control in CNC machines.
  • Packaging Machinery: To control the movement of packaging lines.
  • Material Handling Systems: For efficient operation of conveyor systems and automated guided vehicles (AGVs).
  • Robotics: To drive motors in robotic arms and other automation equipment.

Related Model Recommendations

  • AKD Series: A higher power variant suitable for heavy-duty applications requiring more torque.
  • S21260-SRS: A similar model with slightly different specifications, offering additional configuration options.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Follow the installation manual carefully to ensure proper grounding and connection. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the drive for signs of damage or wear. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.

Service and Guarantee Commitment

The Kollmorgen BJRL-20012-110001 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Kollmorgen offers technical support and service to assist with installation, troubleshooting, and maintenance.
