Networked Control: Optimized for networked systems with adaptive algorithms to mitigate delays and jitter, ensuring stable performance in Ethernet-based setups.
Energy Efficiency: Regenerative braking reduces energy consumption by up to 25%, while a fanless design minimizes maintenance.
Flexible Programming: Supports PLCopen motion profiles and custom code via Kollmorgen Automation Suite.
Safety Compliance: Built-in STO (Safe Torque Off) meets SIL 3/PL e safety standards.

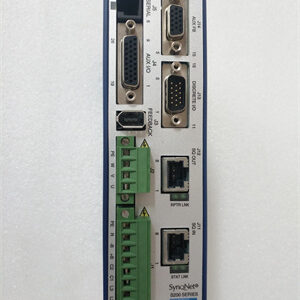

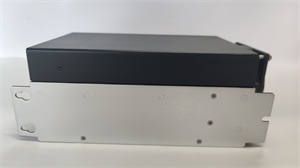

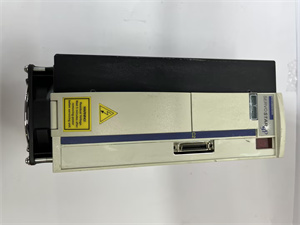

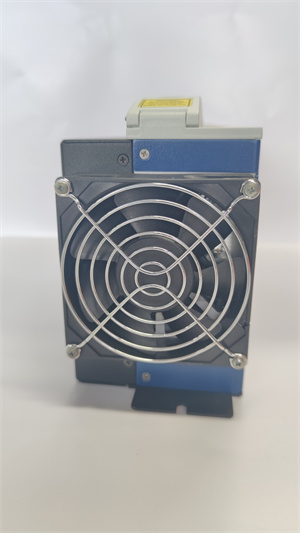

The Kollmorgen CP310250is a high-performance servo drive designed for advanced motion control in industrial automation systems, combining precision, reliability, and flexibility.
1. Product Description
The CP310250 belongs to Kollmorgen’s CP Series, engineered to address complex control requirements such as multi-tasking real-time systems and networked control environments. Its core functions include closed-loop velocity/position control, EtherCAT connectivity, and regenerative braking, ensuring seamless integration with Kollmorgen motors and third-party systems. This drive supports applications requiring rapid acceleration/deceleration and adaptive control strategies.
2. Product Parameters
Parameter
Specification
Input Voltage
110–230 VAC, 1/3-phase
Power Rating
3.0 kW
Output Current
10 A continuous, 30 A peak
Control Interface
EtherCAT, RS232/485, analog/digital I/O
Feedback Compatibility
Encoders (BiSS, EnDat, Hiperface)
Protection Features
Overload, short-circuit, overtemperature
Operating Temperature
-10°C to +50°C
Dimensions (W×H×D)
150 × 200 × 120 mm
3. Advantages and Features
Networked Control: Optimized for networked systems with adaptive algorithms to mitigate delays and jitter, ensuring stable performance in Ethernet-based setups.
Energy Efficiency: Regenerative braking reduces energy consumption by up to 25%, while a fanless design minimizes maintenance.
Flexible Programming: Supports PLCopen motion profiles and custom code via Kollmorgen Automation Suite.
Safety Compliance: Built-in STO (Safe Torque Off) meets SIL 3/PL e safety standards.
4. Application Areas and Use Cases
Manufacturing: Powers robotic arms and conveyor systems in automotive assembly lines.
Semiconductor: Controls wafer handling robots with sub-millimeter precision.
Packaging: Synchronizes multi-axis motion for high-speed labeling machines, improving throughput by 15%.
Case Study: A logistics company integrated the CP310250 into their sorting system, achieving 99.8% motion accuracy and reducing downtime by 20%.
5. Competitor Comparison
Response Time: 50 μs EtherCAT cycle time for faster system responsiveness.
Power Density: 20% higher power output compared to similarly sized drives.
Cost of Ownership: Extended lifespan (100,000+ hours MTBF) and modular design lower long-term costs.
6. Selection Recommendations
Power Requirements: Ensure voltage stability and adequate cooling for continuous operation.
Network Compatibility: Verify EtherCAT master compatibility and available bandwidth.
Safety: Pair with safety-rated controllers for applications requiring SIL 3 compliance.
7. Precautions
Mounting: Secure vertically in well-ventilated enclosures to prevent overheating.
Commissioning: Calibrate feedback devices and tune PID parameters using Kollmorgen’s software tools.
EMI Protection: Use shielded cables and proper grounding to minimize interference.
声明: Shanxi Xinyeda International Trade Co., Ltd. specializes in Kollmorgen automation solutions, including the CP310250 servo drive. Visit www.xydcontrol.com for technical support or contact us for customized configurations.
