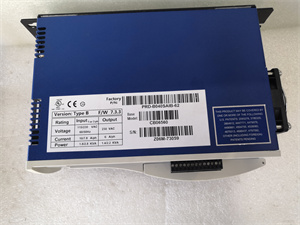

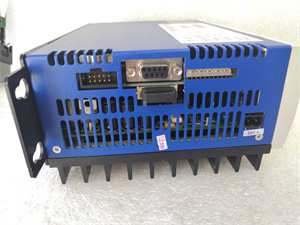

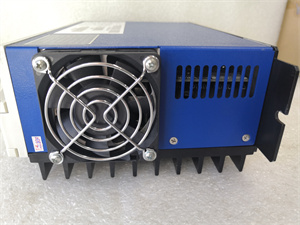

The Kollmorgen CB06560is a compact, high-efficiency servo drive designed for precision motion control in industrial automation systems.
1. Product Description
The CB06560 is part of Kollmorgen’s C-Series, engineered to deliver reliable performance in space-constrained environments. Its core functions include closed-loop velocity and position control, EtherCAT connectivity, and regenerative braking. Ideal for applications requiring rapid acceleration/deceleration, this drive supports seamless integration with Kollmorgen motors and third-party systems.
2. Product Parameters
Parameter
Specification
Input Voltage
100–240 VAC, 1/3-phase
Power Rating
2.2 kW
Output Current
10 A continuous, 30 A peak
Control Interface
EtherCAT, analog/digital I/O
Feedback Devices
Absolute encoders
Protection Features
Overload, short-circuit, overtemperature
Operating Temperature
-10°C to +50°C
Dimensions (W×H×D)
100 × 150 × 120 mm
3. Advantages and Features
Space-Saving Design: 30% smaller than traditional drives without compromising power.
Energy Efficiency: Reduces energy costs by up to 25% through intelligent power management.
High Precision: ±0.05% velocity accuracy and 1 μm positioning resolution.
Flexible Programming: Supports PLCopen motion profiles and custom code via Kollmorgen Automation Suite.
4. Application Areas and Use Cases
Medical Equipment: Controls syringe pumps and robotic surgery systems.
Semiconductor Manufacturing: Powers wafer handling robots with sub-millimeter precision.
Textile Machinery: Synchronizes multi-axis motion in high-speed looms, improving production efficiency by 20%.
Case Study: A medical device manufacturer integrated the CB06560 into their diagnostic equipment, achieving 99.9% motion repeatability and reducing system downtime by 15%.
5. Competitor Comparison
Footprint: 20% smaller than comparable drives in its class.
Response Time: 50 μs EtherCAT cycle time for faster system responsiveness.
Cost of Ownership: Lower maintenance costs due to fanless design and extended lifespan (100,000+ hours MTBF).
6. Selection Recommendations
Power Requirements: Ensure adequate voltage stability for 3-phase applications.
Environment: Use IP65-rated enclosures for washdown environments.
Network Compatibility: Verify EtherCAT compatibility with your master controller.
7. Precautions
Mounting: Securely fasten the drive to prevent vibrations.
Heat Management: Allow 5 cm clearance for airflow in enclosed systems.
Safety: Implement emergency stop circuits as per ISO 13849-1 Category 3.
声明: Shanxi Xinyeda International Trade Co., Ltd. offers comprehensive support for Kollmorgen products, including the CB06560 servo drive. Visit www.xydcontrol.com for technical details or contact us for customized solutions.
