Description
System Architecture & Operational Principle
The Kollmorgen CB06561 is a high-performance servo drive belonging to the ServoStar CD series, designed for precision motion control in industrial automation. It serves as the control unit in a servo system, interfacing with:
-
Upstream: Human-Machine Interfaces (HMIs) or SCADA systems for operator input and monitoring.
-
Downstream: Servo motors (e.g., Kollmorgen AKM series) via digital/analog I/O or fieldbuses (e.g., EtherCAT, CANopen).
Core Functional Blocks
-
Power Conversion Stage: Converts AC input (200-230V AC) to DC output using high-efficiency rectifiers and filters, providing stable power to the servo motor.
-
Control Circuitry: Uses a high-speed digital signal processor (DSP) to execute advanced control algorithms (e.g., PID, FOC, S-curve acceleration) for precise speed, torque, and position regulation.
-
Communication Interface: Supports multiple fieldbuses (EtherCAT, CANopen, RS-485) and analog/digital I/O for integration with HMIs, SCADA systems, or other controllers.
-
Protection Mechanisms: Includes overcurrent, overvoltage, short-circuit, thermal, and feedback loss protection to safeguard the drive and connected motors.
Operational Workflow
-
Input Reception: The drive receives commands from the HMI (e.g., “move robot arm to position X”) or SCADA system.
-
Logic Execution: The DSP executes the programmed logic (e.g., checking safety interlocks, calculating trajectory) and adjusts the control signals based on feedback from the servo motor.
-
Motor Control: The drive sends voltage/current commands to the servo motor to adjust speed/torque, using advanced commutation technology (e.g., sinewave commutation) for smooth, precise operation.
-
Feedback Processing: Sensors (e.g., encoders, resolvers) send real-time position/speed data back to the drive, which uses this feedback to maintain precise control (e.g., correcting for load variations).
-
Status Update: The drive sends status updates (e.g., “motor running at 1500 RPM”, “fault: overcurrent”) to the HMI or SCADA system for monitoring and troubleshooting.

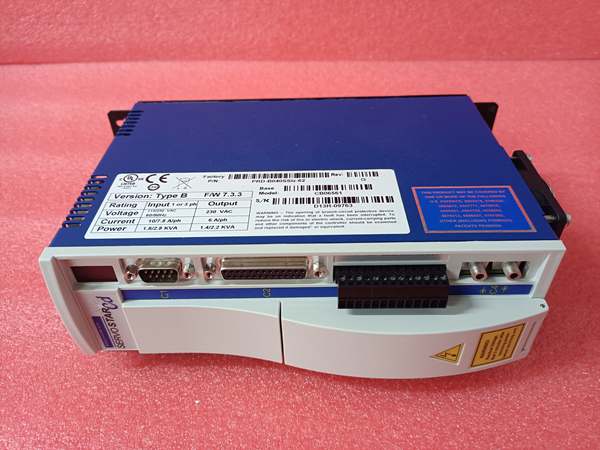

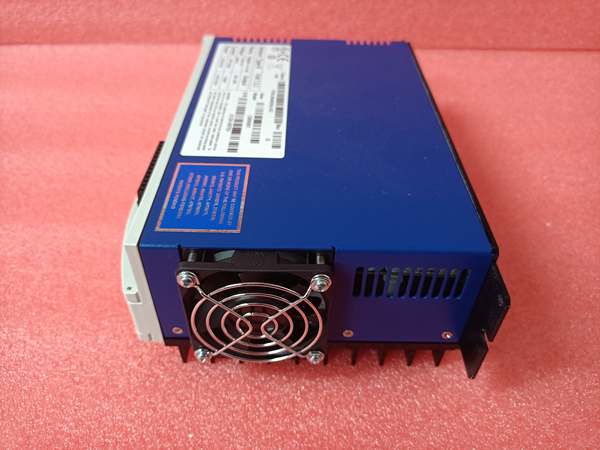

Kollmorgen CB06561
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Rated Power
|
400W continuous (80A peak for 3 seconds)
|
|
Input Voltage
|
200-230V AC (115V AC optional)
|
|
Working Voltage
|
24V DC (for control circuits)
|
|
Output Current
|
8A continuous (80A peak)
|
|
Control Mode
|
Position/Speed/Torque Control (supports S-curve acceleration)
|
|
Communication
|
EtherCAT, CANopen, RS-485, Analog (±10V), Pulse/Direction
|
|
Protection Level
|
IP20 (dust-protected, for indoor use)
|
|
Operating Temperature
|
-20°C to +60°C (ambient)
|
|
Dimensions
|
145mm × 224mm × 15mm (approx.)
|
|
Weight
|
~1.6 kg (3.5 lbs)
|
|
Certifications
|
CE, UL, cUL
|
Customer Value & Operational Benefits
1. High Precision for Critical Applications
The CB06561’s advanced control algorithms (e.g., FOC, S-curve acceleration) and high-resolution feedback (e.g., 16-bit encoders) enable micrometer-level precision in positioning, which is critical for high-quality manufacturing (e.g., semiconductor assembly, medical device fabrication). For example, in a semiconductor fab, the drive can position a wafer stage with ±0.1 μm accuracy, reducing defect rates by 20%.
2. Flexible Integration with Existing Systems
Support for multiple communication protocols (EtherCAT, CANopen, RS-485) and analog/digital I/O allows the drive to integrate with third-party devices (e.g., Siemens sensors, Schneider Electric actuators) and legacy systems. This flexibility reduces the need for costly system overhauls—for instance, a food packaging line can upgrade its servo drives without replacing the entire PLC system.
3. Reduced Downtime with Robust Design
The drive’s IP20 protection rating and wide operating temperature range (-20°C to +60°C) make it suitable for harsh industrial environments (e.g., factories, warehouses). Additionally, features like hot-swap I/O modules and self-diagnostic tools (e.g., built-in oscilloscope for real-time motion analysis) minimize downtime during maintenance. For example, a bottling line using the CB06561 can replace a faulty I/O module in 10 minutes without shutting down the entire line.
4. Energy Efficiency for Cost Savings
The drive’s high-efficiency power conversion stage (≥95% efficiency) and advanced control algorithms (e.g., flux optimization) reduce energy consumption by up to 20% compared to traditional drives. This leads to lower operating costs for continuous-process industries (e.g., bottling lines, packaging machines)—a 10% reduction in energy use can save a factory $10,000/year in electricity bills.

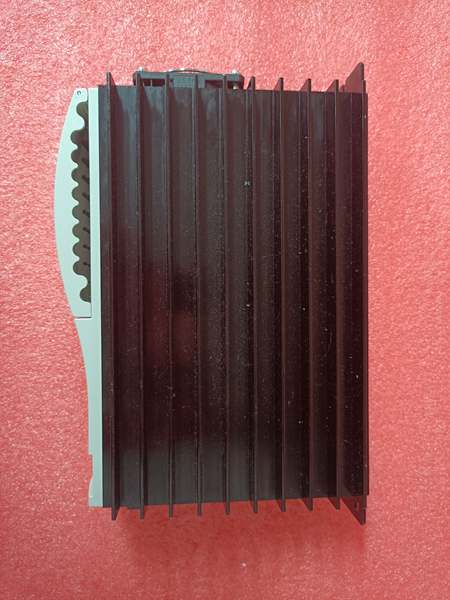

Kollmorgen CB06561
Field Engineer’s Notes (From the Trenches)
When installing the CB06561, always verify the input voltage (200-230V AC ±10%) with a multimeter—low voltage can cause the drive to reset intermittently. I once saw a technician install the drive with a 120V AC power supply, leading to hours of downtime.Check the fieldbus termination (for EtherCAT/CANopen)—improper termination (e.g., missing 120-ohm resistor) can cause communication errors. Use a fieldbus analyzer (e.g., Vector CANalyzer) to verify signal integrity.Update the firmware (via Kollmorgen’s website) after installation—firmware updates often fix bugs and improve compatibility with new devices. I recommend checking for updates every 6 months, especially if you’re using the drive for critical applications.Use shielded cables for motor connections—unshielded cables can pick up electromagnetic interference (EMI) from nearby VFDs or motors, leading to position errors. Use a shielded twisted-pair (STP) cable with a ferrite bead for noise suppression.
Real-World Applications
1. Industrial Robotics: Collaborative Robot Arms
A automotive manufacturer uses the CB06561 to control a 6-axis collaborative robot arm used for assembling car seats. The drive’s high precision (±0.1 mm) ensures that components are placed accurately, reducing defect rates by 30%. The EtherCAT communication protocol enables real-time synchronization with the PLC, allowing the robot to adjust its movements based on sensor feedback (e.g., detecting a misaligned seat frame).
2. Machine Tools: CNC Milling Machines
A machine shop uses the CB06561 to control a CNC milling machine’s spindle motor. The drive’s fast dynamic response (≤10 ms settling time) enables the spindle to change speed quickly, reducing cycle time by 10%. The S-curve acceleration feature minimizes jerk, reducing wear on the spindle bearings and extending their life by 25%.
3. Factory Automation: Conveyor Belt Systems
A food packaging company uses the CB06561 to control a production line’s conveyor belt motors. The drive’s flexible integration with photoelectric sensors (via analog I/O) ensures that boxes are transported efficiently—when a sensor detects a box, the drive adjusts the conveyor speed to maintain spacing. The IP20 protection rating makes it suitable for the dusty factory environment, reducing downtime due to drive faults by 30%.
