Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | CR06200-000000 |
| Manufacturer | Kollmorgen |
| Product Category | Servo Amplifier |
| Series | SERVOSTAR CD |
| Power Source | Single-phase or three-phase 110 – 230 VAC |
| Line Frequency | 47 – 63 Hz |
| Input Current Requirement | 10/7.8 A for single/three-phase |
| Single-Phase Power Output | 0.89/1.8 A at 115/230 V |
| Three-Phase Power Output | 1.1/2.8 A at 115/230 V |
| PWM Frequency | 8 kHz |
| Internal Heat Dissipation | 80 W |
| Storage Temperature Range | 0 to +70°C |
| Operating Temperature Range | +5 to +45°C |
| Humidity Range | up to 90% |
| Installation Altitude | Up to 1000 m/sea level with 5% derating |
| Feedback System | Single or multi-speed resolver |
| Installation Clearance | 12.7 mm sides, 63.5 mm top/bottom |

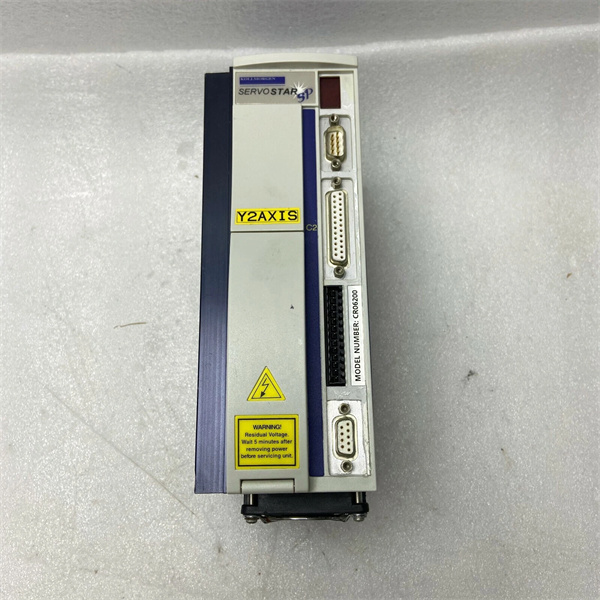

KOLLMORGEN CR06200-000000
Product Introduction
The Kollmorgen CR06200-000000 is a high-performance servo amplifier designed for industrial automation applications. It is part of the SERVOSTAR CD system and is specifically engineered to control AC synchronous servo motors developed by Danaher Motion. This amplifier offers exceptional control accuracy and dynamic response, making it suitable for demanding industrial applications.
Core Advantages and Technical Highlights
High Dynamic Response: The CR06200-000000 features a fast dynamic response, enabling quick and smooth motion control of servo systems.
Wide Power Range and Compatibility: The amplifier can operate with both single-phase and three-phase power sources, providing flexibility in power supply options.
Advanced Feedback System: Equipped with single or multi-speed resolver feedback, the amplifier ensures precise monitoring of motor shaft position.
Robust Design: The CR06200-000000 is designed to operate reliably in harsh industrial environments, with a wide operating temperature range and high humidity tolerance.
Safety Features: The amplifier includes overcurrent protection and thermal shutdown to prevent damage and ensure safe operation.

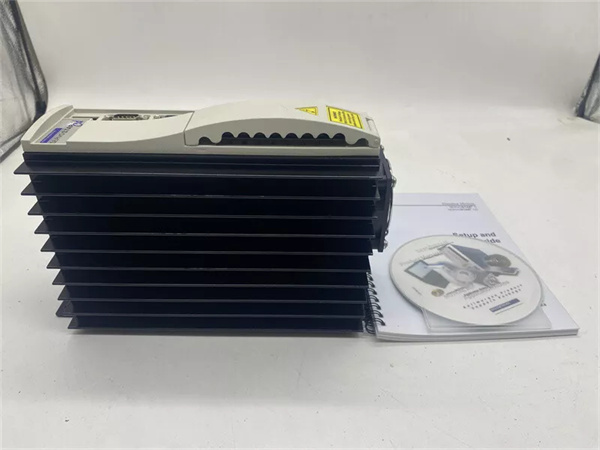

KOLLMORGEN CR06200-000000
Typical Application Scenarios
The Kollmorgen CR06200-000000 is widely used in various industrial sectors, including:
-
Machine Tools: For precise motion control in CNC machines.
-
Packaging Machinery: To control the movement of packaging lines.
-
Material Handling Systems: For efficient operation of conveyor systems and automated guided vehicles (AGVs).
-
Robotics: To drive motors in robotic arms and other automation equipment.
Related Model Recommendations
-
CR06250: A higher power variant within the SERVOSTAR CD series, suitable for applications requiring more torque.
-
CR06200-000001: A similar model with slightly different specifications, offering additional configuration options.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements. Maintain a minimum clearance of 12.7 mm at the sides and 63.5 mm at the top/bottom of the amplifier module. Follow the installation manual carefully to ensure proper grounding and connection.
Maintenance Suggestions: Regularly inspect the amplifier for signs of damage or wear. Clean the module periodically to remove dust and debris. If any issues are detected, consult the troubleshooting guide or contact a professional for assistance.
Service and Guarantee Commitment
The Kollmorgen CR06200-000000 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Kollmorgen offers technical support and service to assist with installation, troubleshooting, and maintenance.
