Description
System Architecture & Operational Principle
The KONGSBERG RCU501 is a high-performance remote controller unit designed for Purdue Model Level 2 (Basic Control) in marine and industrial automation systems. It serves as the intermediary between upstream control systems (e.g., shipboard SCADA, industrial PLCs) and downstream field devices (e.g., thrusters, sensors, valves).
Core Functional Blocks
-
Power Conversion: Converts 24 VDC input to stabilized power for internal components, with redundant power input and over-voltage protection.
-
Processing Unit: A PowerPC MPC8245 processor (400 MHz) executes real-time control algorithms (e.g., PID, dynamic positioning logic) and manages communication with field devices.
-
Communication Interfaces:
-
Dual Ethernet LAN: For high-speed communication with upstream systems (e.g., shipboard networks).
-
Dual RedundancyNet: For redundant RCU configuration, ensuring fail-safe operation.
-
32 Serial Lines: For connecting legacy devices (e.g., NMEA 0183 sensors) via RS232/RS422/RS485.
-
2 PROFIBUS Channels: For integrating with industrial PLCs (e.g., Siemens S7) and field devices.
-
2 CANBUS Channels: For connecting CANopen/DeviceNet devices (e.g., motor drives).
-
-
I/O Channels: 4 general-purpose digital inputs (DI) and 4 digital outputs (DO) for direct connection to binary sensors/actuators.
-
Protection Mechanisms: Includes overcurrent, overvoltage, short-circuit, and thermal protection, with an enhanced watchdog for fail-safe operation.
Operational Workflow
-
Command Reception: Receives motion commands (e.g., target position, speed) from upstream SCADA/PLC systems via Ethernet, PROFIBUS, or serial lines.
-
Algorithm Execution: The PowerPC processor executes control algorithms (e.g., dynamic positioning calculations) to determine the required actuator outputs.
-
Actuator Control: Sends commands to downstream devices (e.g., thrusters, valves) via CANBUS, PROFIBUS, or digital I/O.
-
Feedback Processing: Receives real-time data from sensors (e.g., GPS, gyrocompass) via serial lines or CANBUS, and adjusts control outputs to maintain accuracy.
-
Status Monitoring: Transmits operational data (e.g., temperature, current draw, fault codes) to upstream systems for diagnostics and logging.
The RCU501’s redundant design (dual Ethernet, dual RedundancyNet) and hot-swap capability minimize downtime in critical applications like dynamic positioning, where continuous control is essential.

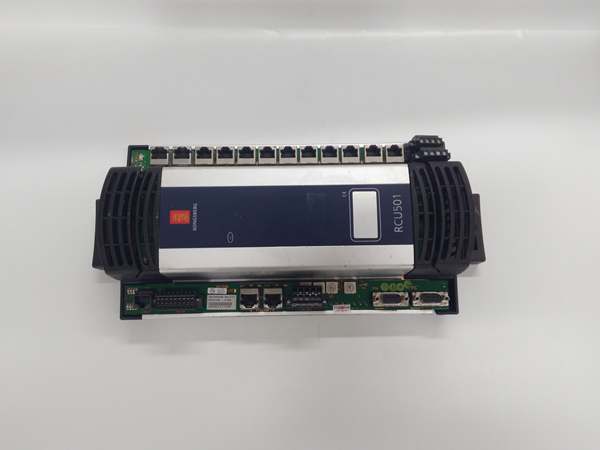

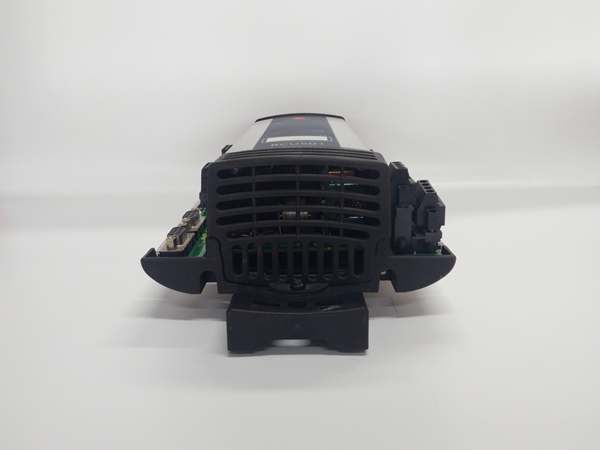

KONGSBERG RCU501
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Processor
|
PowerPC MPC8245 (400 MHz)
|
|
Memory
|
64 MB RAM (133 MHz), 16 MB Flash (application file)
|
|
Input Voltage
|
24 VDC (±30% tolerance)
|
|
Power Consumption
|
Max. 20 W
|
|
Communication
|
Dual Ethernet (10/100BASE-TX), Dual RedundancyNet, 32 serial lines (RS232/RS422/RS485), 2 PROFIBUS (12 Mb/s), 2 CANBUS (1 Mb/s)
|
|
I/O Channels
|
4 digital inputs (DI), 4 digital outputs (DO)
|
|
Protection Level
|
IP20 (dust-protected, indoor use)
|
|
Operating Temperature
|
-15°C to +70°C (ambient)
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Humidity
|
Up to 98% RH (non-condensing)
|
|
Dimensions
|
355 mm (H) × 158 mm (W) × 87 mm (D)
|
|
Weight
|
1.35 kg
|
|
Certifications
|
DNV, ABS, TÜV Rheinland, CE, Ex nA II T4 (Zone 2)
|
Customer Value & Operational Benefits
1. High Reliability for Critical Marine Applications
The RCU501’s redundant design (dual Ethernet, dual RedundancyNet) and hot-swap capability ensure continuous operation in dynamic positioning systems, where a single point of failure could lead to loss of vessel control. The Ex nA II T4 (Zone 2) certification allows safe use in hazardous marine environments (e.g., near fuel tanks).
2. Flexible Integration with Legacy and Modern Systems
With support for multiple communication protocols (Ethernet, PROFIBUS, CANBUS, serial), the RCU501 integrates seamlessly with both legacy devices (e.g., NMEA 0183 sensors) and modern systems (e.g., shipboard SCADA). This flexibility reduces the need for costly system overhauls when upgrading marine automation systems.
3. Reduced Downtime with Built-In Diagnostics
The RCU501 features extended Built-in Self-Test (BIST) for computer diagnostics and fault identification during start-up and runtime. The enhanced watchdog with fail-safe function and system status output minimize the risk of unexpected shutdowns, reducing downtime in critical applications like thruster control.
4. Energy Efficiency for Sustainable Operations
The RCU501’s low power consumption (max. 20 W) and efficient power conversion reduce energy costs for shipboard systems, which is particularly important for offshore vessels where power is limited.

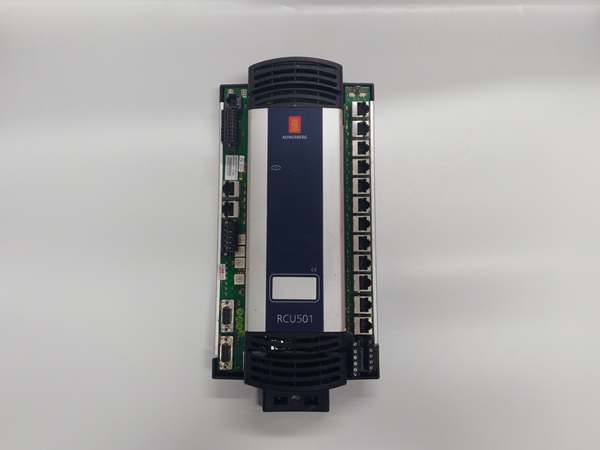

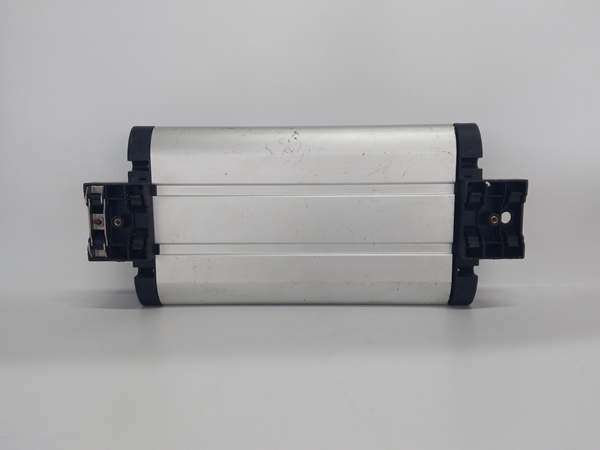

KONGSBERG RCU501
Field Engineer’s Notes (From the Trenches)
When installing the RCU501, always verify the 24 VDC input voltage with a True-RMS multimeter—low voltage can cause the drive to reset intermittently. I once saw a site use a 20 VDC supply without correction, leading to blown power capacitors.Route serial cables separately from power cables—parallel runs induce EMI, causing position jitter in dynamic positioning systems. Use shielded twisted-pair (STP) cables with 360° grounding for serial lines.Enable the enhanced watchdog in the RCU software—this ensures the system enters a fail-safe state if a fault occurs, preventing uncontrolled actuator movements.Update firmware annually—KONGSBERG’s marine automation software provides bug fixes and enhanced device compatibility (e.g., new GPS sensors). Use the RCU’s online firmware upgrade feature to minimize downtime.
Real-World Applications
1. Marine Dynamic Positioning (DP) Systems
A offshore supply vessel uses the RCU501 to control its dynamic positioning system, which keeps the vessel in a fixed position relative to an offshore platform. The RCU501 receives GPS and gyrocompass data from sensors, calculates the required thruster outputs, and sends commands to the thrusters via CANBUS. The dual Ethernet LAN and RedundancyNet ensure continuous communication with the shipboard SCADA system, even if one network fails.
2. Industrial Process Automation (Chemical Plant)
A chemical plant uses the RCU501 to control a batch reactor, which requires precise temperature and pressure control. The RCU501 receives temperature data from RTDs via PROFIBUS, executes PID algorithms to adjust the heating/cooling valves, and sends commands to the valves via digital I/O. The 32 serial lines connect to legacy sensors (e.g., pH meters), while the Ethernet LAN communicates with the plant’s SCADA system for monitoring and logging.
