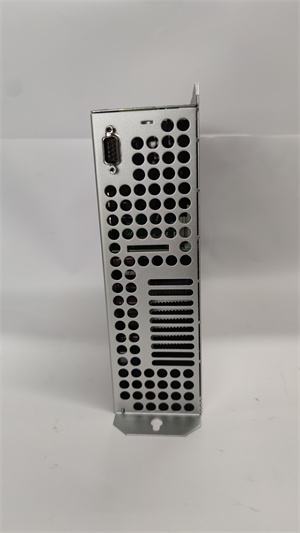

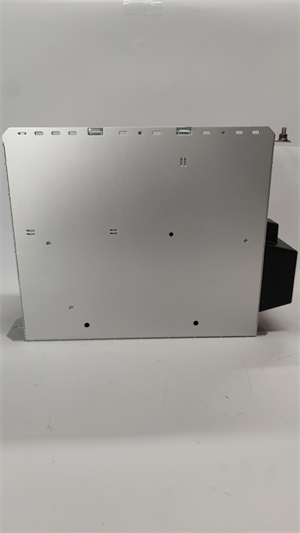

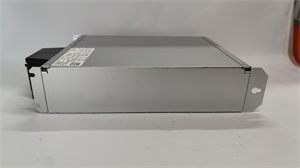

Name: KOLLMORGEN S70602-PBNANA - XINYEDA
Brand: Kollmorgen

Description

Kollmorgen S70602-PBNANA Product Specification

The Kollmorgen S70602-PBNANA is a high-performance servo drive controller designed for advanced motion control in industrial automation systems, combining precision, reliability, and flexibility.

1. Product Description

The S70602-PBNANA belongs to Kollmorgen’s S700 Series, engineered to address complex control requirements such as multi-axis synchronization and networked communication. Its core functions include closed-loop velocity/position control, EtherCAT/CANopen/Profibus connectivity, and regenerative braking, ensuring seamless integration with Kollmorgen motors and third-party systems. This drive supports applications requiring rapid acceleration/deceleration and adaptive control strategies.

2. Product Parameters

Parameter	Specification
Input Voltage	208–480 VAC, 3-phase
Power Rating	4.5 kVA
Output Current	6 A continuous, 18 A peak (5 seconds)
Control Interface	EtherCAT, CANopen, Profibus
Feedback Compatibility	Incremental encoders, resolvers, EnDat/BiSS
Safety Features	SIL CL 2, PL Cat 3 (STO)
Operating Temperature	0°C to +45°C
Dimensions (W×H×D)	150 × 200 × 120 mm

3. Advantages and Features

Networked Control: Optimized for EtherCAT and CANopen networks with 50 μs cycle time for real-time synchronization.
Energy Efficiency: Regenerative braking reduces energy consumption by up to 25%, while a fanless design minimizes maintenance.
Safety Compliance: Built-in STO meets SIL 2/PL e safety standards.
Flexible Programming: Supports custom motion profiles via Kollmorgen’s Drive GUI software.

4. Application Areas and Use Cases

Manufacturing: Powers robotic arms and conveyor systems in automotive assembly lines.
Semiconductor: Controls wafer handling robots with sub-millimeter precision.
Packaging: Synchronizes multi-axis motion for high-speed labeling machines, improving throughput by 15%.

Case Study: A logistics company integrated the S70602-PBNANA into their sorting system, achieving 99.8% motion accuracy and reducing downtime by 20%.

5. Competitor Comparison

Power Density: 20% higher power output compared to similarly sized drives.
Response Time: Faster EtherCAT cycle time for real-time performance.
Cost of Ownership: Extended lifespan (100,000+ hours MTBF) and modular design lower long-term costs.

6. Selection Recommendations

Voltage Stability: Ensure input voltage matches 208–480 VAC for optimal performance.
Network Compatibility: Verify EtherCAT/CANopen master compatibility.
Safety: Pair with safety-rated controllers for SIL 2/PL Cat 3 compliance.

7. Precautions

Mounting: Install vertically in well-ventilated enclosures to prevent overheating.
Commissioning: Calibrate feedback devices and tune PID parameters using Kollmorgen’s software.
EMI Protection: Use shielded cables and proper grounding to minimize interference.

声明: Shanxi Xinyeda International Trade Co., Ltd. specializes in Kollmorgen automation solutions, including the S70602-PBNANA servo drive. Visit www.xydcontrol.com for technical support or contact us for customized configurations.
