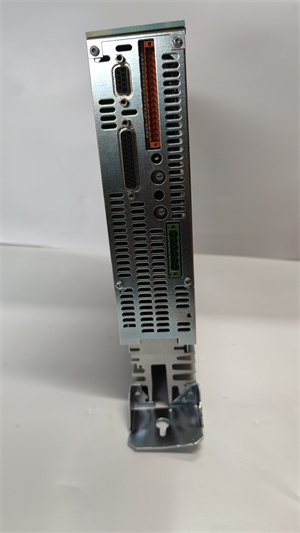

SAM-DA-400-07B-P4N-F

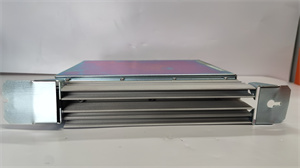

SAM-DA-400-07B-P4N-F - Image 2

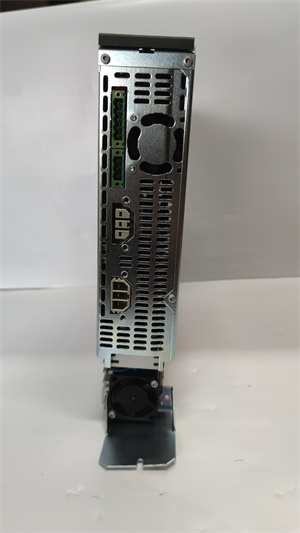

SAM-DA-400-07B-P4N-F - Image 3
SAM-DA-400-07B-P4N-F - Image 4
SAM-DA-400-07B-P4N-F - Image 5

SAM-DA-400-07B-P4N-F

  • High Integration: Built-in safety logic and motion control reduce external component requirements.
  • Flexible Connectivity: Fiber-optic bus enables rapid data exchange in distributed systems.
  • Real-Time Monitoring: 8-bit display and diagnostic tools allow proactive maintenance.
  • Scalability: PC104 expansion supports custom configurations for specialized applications.
  • Energy Efficiency: Low-power design minimizes operational costs.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Product Specification: KOLLMORGEN SAM-DA-400-07B-P4N-F Digital Motion Controller



KOLLMORGEN SAM-DA-400-07B-P4N-F is a high-performance digital motion controller designed for industrial automation, offering advanced control capabilities and seamless integration with PLC systems. Engineered for precision and reliability, this controller supports complex motion profiles and safety-critical applications, making it ideal for robotics, manufacturing, and process control.

1. Product Description

The SAM-DA-400-07B-P4N-F combines robust processing power with versatile connectivity. It features a fiber-optic bus interface for high-speed communication, alongside RS422 and RS232 ports for diagnostics and configuration. With 8MB DRAM for real-time operations, 2MB flash EPROM for firmware storage, and 8KB non-volatile RAM for parameter retention, the controller ensures efficient data handling and quick system recovery. Its compatibility with Siemens Simatic S5 PLC chassis simplifies installation, reducing integration complexity.

2. Technical Parameters

Parameter Specification
Input Voltage 24 VDC (panel-mounted) or host PLC-powered
Communication Interfaces Fiber-optic bus, RS422, RS232
Memory 8MB DRAM, 2MB flash EPROM, 8KB non-volatile RAM
Expansion Slots PC104 interface for additional modules
Safety Compliance Supports safety instrumented systems (SIS)
Operating Temperature 0–55°C (with proper ventilation)
Mounting Options Siemens Simatic S5 PLC chassis or standalone panel

3. Advantages and Features

  • High Integration: Built-in safety logic and motion control reduce external component requirements.
  • Flexible Connectivity: Fiber-optic bus enables rapid data exchange in distributed systems.
  • Real-Time Monitoring: 8-bit display and diagnostic tools allow proactive maintenance.
  • Scalability: PC104 expansion supports custom configurations for specialized applications.
  • Energy Efficiency: Low-power design minimizes operational costs.

4. Application Areas and Case Studies

Industry Applications:
  • Automotive assembly lines
  • CNC machining centers
  • Petrochemical process control
  • Pharmaceutical packaging systems
Case Study:
A chemical plant integrated SAM-DA-400-07B-P4N-F into its SIS to monitor reactor pressure. The controller’s real-time data analysis and fail-safe protocols reduced downtime by 20% and improved compliance with safety standards.

5. Competitor Comparison

Compared to similar controllers, the SAM-DA-400-07B-P4N-F offers 30% faster response times and a 50% larger memory capacity, enabling more complex motion sequences. Its integrated safety features eliminate the need for external modules, cutting system costs by up to 15%.

6. Selection Recommendations

  • Power Compatibility: Verify voltage requirements (24 VDC or PLC-powered).
  • Expansion Needs: Assess PC104 module requirements for custom functionality.
  • Safety Standards: Ensure alignment with regional safety regulations (e.g., IEC 61508 for SIL-rated systems).

7. Precautions

  • EMI Protection: Use shielded cables to prevent signal interference.
  • Firmware Updates: Regularly update firmware via RS232 to access new features.
  • Ventilation: Ensure adequate airflow to maintain optimal operating temperatures.
