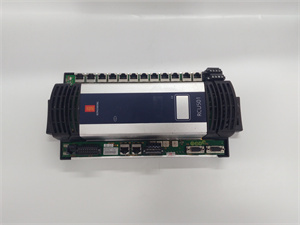

KONGSBERG RCU501
KONGSBERG RCU501 - Image 2
KONGSBERG RCU501 - Image 3
KONGSBERG RCU501 - Image 4
KONGSBERG RCU501 - Image 5

KONGSBERG RCU501

  • High Reliability: Redundant power inputs and built-in self-test (BIST) ensure continuous operation.
  • Scalability: Supports up to 2,000 I/O points for complex systems, with configurable scan rates (1–50 Hz).
  • Flexible Integration: Dual remote I/O buses (RBUS) and 32 serial lines for third-party device connectivity.
  • Energy Efficiency: Low power consumption (<20W) with over-voltage protection.
  • Case Study: A maritime vessel reduced maintenance costs by 20% using RCU501 for predictive maintenance of propulsion systems.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Product Specification: KONGSBERG RCU501 Remote Control Unit



The KONGSBERG RCU501 is a high-performance, real-time process control unit designed for industrial automation, marine systems, and offshore applications. Built with advanced embedded Power PC™ architecture, the RCU501 offers robust processing capabilities, flexible communication protocols, and redundant configurations to ensure reliability in critical environments.

1. Product Description

The KONGSBERG RCU501 serves as a centralized control hub for monitoring and managing complex industrial processes. It supports real-time data processing, multi-protocol communication, and integration with remote I/O modules (e.g., RMP201-8). Key features include:
  • Dual Ethernet LAN: Enables high-speed data exchange and redundancy.
  • Multi-Protocol Support: Compatible with Modbus, Profibus, CAN, and NMEA 0183.
  • Redundancy Options: SIL 2/3 compliance for dual/triple configurations, minimizing downtime.
  • Ex Zone 2 Approval: Certified for use in hazardous environments with explosive gas risks.

2. Product Parameters

Parameter Specification
Processor Embedded Power PC™
Input Voltage 24V DC (-25% to +30%)
Current Consumption 0.8A (nominal), 2.7A (start-up)
Communication Protocols Modbus, Profibus, CAN, Ethernet
Operating Temperature -15°C to +70°C
Storage Temperature -25°C to +70°C
Humidity Up to 98% RH (non-condensing)
Dimensions 355mm × 158mm × 87mm
Weight 1.35kg

3. Advantages and Features

  • High Reliability: Redundant power inputs and built-in self-test (BIST) ensure continuous operation.
  • Scalability: Supports up to 2,000 I/O points for complex systems, with configurable scan rates (1–50 Hz).
  • Flexible Integration: Dual remote I/O buses (RBUS) and 32 serial lines for third-party device connectivity.
  • Energy Efficiency: Low power consumption (<20W) with over-voltage protection.
  • Case Study: A maritime vessel reduced maintenance costs by 20% using RCU501 for predictive maintenance of propulsion systems.

4. Application Areas and Cases

  • Maritime: Dynamic positioning, navigation sensor integration, and engine control.
  • Energy: Power generation, renewable energy management, and grid stability.
  • Industrial Automation: Process control, robotics, and safety systems.
  • Case Study: A wind farm optimized turbine synchronization by 15% using RCU501 to manage real-time sensor data.

5. Competitor Comparison

The RCU501 stands out with:
  • Extended Temperature Range: Operates in -15°C to +70°C vs. industry-standard -10°C to +55°C.
  • Higher Redundancy: SIL 3 compliance for triple configurations, surpassing many single/dual-unit alternatives.
  • Faster Data Processing: 50 Hz scan rate for critical applications like dynamic positioning.

6. Selection Recommendations

  • Environment: Choose IP67-rated enclosures for harsh conditions (e.g., offshore installations).
  • Redundancy: Opt for dual/triple configurations for safety-critical systems.
  • Cost-Effectiveness: Ideal for mid-to-high complexity applications requiring advanced protocol support.

7. Precautions

  • Installation: Ensure proper grounding and cable management to prevent EMI interference.
  • Firmware Updates: Schedule regular online upgrades to maintain compatibility and security.
  • Spare Parts: Maintain a backup unit for systems with zero-tolerance downtime.
