Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi HC-KFS23K-S49 |
| Manufacturer | Mitsubishi Electric |
| Product category | AC Servo Motor |
| Rated Power | 2.3 kW |
| Rated Voltage | 200/400 V |
| Rated Current | 49 A |
| Rated Speed | 3000 rpm |
| Rated Torque | 7.3 Nm |
| Peak Torque | 14.6 Nm |
| Inertia | 0.005 kg·m² |
| Frequency Range | 0 – 60 Hz |
| Control Method | Vector Control |
| Cooling Method | Natural Cooling |
| Protection Level | IP65 |
| Dimensions | 130 mm × 130 mm × 180 mm |
| Weight | 5.5 kg |
| Operating Temperature Range | -10°C to +60°C |
| Certifications | CE, UL, RoHS compliant |

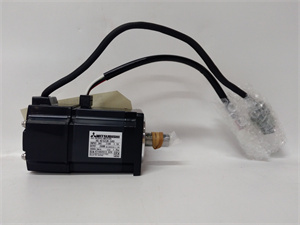

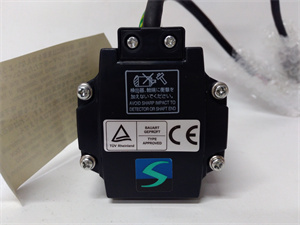

Mitsubishi HC-KFS23K-S49
Product Introduction
The Mitsubishi HC-KFS23K-S49 is a high-performance AC servo motor designed for industrial automation applications. It features high precision, high torque, and high efficiency, making it suitable for various industrial environments.
Core Advantages and Technical Highlights
High Precision and Reliability
The HC-KFS23K-S49 uses a high-precision encoder to ensure accurate positioning and reliable operation. This makes it ideal for applications requiring precise control and high reliability.
High Torque and Efficiency
The motor is designed to deliver a high torque output of 7.3 Nm and a peak torque of 14.6 Nm. It also features a permanent magnet synchronous motor structure, ensuring high efficiency and low energy consumption.
Fast Response and Smooth Operation
Advanced control technology enables the motor to respond quickly to instructions, achieving precise control. The motor operates smoothly with low noise and is easy to maintain.

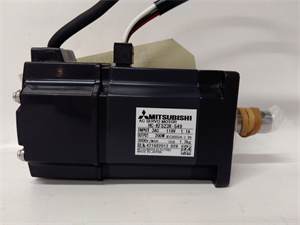

Mitsubishi HC-KFS23K-S49
Typical Application Scenarios
The HC-KFS23K-S49 is widely used in industrial automation fields, including:
-
CNC Machine Tools: Providing precise control for high-precision machining.
-
Robots: Ensuring accurate positioning and smooth operation in robotic arms.
-
Packaging Machinery: Controlling packaging processes with high precision.
-
Printing Machinery: Ensuring high-quality printing with precise control.
-
Food Machinery: Managing food processing equipment with high reliability.
Related Model Recommendations
-
Mitsubishi HC-KFS Series: Other servo motors with different power ratings and configurations.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the HC-KFS23K-S49, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the motor’s requirements (200/400 V) and that the operating temperature range (-10°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the HC-KFS23K-S49. Perform routine inspections to check for loose connections or signs of wear. Clean the motor periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The Mitsubishi HC-KFS23K-S49 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Mitsubishi Electric is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
