Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | Mitsubishi QM100DY-H |
| Manufacturer | Mitsubishi Electric |
| Product category | Power Transistor Module |
| Operating Voltage | 600 V |
| Operating Current | 100 A |
| DC Current Gain | 750 |
| Insulation Type | Insulated |
| Operating Temperature Range | -40°C to +150°C |
| Storage Temperature Range | -40°C to +125°C |
| Dimensions | 94 mm × 18.8 mm × 23 mm |
| Weight | 420 g |
| Certifications | UL Recognized, RoHS compliant |

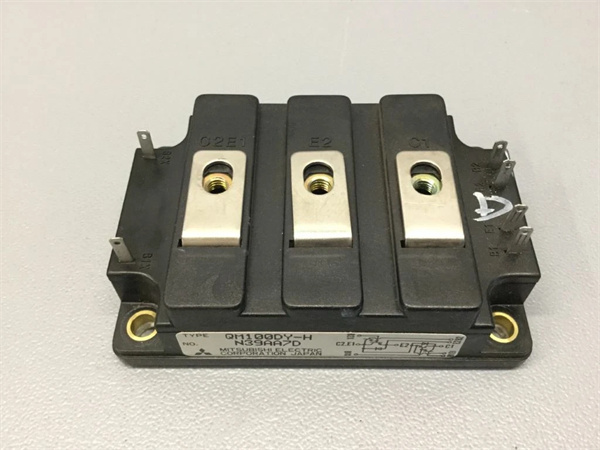

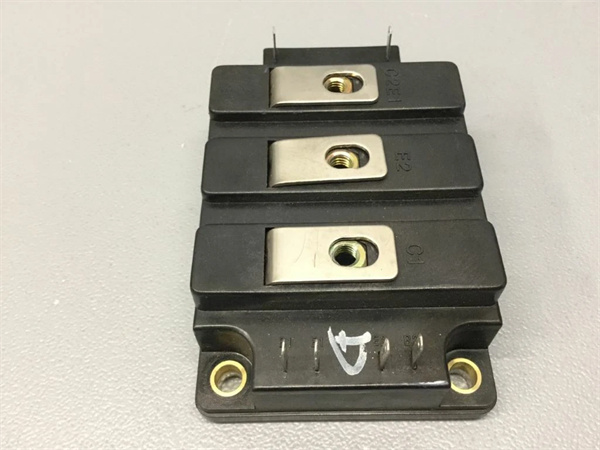

Mitsubishi QM100DY-H
Product Introduction
The Mitsubishi QM100DY-H is a high-performance Insulated Gate Bipolar Transistor (IGBT) module designed for advanced power electronics applications. It offers robust performance in industrial and electrical power conversion systems.
Core Advantages and Technical Highlights
High Power Switching Capabilities
The QM100DY-H features a high collector-emitter voltage (600 V) and a high collector current (100 A), making it suitable for applications requiring high power switching.
Robust Design
The module is designed with an insulated type packaging, ensuring durability and reliable thermal management. It is also RoHS compliant, demonstrating Mitsubishi’s commitment to environmental sustainability.
Wide Application Range
The QM100DY-H is used in a variety of applications, including inverters, servo drives, DC motor controllers, NC equipment, and welders.
Mitsubishi QM100DY-H
Typical Application Scenarios
The QM100DY-H is widely used in industrial automation fields, including:
-
Inverters: For efficient power conversion.
-
Servo Drives: For precise motor control.
-
DC Motor Controllers: For reliable motor operation.
-
NC Equipment: For numerical control applications.
-
Welders: For high-power welding processes.
Related Model Recommendations
-
QM200DY-HB: A similar IGBT module with different specifications.
-
CM100DY-12H: Another high-power switching module in the series.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the QM100DY-H, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (600 V) and that the operating temperature range (-40°C to +150°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the QM100DY-H. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
