Description
System Architecture & Operational Principle
The Motorola MVME2400 is a 6U VMEbus-compliant single board computer (SBC) designed for industrial and embedded applications requiring reliable real-time processing. It serves as the computational core in VME-based systems, interfacing with field devices (sensors, actuators) and external networks (SCADA, DCS) via a combination of VME64 backplane communication and high-speed I/O ports.
Core Functional Blocks
The SBC is composed of four primary functional blocks, each optimized for industrial/embedded use:
-
Processing Unit:
-
CPU: PowerPC 750 (32-bit RISC) microprocessor, featuring 32KB L1 instruction cache, 32KB L1 data cache, and 1MB backside L2 cache for improved data processing speed.
-
Memory: On-board ECC SDRAM (32MB–512MB) for reliable data storage and retrieval, plus 8MB Flash memory for firmware and configuration storage.
-
-
Bus Interface:
-
VME64: Compliant with VME64 standards, supporting A16/A24/A32 addressing and D8/D16/D32/D64 data widths for seamless connectivity with VME-based I/O and system controllers.
-
PCI: Hawk SMC/PCI Host Bridge ASIC optimizes processor-memory-PCI bus throughput, critical for time-sensitive tasks like process monitoring and high-speed data logging.
-
-
I/O Subsystem:
-
Ethernet: 10/100Mb/s Ethernet interface for high-speed network connectivity.
-
Serial: Dual EIA-232/422 serial ports for legacy device integration.
-
PMC Expansion: Two IEEE P1386.1-compliant PMC slots (front-panel/P2 I/O supported) for adding specialized functionality (e.g., A/D conversion, communication modules).
-
-
Power & Cooling:
-
Power Consumption: Operates on VME standard power supplies (+5V DC, ±12V DC, ±5V DC).
-
Cooling: Forced-air cooling recommended for reliable operation in harsh environments (-40°C to +85°C).
-
Operational Workflow
-
Power-Up: The SBC draws power from the VME backplane and initializes the firmware.
-
Boot Process: The firmware configures the CPU, memory, and I/O interfaces, then boots the operating system (e.g., VxWorks, LynxOS, Embedded Linux).
-
Task Execution: The PowerPC 750 processor executes real-time control programs (e.g., signal processing, PID loops) and communicates with field devices via VME64 or Ethernet.
-
Data Transfer: High-speed data transfer between the SBC and VME backplane, while the Ethernet ports handle network communication (e.g., SCADA data upload).
Core Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Processor
|
PowerPC 750 (32-bit RISC), up to 450 MHz
|
|
Cache
|
32KB L1 I-cache/32KB L1 D-cache, 1MB backside L2 cache
|
|
Memory
|
32MB–512MB ECC SDRAM, 8MB Flash
|
|
VMEbus Interface
|
VME64-compliant, A16/A24/A32 addressing, D8/D16/D32/D64 data widths
|
|
PCI Buses
|
Hawk SMC/PCI Host Bridge for processor-memory-PCI optimization
|
|
I/O Ports
|
10/100Mb/s Ethernet, 2x EIA-232/422 serial ports, 2x PMC slots
|
|
Operating Temperature
|
-40°C to +85°C (extended range)
|
|
Power Supply
|
VME standard (+5V DC, ±12V DC, ±5V DC)
|
|
Form Factor
|
6U VME (single slot)
|
|
Weight
|
~2 kg (estimated)
|
|
Certifications
|
CE, UL, MIL-STD environmental ratings
|

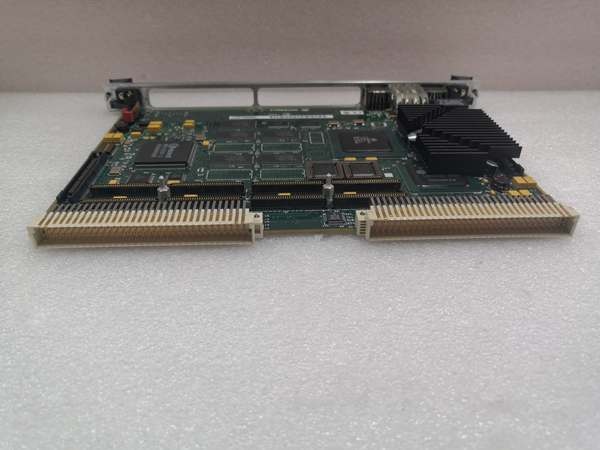

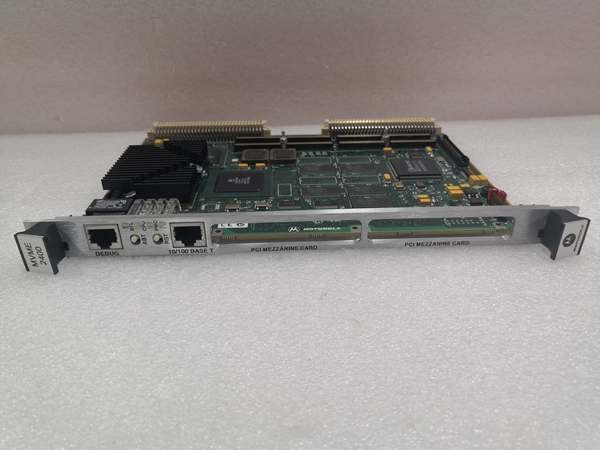

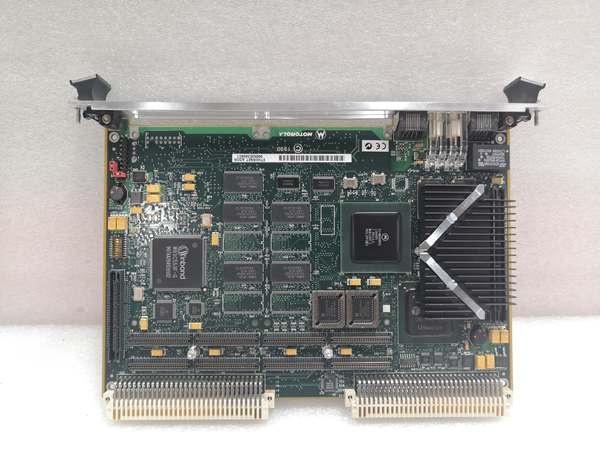

Motorola MVME2400
Customer Value & Operational Benefits
1. Reliable Real-Time Processing
The PowerPC 750 processor and ECC SDRAM enable the MVME2400 to handle complex control algorithms (e.g., PID loops, motion control) and large datasets (e.g., from 100+ I/O channels). This is critical for applications like industrial automation (robotic control) and energy (turbine control).
2. Rugged Durability for Harsh Environments
The wide operating temperature range (-40°C to +85°C) and forced-air cooling make the SBC suitable for:
-
Aerospace: Avionics systems (e.g., flight control computers).
-
Defense: Naval sonar processing, armored vehicle control.
-
Industrial: Oil & gas refineries, power generation (turbine control).
3. Flexible Expansion for Custom Applications
The dual PMC slots allow users to add custom functionality (e.g., FPGA-based signal processing, GPU-accelerated analytics) without modifying the core SBC. This flexibility is ideal for prototype development and system upgrades.
4. Legacy System Compatibility
The MVME2400 maintains pin-level and software continuity with older MVME162 and MVME177 modules, enabling phased modernization projects without requiring a total system overhaul. Engineers can port proven real-time code or OS images with minimal modification, preserving certification and validation cycles.
Field Engineer’s Notes (From the Trenches)
When installing the MVME2400, always verify the VME backplane voltage (+5V DC, ±12V DC) with a multimeter before powering up—incorrect voltage can damage the SBC. I once saw a technician fry a board because he used a non-regulated power supply.Check the PMC slot alignment before inserting expansion cards—misalignment can damage the slot pins. Use the guide rails on the chassis to ensure proper alignment.Test the Ethernet ports (ping the device’s IP address) after installation—use a crossover cable if connecting directly to a laptop. I’ve spent hours troubleshooting “no comms” faults only to find a bad Ethernet cable.Motorola MVME2400
Real-World Applications
1. Industrial Automation: Robotic Assembly Lines
A automotive manufacturer uses the MVME2400 as the core of its robotic assembly line control system. The SBC’s PowerPC 750 processor executes PID loops to adjust robot arm movements, while the dual PMC slots add A/D conversion modules for sensor data acquisition. The -40°C to +85°C operating range ensures reliable operation in the factory floor environment.
2. Aerospace: Flight Simulation Systems
A defense contractor uses the MVME2400 to power flight simulation systems for pilot training. The SBC’s VME64 interface connects to flight sensors (e.g., accelerometers, gyroscopes), while the Ethernet port streams data to the simulation software. The forced-air cooling ensures reliable operation during extended training sessions.
3. Energy: Power Generation Turbine Control
A U.S. power plant uses the MVME2400 to control a 500 MW gas turbine. The SBC executes real-time control programs to adjust fuel flow and turbine speed, maintaining grid frequency (50/60 Hz) within strict limits. The dual PMC slots add communication modules for remote monitoring via the plant’s SCADA system.
