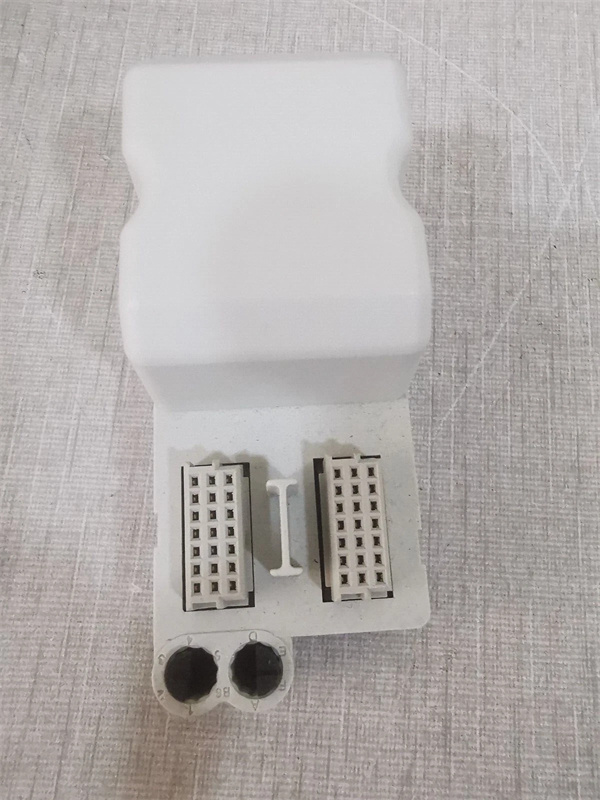

MTL 8604-FT-FU
MTL 8604-FT-FU

MTL 8604-FT-FU

Signal Isolation: The 8604-FT-FU provides electrical isolation to protect sensitive equipment from high voltage, interference, and current surges.
Explosion-Proof Design: Suitable for use in potentially explosive environments, such as those with explosive gases or dust.
High Reliability: Tested for use in harsh industrial environments, including high temperature, humidity, and electromagnetic interference.
Fault Detection and Diagnostics: Features self-diagnostic functions and real-time monitoring to detect and alert on faults.
Modular Design: Easy to integrate with other devices and supports quick replacement and upgrades.
Dual Redundant Data Highways: Enhances system reliability by providing two data highways for communication.
Get a Quote
Manufacturer:
Part number: MTL 8604-FT-FU
Our extensive catalogue, including : MTL 8604-FT-FU , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

Detailed Parameter Table

Parameter Name Parameter Value
Product Model 8604-FT-FU
Manufacturer Eaton MTL
Product Category Bus Interface Module
Communication Protocol Modbus, RS485
Data Transmission Speed Up to 19.2 kbaud
Number of Data Highways 2 (dual redundant)
Input Noise Suppression Up to 0.5 mA peak-to-peak at 100 to 1000 Hz, or 1 mA peak-to-peak at up to 50 Hz
Operating Voltage 24 V DC
Current Consumption 100 mA
Operating Temperature Range -20°C to +60°C
Humidity Range 5% to 95% non-condensing
Dimensions (L×W×H) 120 mm × 80 mm × 45 mm
Weight 0.350 kg
Certifications CE, UL, RoHS, ATEX Cat3 (Europe)
MTL 8604-FT-FU

MTL 8604-FT-FU

Product Introduction

The MTL 8604-FT-FU is a Bus Interface Module (BIM) designed for industrial automation and process control systems. It provides a communication link between the PAC8000 series and supports parameterization configuration from the PROFIBUS host. This module is designed for safe operation in hazardous environments, featuring explosion-proof characteristics to ensure safe operation.

Core Advantages and Technical Highlights

Signal Isolation: The 8604-FT-FU provides electrical isolation to protect sensitive equipment from high voltage, interference, and current surges.
Explosion-Proof Design: Suitable for use in potentially explosive environments, such as those with explosive gases or dust.
High Reliability: Tested for use in harsh industrial environments, including high temperature, humidity, and electromagnetic interference.
Fault Detection and Diagnostics: Features self-diagnostic functions and real-time monitoring to detect and alert on faults.
Modular Design: Easy to integrate with other devices and supports quick replacement and upgrades.
Dual Redundant Data Highways: Enhances system reliability by providing two data highways for communication.

Typical Application Scenarios

The MTL 8604-FT-FU is widely used in various industrial sectors, including power plants, chemical processing, and manufacturing facilities. It is particularly useful for:
  • Process Control Systems: Monitoring and controlling parameters such as temperature, pressure, and flow rates in chemical plants and power stations.
  • Safety Control Systems: Providing protection for critical processes in environments that require high safety and redundancy, such as oil and gas industries.
  • Signal Conversion and Isolation: Ensuring safe and accurate signal transmission between field devices and control systems.

Related Model Recommendations

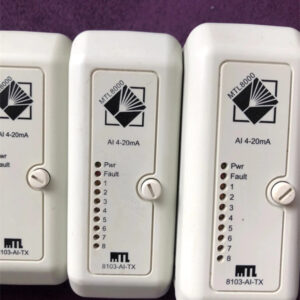

  • 8103-AI-TX: An 8-channel analog input module, suitable for precise measurement.

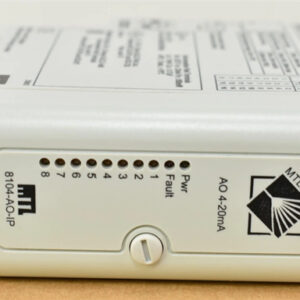

  • 8104-AO-IP: An 8-channel analog output module, ideal for precise control of actuators and other devices.
  • 8119-VI-05: An 8-channel voltage input module, suitable for applications requiring voltage signal acquisition.
  • 8109-DI-DC: An 8-channel digital input module, providing versatile control options for industrial automation.

Installation, Commissioning, and Maintenance Instructions

Installation Preparation: Before installing the MTL 8604-FT-FU, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 8604-FT-FU for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.

Service and Guarantee Commitment

The MTL 8604-FT-FU is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Eaton MTL offers technical support and service to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 8604-FT-FU will deliver reliable performance for years to come.
