Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8715-CA-BI |
| Manufacturer | Eaton MTL |
| Product Category | Bus Interface Module |
| Communication Protocols | Profibus-DP, Modbus RTU, EtherNet/IP |
| Data Transmission Speed | Up to 12 Mbaud |
| Number of Data Highways | 2 (dual redundant) |
| Input Signal Range | 4-20 mA DC |
| Output Signal Range | 4-20 mA DC or 1-5 V DC |
| Isolation Voltage | 1500 V AC |
| Frequency Response Range | DC to 10 kHz |
| Linearity Error | ±0.1% |
| Operating Voltage | 18-32 V DC |
| Current Consumption | ≤15 W |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 22.5 mm × 99 mm × 114 mm |
| Weight | 0.160 kg |
| Certifications | CE, UL, RoHS, ATEX Cat3 (Europe) |
| Installation Method | 35 mm DIN rail mounting |

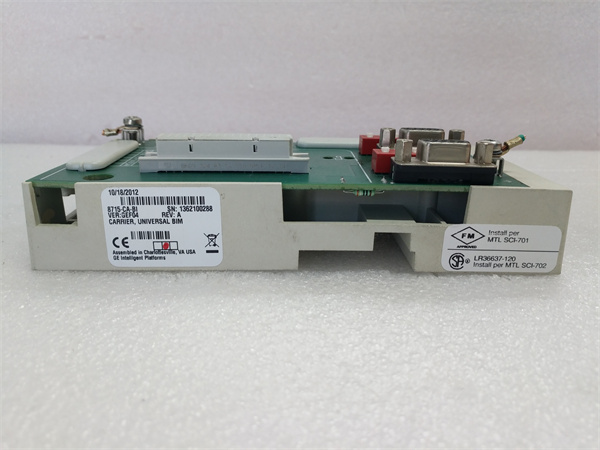

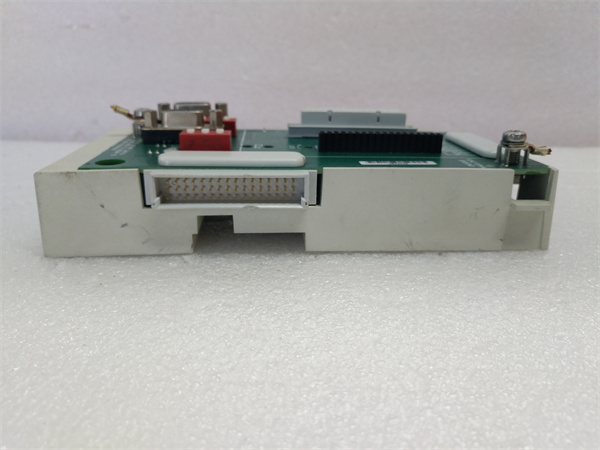

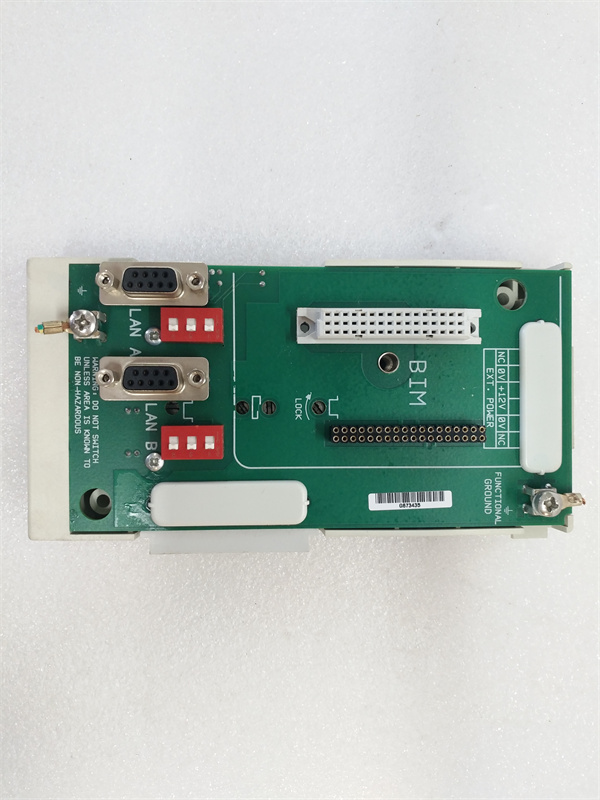

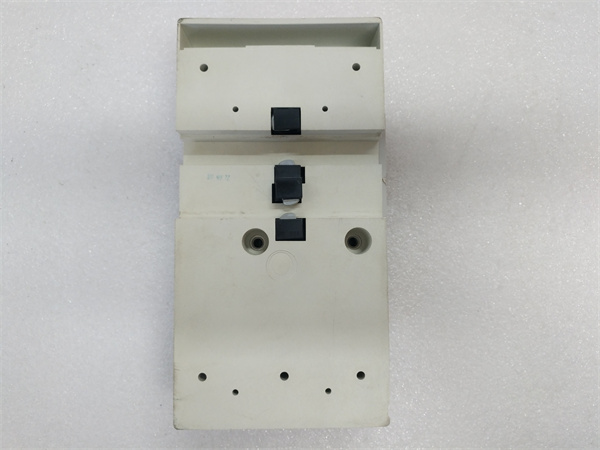

MTL 8715-CA-BI
Product Introduction
The MTL 8715-CA-BI is a high-performance Bus Interface Module (BIM) designed for industrial automation systems. It is part of the MTL 8000 I/O system and is engineered to provide a robust communication link between control systems and field devices. This module supports multiple communication protocols, including Profibus-DP, Modbus RTU, and EtherNet/IP, ensuring seamless integration with various industrial networks.
Core Advantages and Technical Highlights
Signal Isolation: The 8715-CA-BI provides galvanic isolation between input and output circuits, preventing interference and ensuring signal integrity. This is crucial in environments with high electrical noise.
Analog Signal Transmission: The module is designed to isolate and transmit 4-20 mA analog signals, converting them to voltage signals if needed. This flexibility makes it suitable for a wide range of applications.
High-Speed Data Transmission: With support for data transmission speeds up to 12 Mbaud, the 8715-CA-BI ensures real-time control and monitoring in complex industrial systems.
Redundant Data Highways: The module features dual LAN ports for enhanced network redundancy, ensuring continuous operation even in case of a single failure.
Extended Diagnostics: The 8715-CA-BI includes diagnostic functions for module and channel status, facilitating easy troubleshooting and maintenance.
Modular Design: The module supports up to 24 I/O modules, providing extensive input/output capabilities and flexibility for system expansion.
Hot Swap Capability: The module supports hot swapping, allowing for online replacement without interrupting system operation.
Typical Application Scenarios
The MTL 8715-CA-BI is widely used in various industrial sectors, including power plants, chemical processing, and manufacturing facilities. It is particularly useful for:
-
Process Control: Monitoring and controlling parameters such as temperature, pressure, and flow rates in chemical plants and power stations.
-
Data Acquisition and Monitoring: Integrating with SCADA systems to monitor and record the operating status of various devices and systems in real-time.
-
Hazardous Area Applications: Ensuring safe and efficient operation in environments with explosive gases or dust.
MTL 8715-CA-BI
Related Model Recommendations
-
8103-AI-TX: An 8-channel analog input module, suitable for precise measurement.
-
8104-AO-IP: An 8-channel analog output module, ideal for precise control of actuators and other devices.
-
8119-VI-05: An 8-channel voltage input module, suitable for applications requiring voltage signal acquisition.
-
8109-DI-DC: An 8-channel digital input module, providing versatile control options for industrial automation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the MTL 8715-CA-BI, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 8715-CA-BI for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The MTL 8715-CA-BI is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Eaton MTL offers technical support and service to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 8715-CA-BI will deliver reliable performance for years to come.
