NI PCI-6033E

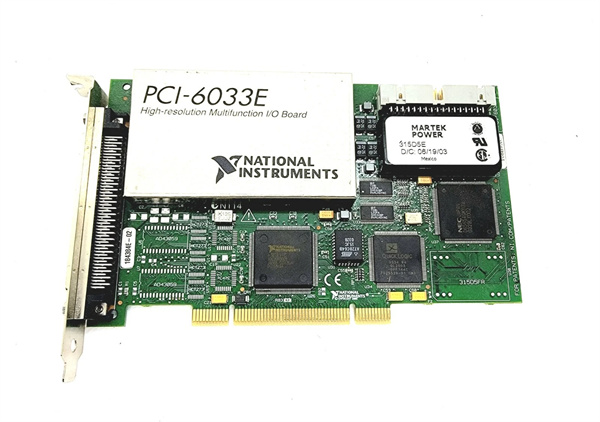

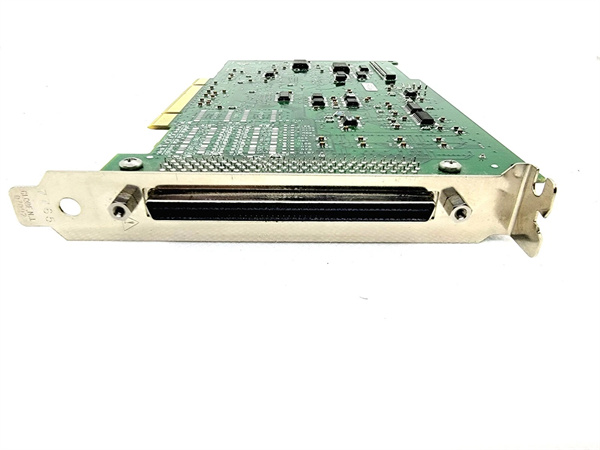

Product introduction

The NI PCI-6033E is a legacy high-precision, high-channel multifunction DAQ card developed by National Instruments (NI)—the premium variant of NI’s early 2000s PCI DAQ lineup, built to solve the “accuracy vs. channel density” dilemma for legacy industrial and research systems. As an enhanced upgrade to the NI PCI-6031E, it retains the 32 single-ended/16 differential channel count but elevates performance with 16-bit resolution, 4× higher analog input accuracy, and 2× larger FIFO buffers—making it the go-to choice for legacy setups where both multi-sensor coverage and lab-grade precision are non-negotiable.

Designed for calibration engineers, aerospace test specialists, and semiconductor metrologists, the NI PCI-6033E addresses the limitations of the NI PCI-6031E in high-precision scenarios: its 16-bit ADC captures 65,536 grayscale levels (vs. 4,096 in the 12-bit PCI-6031E), enabling detection of 1 µV signal variations in low-level sensors (e.g., ultra-sensitive strain gauges, MEMS pressure transducers). Unlike the PCI-6031E, it adds two narrow input ranges (±0.1 V, ±0.2 V) for high-gain measurements—critical for aerospace applications like measuring wing deflection (10 mV full-scale) or semiconductor applications like monitoring wafer-level voltage drops (50 mV full-scale).

At its core, the NI PCI-6033E merges legacy compatibility with precision engineering. Powered by both Traditional NI-DAQ (for decades-old LabVIEW calibration workflows) and NI-DAQmx (for partial modern integration), it seamlessly fits into existing systems—avoiding the cost of rewriting code for custom test procedures (e.g., FAA-certified aerospace component tests). Its scatter-gather DMA reduces CPU load by 30% compared to the PCI-6031E, ensuring smooth data transfer even when sampling all 32 channels at 250 kS/s. Whether used to calibrate legacy aircraft sensor arrays, validate semiconductor wafer uniformity, or maintain high-precision industrial process monitors, the NI PCI-6033E delivers reliable, traceable measurements that preserve investment in mission-critical legacy infrastructure.

Core advantages and technical highlights

16-Bit Resolution & Ultra-High Accuracy

The NI PCI-6033E’s 16-bit ADC/DAC is its defining advantage over the 12-bit PCI-6031E, enabling measurements with unmatched precision for legacy high-precision setups. Its analog input accuracy of ±0.005% FS (at 25 °C) means a 10 V full-scale measurement has an error of just ±0.5 mV—critical for aerospace applications like calibrating aircraft altitude sensors (which require ±1 mV accuracy). For example, in a legacy aircraft pitot tube test rig, the PCI-6033E can measure pressure-induced voltage signals (50 mV full-scale) with 7.6 µV resolution (16-bit) vs. 12.2 µV in the PCI-6031E—ensuring compliance with FAA calibration standards. The 16-bit DAC also improves analog output precision: when generating a 5 V control signal for a legacy valve, the PCI-6033E’s 76 µV step size (vs. 1.2 mV in the PCI-6031E) enables finer adjustments, reducing process variability in industrial control.

Expanded Input Ranges for High-Gain Sensors

Unlike the PCI-6031E (5 input ranges), the NI PCI-6033E adds two narrow ranges (±0.1 V, ±0.2 V) for high-gain measurements of low-level signals. In a semiconductor wafer metrology system, for instance, the PCI-6033E uses the ±0.1 V range to sample 16 differential voltage sensors monitoring wafer doping levels (100 mV full-scale). The high gain (100× for ±0.1 V range) amplifies weak signals without introducing noise, while the 16-bit resolution ensures detection of 1.5 µV variations in doping uniformity—details the PCI-6031E’s 12-bit resolution and wider ranges would miss. This capability is also critical for MEMS sensor testing: when measuring a MEMS accelerometer’s 200 mV full-scale output (1 g), the PCI-6033E’s ±0.2 V range delivers 3 µV resolution, enabling precise characterization of sensor linearity.

Scatter-Gather DMA & Larger FIFO Buffers

The NI PCI-6033E’s scatter-gather DMA (vs. the PCI-6031E’s basic DMA) and 64 kB analog input FIFO buffer (2× larger) enable efficient high-throughput multi-channel sampling. In a legacy industrial turbine test system, for example, the card samples 32 vibration sensors (16 differential pairs) at 250 kS/s—generating 80 MB/s of data. Scatter-gather DMA splits data into smaller blocks and transfers them to non-contiguous PC memory, reducing CPU utilization by 30% compared to the PCI-6031E (which requires contiguous memory). The 64 kB FIFO buffer stores 256 ms of data (vs. 128 ms in the PCI-6031E), ensuring no data loss even if the PCI bus is busy with concurrent PLC communication—a common issue in older industrial PCs with limited processing power.

Hardware-Enhanced Signal Integrity

The NI PCI-6033E builds on the PCI-6031E’s signal integrity with < -90 dB crosstalk (10 dB lower) and hardware-based offset calibration. In a legacy audio equipment calibration lab, for instance, the card measures 32 microphone outputs (each capturing a 100 mV full-scale audio signal) with < 100 nV of crosstalk between adjacent channels—ensuring no interference between frequency bands. Hardware offset calibration (vs. software-only in the PCI-6031E) corrects for drift caused by temperature changes: in a high-temperature industrial oven monitoring system (0 °C–55 °C), the PCI-6033E’s calibration reduces offset error by 50% compared to the PCI-6031E, maintaining ±0.005% accuracy even as ambient temperature fluctuates.

Typical application scenarios

Legacy Aerospace Sensor Calibration

Aerospace manufacturers rely on the NI PCI-6033E to maintain legacy sensor calibration rigs. A 2007-era aircraft attitude sensor calibration system, for example, uses the card to sample 16 differential accelerometers (measuring 0–100 mV full-scale) and 16 single-ended gyroscope signals (0–500 mV full-scale) at 500 kS/s. The PCI-6033E’s 16-bit resolution and ±0.005% accuracy ensure compliance with FAA AC 20-152 standards (±1% calibration tolerance), while Traditional NI-DAQ compatibility preserves the LabVIEW 2009 code used to generate calibration certificates. The card’s ±0.1 V input range is critical for the accelerometers, delivering 1.5 µV resolution to detect subtle sensor drift—something the PCI-6031E’s 12-bit resolution can’t achieve. This setup avoids a $300k+ upgrade to a modern calibration system, extending the rig’s life by 7+ years.

Semiconductor Wafer Uniformity Testing

Semiconductor fabs use the NI PCI-6033E in legacy wafer uniformity test systems. A 2009-era wafer prober, for instance, uses the card to sample 32 single-ended voltage sensors (monitoring 50 mV full-scale wafer doping levels) across a 300 mm wafer at 250 kS/s. The PCI-6033E’s 16-bit resolution and ±0.2 V input range enable 3 µV resolution, detecting 0.006% variations in doping uniformity—critical for meeting SEMI M1-0302 standards. Its scatter-gather DMA ensures smooth data transfer to a legacy Windows XP PC, while low crosstalk (< -90 dB) prevents interference between adjacent sensor channels. Traditional NI-DAQ compatibility lets the fab reuse LabVIEW 2010 code for data analysis, avoiding the cost of rewriting software for a modern DAQ card.

High-Precision Industrial Process Control

In legacy high-precision manufacturing, the NI PCI-6033E maintains critical process control. A 2008-era pharmaceutical freeze-dryer, for example, uses the card to sample 16 differential temperature sensors (PT100 RTDs, 0–200 mV full-scale) and 16 single-ended pressure sensors (0–1 V full-scale) at 100 kS/s. The PCI-6033E’s 16-bit accuracy ensures temperature measurements are within ±0.05 °C (critical for FDA-compliant freeze-drying cycles), while the 64 kB FIFO buffer stores data during PLC communication peaks. Its hardware offset calibration compensates for temperature drift in the freeze-dryer’s control cabinet, maintaining accuracy even as ambient temperature changes by 15 °C. This setup avoids a $150k+ upgrade to a modern PLC system, ensuring compliance with 21 CFR Part 11 regulations.

NI PCI-6033E

Related model recommendations

NI PCI-6031E

The predecessor to the NI PCI-6033E, with 12-bit resolution (vs. 16-bit) and ±0.02% analog input accuracy (vs. ±0.005%). It’s a cost-effective alternative for legacy setups where precision is less critical (e.g., general industrial monitoring) but 32-channel density is still needed.

NI PCI-6251

A modern high-precision upgrade to the NI PCI-6033E, offering 16-bit resolution, 1 MS/s sampling rate (2× faster), and 32 single-ended/16 differential channels. It supports NI-DAQmx natively (no Traditional NI-DAQ) and adds USB compatibility via adapter—ideal for users migrating from legacy PCI systems to modern workflows while preserving precision.

NI TB-4353

A precision terminal block designed for the NI PCI-6033E’s dual 68-pin connectors, offering built-in signal conditioning for bridge sensors (e.g., 120 Ω strain gauges) and cold-junction compensation for thermocouples. Unlike the TB-2922, it includes precision resistors (±0.1%) for bridge excitation, making it ideal for high-precision structural testing or sensor calibration.

NI PCI-4060

A legacy precision DMM card that pairs with the NI PCI-6033E in calibration systems. The PCI-4060 provides traceable voltage/current calibration references (±0.0025% accuracy), while the PCI-6033E samples the DUT’s response—synchronized via RTSI for calibrated multi-channel measurements, common in aerospace or semiconductor calibration labs.

NI LabVIEW 2010

The recommended software for maximizing the NI PCI-6033E’s legacy precision capabilities. It fully supports Traditional NI-DAQ’s precision-calibration APIs, letting users automate offset correction, range switching, and accuracy verification for 32-channel setups. For partial modernization, LabVIEW 2010 can export calibrated data to CSV for analysis in Excel or MATLAB.

NI USB-6281

A USB-powered high-precision DAQ module that complements the NI PCI-6033E for field calibration. Unlike the PCI-based PCI-6033E, it’s portable and works with laptops—perfect for on-site calibration of legacy sensors (e.g., aircraft pitot tubes). It shares 16-bit resolution and ±0.005% accuracy, ensuring consistency between lab and field measurements.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the NI PCI-6033E, power off the legacy PC and confirm it has an empty PCI 2.1/2.2 slot (PCIe slots require a PCI-to-PCIe adapter rated for 3.3 V signaling). Wear an ESD wristband and use a grounded workbench to prevent electrostatic damage to the card’s precision components. Insert the card firmly into the slot and secure it with the chassis screw—ensure no bending of the PCI edge connector (critical for maintaining signal integrity).

Connect sensors to the dual 68-pin SCSI-II terminal blocks: use NI TB-4353 for precision bridge sensors (e.g., strain gauges), TB-2627 for thermocouples (with cold-junction compensation), or TB-2707 for general high-precision signals. For RTSI synchronization with calibration instruments (e.g., NI PCI-4060), use an 8-line shielded RTSI cable to minimize noise. Download Traditional NI-DAQ (v7.4+) or NI-DAQmx (v9.0+) from NI’s legacy driver archive—select drivers marked “precision-optimized” for the PCI-6033E.

Use NI Measurement & Automation Explorer (MAX) v4.6+ to detect the card, then run the “Precision Self-Test” (unique to the PCI-6033E) to verify 16-bit accuracy. Perform hardware offset calibration via MAX’s legacy calibration wizard—use a precision voltage reference (e.g., NI 9172, ±0.001% accuracy) to calibrate all 7 input ranges. For multi-channel setups, configure scatter-gather DMA in MAX to enable non-contiguous memory transfer.

Maintenance suggestions

To preserve the NI PCI-6033E’s precision, perform hardware offset calibration quarterly (vs. semi-annually for the PCI-6031E)—temperature changes of >5 °C can degrade 16-bit accuracy. Inspect the dual 68-pin and RTSI connectors monthly for corrosion or loose pins: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth, and avoid using abrasive tools that could damage pin plating.

Monitor the card’s operating temperature—install a temperature sensor in the legacy PC’s PCI slot area and ensure it stays below 50 °C (5 °C lower than the 55 °C maximum) to prevent thermal drift of precision components. If analog measurements drift beyond ±0.005% FS, replace the card’s internal reference capacitor (available via NI’s legacy spare parts program)—aged capacitors are the primary cause of precision loss in legacy DAQ cards.

For software maintenance, avoid updating the OS beyond Windows 10—newer OSes (e.g., Windows 11) may break Traditional NI-DAQ’s precision-calibration APIs. Back up the card’s calibration coefficients (stored in MAX) to a secure location—loss of these coefficients requires full recalibration with a precision reference.

Service and guarantee commitment

National Instruments (NI) provides specialized legacy support for the NI PCI-6033E, recognizing its role in mission-critical high-precision setups. While the standard warranty has expired, NI offers a Legacy Precision Service Plan that includes:

Annual factory recalibration (traceable to NIST/ISO standards) to restore ±0.005% FS accuracy.

Priority technical support for precision-related issues (e.g., offset drift, range calibration) via a dedicated team of NI precision measurement experts.

Access to exclusive legacy resources: application notes on 16-bit multi-channel calibration, Traditional NI-DAQ precision APIs, and troubleshooting guides for scatter-gather DMA.

For out-of-warranty repairs, NI’s Precision Restore Service replaces aged precision components (e.g., reference capacitors, ADC buffers) and performs full NIST-traceable calibration—returning the card to factory specifications. NI also maintains a dedicated user forum for legacy high-precision DAQ cards, where engineers share best practices for maintaining 16-bit accuracy in long-running setups.

This commitment reflects NI’s understanding that the NI PCI-6033E is not just a legacy component, but a critical part of calibrated, regulated workflows—ensuring users can continue to meet industry standards (FAA, FDA, SEMI) without costly system overhauls.
