NI PCIE-5565-PIORC

Description

NI PCIE-5565-PIORC Product Description

Detailed parameter table

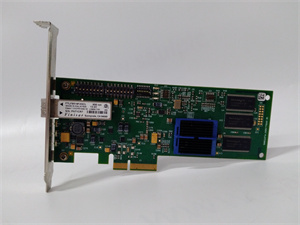

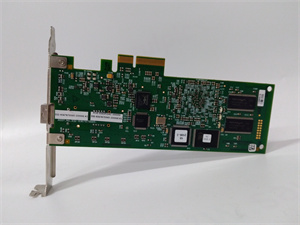

NI PCIE-5565-PIORC

Product introduction

The NI PCIE-5565-PIORC is a high-performance reflective memory node card. It belongs to NI’s range of industrial control products, designed to address the need for high-speed, low-latency data sharing in complex automation systems. This card serves as a crucial interface that enables seamless data exchange among up to 256 independent systems.

The PCIE-5565-PIORC uses its onboard SDRAM, which can be configured as 128MB or 256MB, to store and quickly access data. When data is written, it is not only stored in the local SDRAM but also broadcast over a high-speed fiber-optic data path to other nodes in the reflective memory network. This data transfer between nodes is software transparent, meaning it requires no additional I/O overhead from the processor. As part of NI’s industrial control solutions, it provides a reliable and efficient data-sharing platform for various industrial applications.

Core advantages and technical highlights

High-Speed Data Transfer: The NI PCIE-5565-PIORC offers an impressive data transfer rate, ranging from 43MB/s for single long-word access to a whopping 170MB/s in 64-byte burst mode. This high speed ensures that data is shared in real-time, making it suitable for applications where timely data exchange is critical.

Low Latency: With a latency of only 450 to 500 nanoseconds between nodes, the card enables deterministic data transfer. This low latency is essential for applications such as real-time control systems, where delays can lead to inefficiencies or even system failures.

Scalability: Supporting up to 256 independent systems, the PCIE-5565-PIORC can be easily integrated into large-scale industrial networks. Whether it’s a growing manufacturing plant or a complex research facility, this card can adapt to the increasing demands for data sharing.

Reliability: It features redundant transfer mode, which adds an extra layer of error suppression. Additionally, it has error detection capabilities, protecting against data loss and ensuring the integrity of the shared data.

Flexible Memory Configuration: The option to configure the onboard SDRAM as either 128MB or 256MB allows users to tailor the card’s performance according to their specific application requirements.

Typical application scenarios

In industrial automation, the NI PCIE-5565-PIORC is invaluable. In manufacturing plants, it can be used to synchronize data between different production lines. For example, in an automotive assembly line, data from various sensors on different workstations need to be shared in real-time. The PCIE-5565-PIORC enables this seamless data transfer, ensuring that the assembly process runs smoothly and efficiently.

In power generation facilities, it can connect different control systems. For instance, data from the turbine control system and the generator monitoring system can be shared using this card. This helps in optimizing the power generation process, improving overall plant performance, and ensuring grid stability.

In flight simulators, where high-speed and accurate data transfer is crucial, the PCIE-5565-PIORC can connect different simulation modules. It allows for real-time sharing of data related to aircraft dynamics, avionics systems, and environmental conditions, providing a more realistic simulation experience for pilots in training.

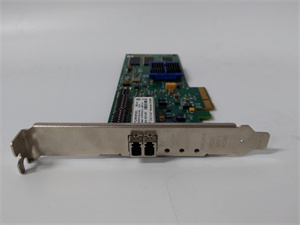

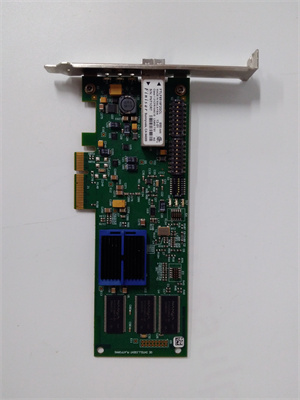

NI PCIE-5565-PIORC

Related model recommendations

PCIE-5565RC: Belongs to the same series as the PCIE-5565-PIORC. It also offers high scalability with support for up to 256 nodes and has similar memory configuration options, suitable for applications where a slightly different feature set within the same product family is required.

cPCI-5565PIORC: It is a CompactPCI version, sharing the high-speed, low-latency data sharing capabilities of the PCIE-5565-PIORC. It can be used in applications where the CompactPCI form factor is more suitable, such as in some industrial rack-mounted systems.

NI PXI-5565: Part of the PXI platform, it is designed for use in PXI-based systems. It shares the reflective memory technology and is useful for applications that require the PXI platform’s specific features, like high-integration and modularity in test and measurement setups.

NI PXIe-5644R: Although it is a vector signal transceiver, it can be used in combination with the PCIE-5565-PIORC in complex test and measurement systems. It can provide additional functionality for signal processing while the PCIE-5565-PIORC handles the high-speed data sharing.

NI cRIO-9082: A real-time controller from NI. It can work with the PCIE-5565-PIORC in industrial control applications. The cRIO-9082 provides real-time processing power, and the PCIE-5565-PIORC enables high-speed data sharing between different parts of the control system.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI PCIE-5565-PIORC, ensure that the installation environment is clean and free from electrostatic discharge risks. The host system should have a compatible PCIe slot. Use appropriate anti-static tools, such as an anti-static wrist strap, during installation. Also, make sure to power off the host system to avoid any electrical hazards.

Maintenance suggestions: For daily maintenance, regularly check the status of the card’s connections and ensure that the fiber-optic cables are not damaged. In case of data transfer issues, first check for any physical layer problems, such as cable disconnections or damaged connectors. If a hardware failure is suspected, and replacement of the PCIE-5565-PIORC is required, follow the installation steps in reverse. Ensure that the replacement card has the correct firmware version, which can be updated as per NI’s guidelines to improve performance and compatibility.

Service and guarantee commitment

NI stands firmly behind the quality of the PCIE-5565-PIORC. The product comes with a comprehensive quality assurance program. In case of any manufacturing defects, NI offers a replacement or repair service within the warranty period. Their dedicated technical support team is available to assist customers with any installation, configuration, or performance-related queries. Whether it’s providing guidance on integrating the card into a complex system or troubleshooting issues, NI’s experts are just a call or an email away. This commitment to quality and after-sales service reflects NI’s confidence in the PCIE-5565-PIORC and their responsibility to ensure customers get the most out of this high-performance industrial control product.
