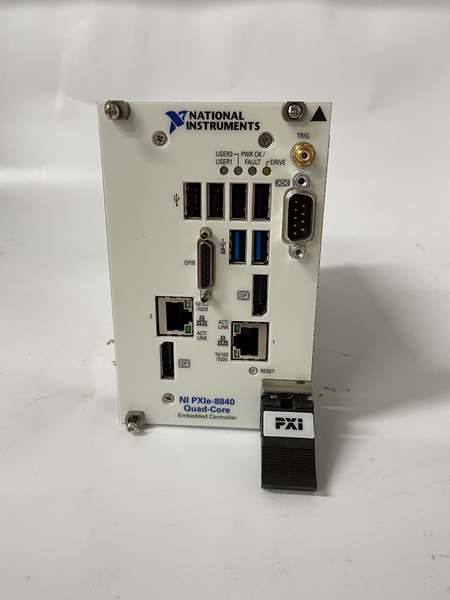

NI PXIe-8840/QC | High-Performance Industrial Automation Controller

Description

PXIe-8840/QC: Product OverviewThe National Instruments PXIe-8840/QC is a flagship rugged PXI Express embedded controller designed to serve as the central “brain” of high-performance test, measurement, and automation systems. This quad-core controller combines powerful processing capabilities with industrial-grade durability, making it ideal for applications requiring reliable, real-time control in harsh environments

.As a critical component of NI’s PXIe modular ecosystem, the PXIe-8840/QC is engineered to unify and manage PXIe modules including digital I/O, analog acquisition, and timing modules. It leverages its Intel Core i7-8665UE quad-core processor to handle simultaneous tasks such as executing test sequences, processing high-volume data from connected modules, and synchronizing system-wide operations

.The controller’s rugged design features a -40°C to 70°C operating temperature range, 50g peak shock resistance, and 1.0g rms vibration tolerance, enabling operation in demanding industrial environments where commercial controllers would fail prematurely

NI PXIe-8840/QC

.PXIe-8840/QC: Technical Specifications

• Model Number:​ PXIe-8840/QC
• Manufacturer:​ National Instruments
• Product Type:​ PXI Express Embedded Controller
• Processor:​ Intel Core i7-8665UE Quad-Core (1.7 GHz base, 4.4 GHz turbo)
• Memory:​ Up to 32 GB DDR4-2400 (non-ECC, dual-channel)
• Storage:​ 512 GB / 1 TB PCIe NVMe SSD (industrial-grade, shock/vibration resistant)
• Operating Systems:​ Windows 10 IoT Enterprise LTSC, LabVIEW Real-Time 2020+
• Communication Interfaces:
• 2× Gigabit Ethernet (RJ45)
• 4× USB 3.0 (Type-A)
• 1× Thunderbolt 3 (USB-C)
• 1× VGA
• Power Consumption:​ 35 W typical, 45 W maximum
• Operating Temperature:​ -40°C to 70°C
• Storage Temperature:​ -55°C to 85°C
• Ruggedization:​ 50g peak shock (11ms), 5-500 Hz vibration (1.0g rms)
• Weight:​ 2.65 lb (1.2 kg)
• Chassis Compatibility:​ All NI PXIe chassis (e.g., PXIe-1082, PXIe-1085, PXIe-1095, PXIe-1075)


  NI PXIe-8840/QC

Core Features & Customer ValueThe PXIe-8840/QC delivers exceptional value through its quad-core processing capabilities, enabling simultaneous execution of test software, data processing from 8+ connected modules, and communication with host PCs via Ethernet/Thunderbolt. This multitasking efficiency can reduce test cycle times by up to 30% compared to dual-core controllers

.The controller’s rugged industrial design​ ensures reliable operation in harsh environments, with its industrial-grade PCIe NVMe SSD resisting data corruption from shock and vibration, and sealed connectors preventing dust/moisture ingress

.When running LabVIEW Real-Time, the PXIe-8840/QC delivers deterministic real-time control​ with sub-millisecond latency, essential for applications like motion synchronization or closed-loop test systems. It integrates seamlessly with NI timing modules to distribute precision clock signals across all PXIe modules, ensuring synchronized operation

.Typical Applications

• Aerospace and Defense:​ Field-deployed avionics test systems, aircraft sensor simulation, avionics component validation
• Semiconductor Manufacturing:​ High-throughput memory chip test systems, DRAM module testing
• Industrial Automation:​ Smart factory systems, automotive production line monitoring, robotic arm control
• Automotive:​ ECU testing, sensor simulation, automotive part assembly systems
• Power Systems:​ Power grid synchronization systems, energy management applications
