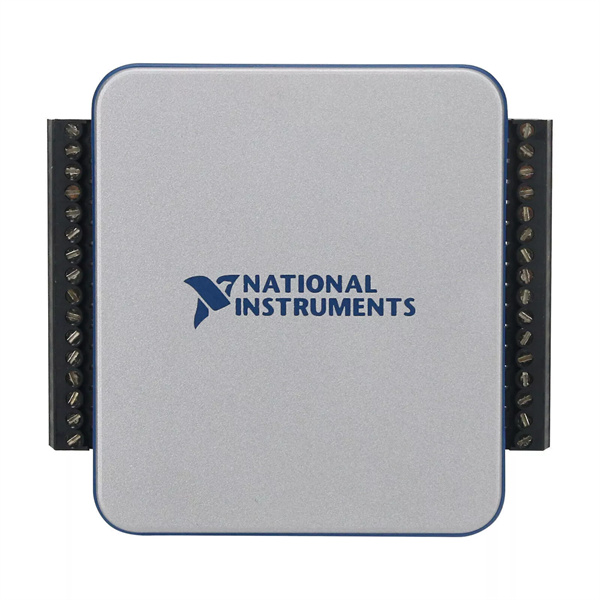

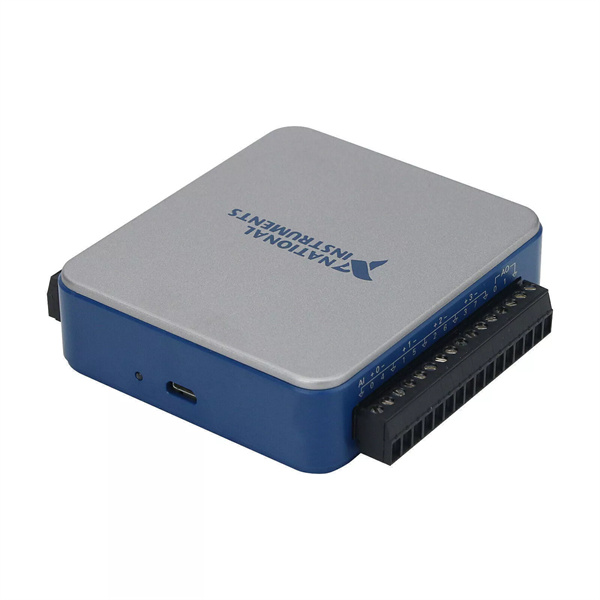

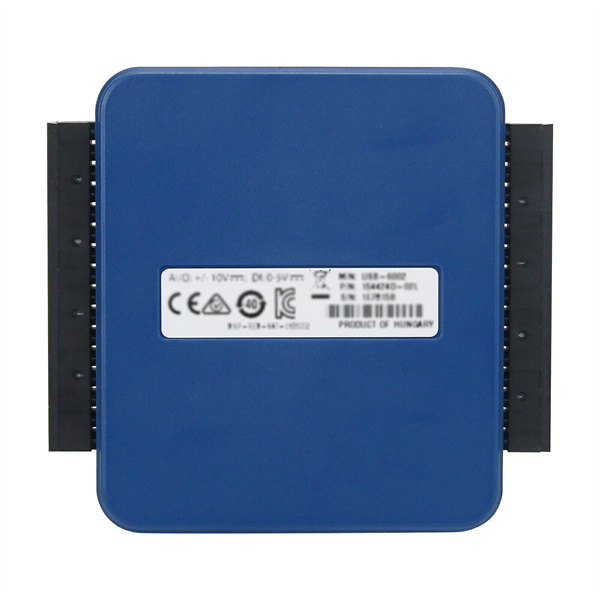

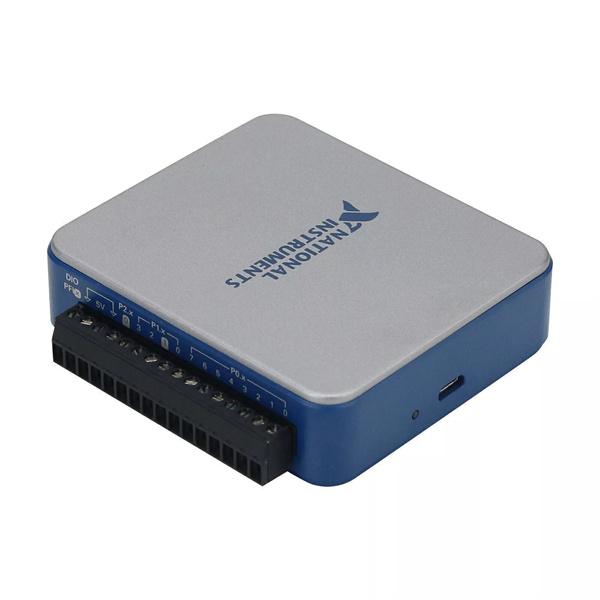

NI USB-6003

Description

Product Overview

The NI USB-6003 is a versatile data acquisition (DAQ) device by National Instruments (NI), designed for entry-level measurement and control applications. As part of NI’s USB-6000 Series, this compact, bus-powered device offers reliable performance for educational labs, hobby projects, and basic industrial monitoring. The USB-6003 features 14 analog input channels with a 100 kS/s sampling rate, enabling users to capture voltage signals with 12-bit resolution. Its plug-and-play design eliminates the need for external power supplies, making it ideal for portable setups or environments where simplicity is key. The device supports both single-ended and differential input configurations, adapting to various sensor types, and integrates seamlessly with NI’s LabVIEW software for intuitive data acquisition, analysis, and visualization. Whether used for teachingDAQ fundamentals or implementing basic automation systems, the USB-6003 balances affordability with functionality, making it a staple for users seeking accessible measurement solutions.

Technical Specifications

NI USB-6003

Main Features and Advantages

Affordable Entry-Level Performance: The NI USB-6003 delivers essential DAQ capabilities at a budget-friendly price, making it an ideal choice for educational institutions, student projects, or small-scale research. Its 12-bit resolution and 100 kS/s sampling rate strike a balance between accuracy and cost for basic signal acquisition.
Flexible Input Configurations: With support for both single-ended and differential analog inputs, the device accommodates a wide range of sensors, from thermocouples to voltage transducers. The 8 digital I/O lines enable simple control of relays or switches, expanding its utility in basic automation tasks.
Plug-and-Play Simplicity: Being fully bus-powered via USB, the USB-6003 requires no external power adapter, enhancing portability. NI’s intuitive driver software (NI-DAQmx) and compatibility with popular programming environments reduce setup time, allowing users to focus on data collection rather than configuration.
Reliable for Basic Applications: The device’s robust construction ensures consistent performance in moderate industrial or laboratory environments. Its built-in signal conditioning, including anti-aliasing filters, helps minimize noise and maintain data integrity for routine measurements.
Scalability within NI Ecosystem: While designed for entry-level use, the USB-6003 can be integrated with other NI devices and software tools as needs evolve. This allows users to scale their systems without overhauling existing setups, making it a versatile long-term investment.

Application Field

The NI USB-6003 thrives in educational settings, where it serves as a hands-on tool for teaching data acquisition principles in physics, engineering, or computer science labs. It enables students to capture and analyze signals from experiments like simple circuit testing, temperature monitoring, or mechanical vibration studies.

In industrial environments, the device supports basic condition monitoring of machinery, such as capturing temperature or pressure data from low-voltage sensors to detect anomalies. Hobbyists and makers leverage its compact design for DIY projects, including home automation systems, robotics, or environmental monitoring stations. The USB-6003 is also used in small-scale research for preliminary data collection, where its affordability and ease of use outweigh the need for high-end precision. Additionally, it finds use in quality control applications for basic product testing, ensuring consistent performance of components or systems through routine signal analysis.

NI USB-6003

Related Products

USB-6008: An upgraded variant with 8 analog inputs, higher sampling rate (200 kS/s), and 12 digital I/O lines, suitable for slightly more complex setups.
USB-6210: A mid-range model with 16 analog inputs, 16-bit resolution, and 250 kS/s sampling, ideal for more precise measurements in research or industrial applications.
NI myDAQ: A educational-focused DAQ device with built-in instruments, designed specifically for classroom use and student projects.
SCB-100: A signal conditioning breakout box that enhances the USB-6003 with terminal connections and protection for high-voltage signals.
NI-DAQmx Base: A simplified driver suite for basic DAQ operations, tailored for users who need straightforward configuration without advanced features.

Installation and Maintenance

Pre-installation preparation: Before connecting the NI USB-6003, download and install the latest NI-DAQmx driver from NI’s official website. Ensure the host computer has a free USB 2.0 port and meets the minimum system requirements. For educational use, verify that LabVIEW or other teaching software is properly licensed and configured. In industrial settings, use shielded cables to minimize electromagnetic interference and route them away from high-voltage sources.
Maintenance recommendations: Keep the device clean by wiping the exterior with a dry cloth to prevent dust accumulation, which can affect performance. Avoid exposing the USB-6003 to extreme temperatures or moisture. Periodically check USB and sensor connections for tightness and physical damage. If software issues arise, update the driver through NI’s Measurement & Automation Explorer (MAX) to ensure compatibility with the latest tools. For long-term storage, package the device in an anti-static bag to protect against electrical discharge.

Product Guarantee

The NI USB-6003 is backed by NI’s 3-year warranty, covering manufacturing defects and ensuring reliable operation. NI provides comprehensive technical support via online resources, including documentation, forums, and direct customer service, to assist with installation, software configuration, and troubleshooting. Users can access free software updates and driver enhancements through NI’s website, ensuring long-term compatibility with evolving systems. This guarantee reflects NI’s commitment to delivering durable, user-friendly solutions for entry-level measurement and control, making the USB-6003 a trustworthy choice for both education and basic industrial applications.
