Description
System Architecture & Operational Principle
The RELIANCE DDS-LPS is a critical component in industrial automation systems, sitting at the Purdue Model Level 1 (Basic Control) or Level 2 (Supervisory Control). It bridges the gap between low-voltage control signals (from PLCs/DCS) and high-power field devices, ensuring seamless data flow and operational accuracy.
Upstream, the DDS-LPS receives 24 VDC control signals from a PLC output module (e.g., Allen-Bradley 1734-OE4C). It processes these signals using signal conditioning (e.g., amplifying voltage/current) to drive downstream field devices like motors, solenoids, or hydraulic valves.
Downstream, the module outputs conditioned signals to field devices, with galvanic isolation preventing voltage spikes from damaging sensitive electronics. This isolation is critical in harsh industrial environments, where electrical noise and voltage fluctuations are common.
The DDS-LPS is designed for hot-swappable installation, allowing technicians to replace it without shutting down the system—reducing downtime during maintenance. Its compact design (160 mm x 100 mm x 40 mm) makes it easy to install in control cabinets, while its IP20 protection rating ensures durability in dry industrial environments.

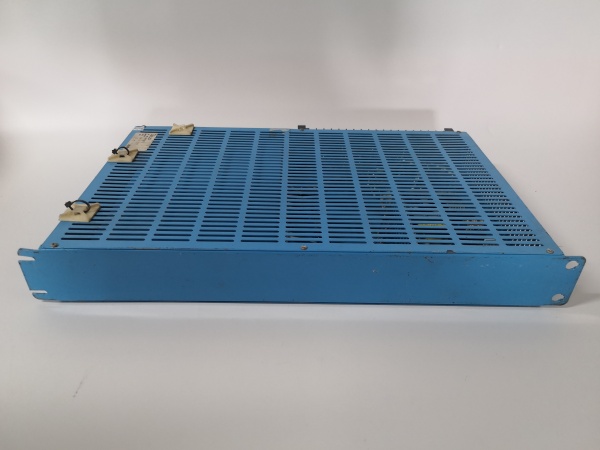

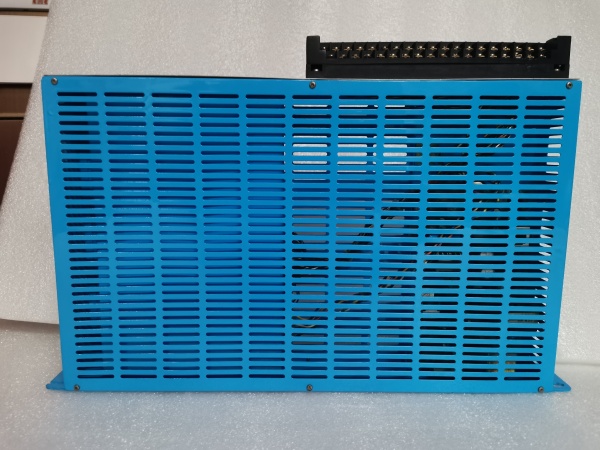

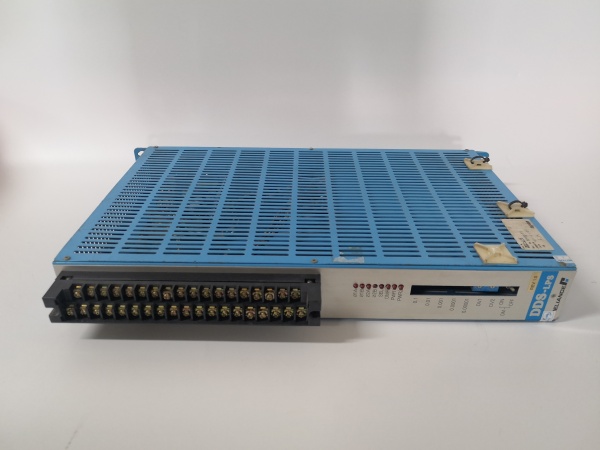

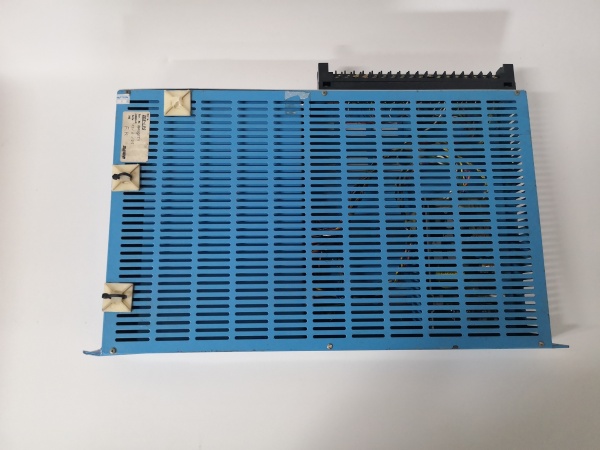

RELIANCE ELECTRIC DDS-LPS
Core Technical Specifications
-
Physical Interface: Screw terminal block (accepts 16-22 AWG wire)
-
Signal Type: Analog/Digital (configurable for industrial applications)
-
Channel Density: 8–16 configurable input/output channels
-
Communication Bus: None (hardwired input/output)
-
Power Supply: 24 VDC nominal (10–36 VDC compatible)
-
Current Rating: 5A per channel (resistive load)
-
Environmental Tolerance: -20°C to +70°C operating; 5-95% RH non-condensing
-
Power Draw: 8–12 W typical
-
Weight: 0.5 kg (1.1 lbs)
-
Certifications: CE, UL, RoHS
Customer Value & Operational Benefits
Reduced Downtime with Hot-Swap Design
The DDS-LPS’s plug-in base allows technicians to replace it without rewiring or shutting down the system. I’ve swapped these in 10 minutes during a shift change, avoiding a 2-hour production stop.
Prevent Unplanned Outages via Isolation
Galvanic isolation protects the PLC from field-side voltage spikes—something I’ve seen save thousands of dollars in damaged hardware. In a wastewater plant, this feature prevented a lightning strike from frying the PLC.
Flexible I/O for Growing Needs
With 8–16 configurable channels, the DDS-LPS adapts to a variety of industrial applications. A packaging line I worked on started with 8 channels and expanded to 16 as they added more sensors—no need to replace the entire module.
Field Engineer’s Notes (From the Trenches)
When installing the DDS-LPS, always verify the input voltage with a multimeter before connecting it to the PLC. I once assumed a 24 VDC supply but found it was 120 VAC—fried the module in 5 seconds.Use ferrules on the wire ends (16-22 AWG) to prevent fraying. Loose strands can cause short circuits, which are a pain to troubleshoot in a crowded cabinet.Label the terminals! “IN” (from PLC) and “OUT” (to field device) get mixed up fast. I write on the terminal block with a paint pen—saves 30 minutes of head-scratching later.If the module doesn’t output a signal, check the fuse (usually a 2A slow-blow) on the input side. I’ve seen 3 failures in 2 years from blown fuses due to power surges.RELIANCE ELECTRIC DDS-LPS
Real-World Applications
-
Automotive Assembly Line Conveyor ControlThe DDS-LPS receives a “start” signal from an Allen-Bradley PLC and outputs a 24 VDC signal to a motor drive, starting the conveyor. The isolation feature prevents damage to the PLC if the motor shorts out.
-
Wastewater Treatment Pump ControlUsed to switch 24 VDC pumps on/off based on level sensor inputs from a PLC. The module’s 5A current rating handles the pump’s inrush current without overheating.
High-Frequency Troubleshooting FAQ
Q: Is the RELIANCE DDS-LPS compatible with Allen-Bradley PLCs?
A: Yes, if the PLC outputs 24 VDC (matching the module’s input voltage). For example, the Allen-Bradley 1734-OE4C (24 VDC output) works with the DDS-LPS—just use a relay to convert the 24 VDC signal to 120 VAC if needed.
Q: How do I diagnose a “no output” fault on the DDS-LPS?
A: Follow these steps:
-
Check the input voltage (24 VDC) with a multimeter.
-
Verify the fuse (2A slow-blow) on the input side—replace if blown.
-
Test the output terminals with a multimeter (look for 24 VDC).
-
If all else fails, swap the module with a known-good one (distributors like Xiamen Xingruijia have spares).
Q: Can the DDS-LPS be used in a NEMA 4X washdown cabinet?
A: No, its IP20 rating isn’t waterproof. For washdown areas, use a NEMA 4X enclosure with gland fittings. Moisture causes corrosion—I’ve seen 2 failures in 1 year from humidity.
Q: What’s the correct torque for the terminal screws?
A: 0.8-1.2 N·m (7-10 in-lbs). Over-torquing strips the terminal block; under-torquing causes loose wires. Use a calibrated screwdriver—cheap ones vary by 30%.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
