1. Product Description
TRICONEX IMFF4703X is a high-performance fieldbus interface module from TRICONEX, designed to enable seamless communication between industrial control systems and field devices in safety-critical environments. As a key component of TRICONEX’s triple modular redundancy (TMR) architecture, the IMFF4703X supports protocols like FOUNDATION Fieldbus H1, making it ideal for process automation applications requiring reliable data exchange. This module ensures accurate transmission of analog and digital signals, while its TMR design provides fault tolerance and continuous operation in harsh industrial settings. The IMFF4703X is widely used in industries such as oil and gas, chemical processing, and pharmaceuticals, where secure and deterministic communication is essential for system integrity.
2. Product Parameters
| Parameter | Details |
|---|---|
| Module Type | FOUNDATION Fieldbus Interface Module (TMR-based) |
| Protocol Support | FOUNDATION Fieldbus H1 (31.25 kbps) |
| Channels | 2 independent H1 segments (up to 24 devices per segment) |
| Power Supply | 24V DC (bus-powered, 9–32V DC tolerant) |
| Isolation | 500V RMS channel-to-chassis, 1500V RMS signal isolation |
| Data Rate | 31.25 kbps (standard for H1) |
| Redundancy | TMR architecture with auto-fault detection and voting |
| Operating Temperature | -40°C to +70°C |
| Certifications | IEC 61508 (SIL 3), ATEX, CSA, ISA 100.11a |
| Dimensions | 177 mm (H) × 48 mm (W) × 203 mm (D) |

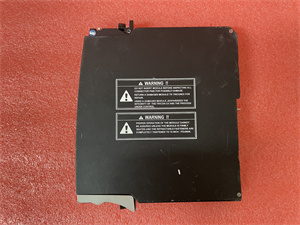

TRICONEX IMFF4703X
3. Advantages and Features
The TRICONEX IMFF4703X offers TMR redundancy, ensuring three independent communication paths to eliminate single points of failure. Its advanced diagnostics provide real-time health monitoring for each segment and device, with fault detection accuracy exceeding 99%. The module’s hot-swappable design allows maintenance without disrupting system operation, while its high-density configuration (2 segments per module) reduces hardware costs and panel space. For example, in a petrochemical plant’s distributed control system (DCS), the IMFF4703X reliably managed 48 field devices across two segments, with TMR ensuring zero communication failures during a simulated network fault.
4. Application Areas and Cases
- Application Areas:
- Process automation (flow control, temperature regulation)
- Smart manufacturing (predictive maintenance, IIoT integration)
- Utilities (water treatment, power distribution)
- Application Case: A global pharmaceutical company integrated the IMFF4703X into its batch processing system to connect 24 mass flow meters and control valves via FOUNDATION Fieldbus. The module’s TMR architecture and intrinsic safety certification ensured compliant operation in a Class 1, Division 1 hazardous area. By leveraging the IMFF4703X’s diagnostics, the plant reduced unplanned downtime by 40% and improved batch consistency through precise real-time data exchange.
5. Competitor Comparison
Compared to non-TMR fieldbus modules, the TRICONEX IMFF4703X delivers superior safety integrity (SIL 3) and deterministic performance, eliminating the need for external redundancy modules. Its support for advanced diagnostics and native FOUNDATION Fieldbus integration outperforms generic multi-protocol alternatives, reducing configuration complexity. Unlike standard fieldbus interfaces, the IMFF4703X’s rugged design and wide temperature range make it suitable for extreme environments without additional cooling or protection.
TRICONEX IMFF4703X
6. Selection Advice
- System Compatibility: Ensure the module is compatible with your TRICONEX controller and Tricon system software to enable full TMR functionality.
- Protocol Requirements: Verify that FOUNDATION Fieldbus H1 aligns with your field device network (e.g., transmitters, valves).
- Safety Standards: Prioritize the IMFF4703X for applications requiring SIL 3 certification, such as safety instrumented systems (SIS) or critical control loops.
- Scalability: Evaluate the number of field devices and segments needed to avoid overloading module capacity (max 24 devices per segment).
7. Precautions
- Network Design: Follow FOUNDATION Fieldbus guidelines for segment length, termination, and power distribution to optimize signal quality.
- Configuration: Use TriStation software to commission devices, set up alarms, and enable redundancy features. Validate network schedules through stress testing.
- Safety Compliance: Ensure proper grounding and intrinsic safety barriers are installed when used in hazardous areas. Regularly audit firmware versions for security patches and compatibility updates.
