Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1X00024H01 |
| Manufacturer | Westinghouse |
| Product Category | Power Supply Module |
| Power Rating | 300W |
| Main Output Voltage | 24VDC |
| Auxiliary Output Voltage | 24VDC |
| Input Voltage Range | 85-264VAC |
| Frequency | 50/60Hz |
| Operating Temperature Range | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection Level | IP20 |
| Dimensions (LxWxH) | 27cm x 20cm x 36cm |
| Weight | 4.06kg |

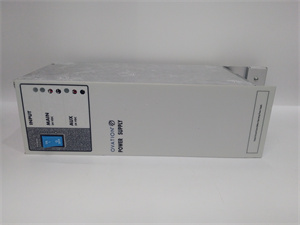

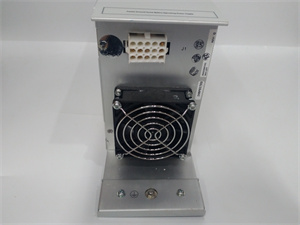

WESTINGHOUSE 1X00024H01
Product Introduction
The Westinghouse 1X00024H01 WH1-2FF Power Supply Module is a highly reliable and efficient power supply solution designed specifically for industrial automation systems, particularly those utilizing the Emerson Ovation platform. This module is engineered to deliver consistent power output, ensuring optimal performance and uptime for critical control systems. With its wide input voltage range and high efficiency rating, the 1X00024H01 minimizes energy loss and operational costs while maintaining compatibility across diverse electrical infrastructures. Its robust design and wide operating temperature range make it suitable for harsh industrial environments, providing long-term reliability and minimal downtime.
Core Advantages and Technical Highlights
High Efficiency and Energy Savings: The Westinghouse 1X00024H01 features a high efficiency rating of up to 98%, significantly reducing energy consumption and operational costs. This eco-friendly design ensures minimal energy loss, making it an ideal choice for modern industrial settings.
Wide Input Voltage Range: With an input voltage range of 85-264VAC, the 1X00024H01 can adapt to various power grid conditions globally, ensuring seamless integration into different industrial environments. This flexibility makes it suitable for a wide range of applications without the need for additional voltage conversion equipment.
Robust and Durable Design: The module is designed with high-quality components and advanced technology, ensuring stable and reliable power delivery. Its IP20 protection class guards against dust and splashes, making it suitable for harsh industrial conditions. The 1X00024H01 can operate within a temperature range of -20°C to +70°C, further enhancing its versatility and reliability.
Easy Integration and Maintenance: The Westinghouse 1X00024H01 is specifically designed for seamless integration with Emerson Ovation systems, ensuring compatibility and ease of installation. Its compact size and standard interface simplify setup and connection, reducing installation time and costs. Clear maintenance instructions and straightforward troubleshooting guidelines ensure minimal downtime during operations.
Compliance with International Standards: The 1X00024H01 meets international safety regulations, including UL, CE, and CCC certifications. This compliance ensures a high level of quality and safety, providing peace of mind for users in various industries.

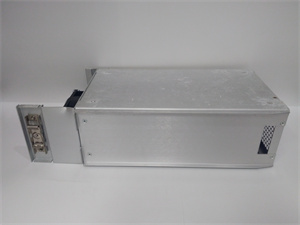

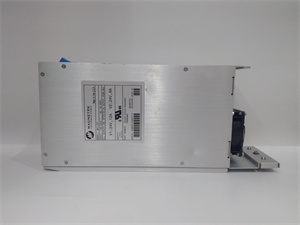

WESTINGHOUSE 1X00024H01
Typical Application Scenarios
The Westinghouse 1X00024H01 WH1-2FF Power Supply Module is widely used in industrial automation systems, particularly those requiring reliable power supply for process control, automation production lines, and monitoring systems. It is an essential component in industries such as power plants, steel plants, cement plants, and paper-making factories. For example, in a power plant, the 1X00024H01 supplies power to the Emerson Ovation control system, ensuring stable operation and reducing the occurrence of equipment failures and downtime. Its ability to operate in harsh conditions and provide consistent power makes it an indispensable part of modern industrial control systems.
Related Model Recommendations
-
Emerson Ovation WH1-2FF: This module is part of the same series as the 1X00024H01 and is designed for seamless integration with Emerson Ovation systems. It offers similar power supply capabilities and is often used in conjunction with the 1X00024H01 for larger installations.
-
Westinghouse 1X00024H02: A higher capacity power supply module suitable for applications requiring more power output. It shares compatibility with the 1X00024H01 and can be used as an upgrade option.
-
Westinghouse 1X00024H03: A variant with additional features such as enhanced monitoring capabilities and improved efficiency. It is designed to work alongside the 1X00024H01 in advanced automation systems.
-
Emerson Ovation WH1-3FF: A complementary module that provides additional functionality for Emerson Ovation systems. It can be paired with the 1X00024H01 to expand system capabilities.
-
Westinghouse 1X00024H04: A replacement module for older systems, offering improved performance and compatibility with modern Emerson Ovation platforms.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1X00024H01, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and voltage tester, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the power supply module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1X00024H01 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as overheating or voltage fluctuations, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1X00024H01 WH1-2FF Power Supply Module is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1X00024H01 will deliver reliable performance for years to come.
