Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | WESTINGHOUSE 5X00481G01 |
| Manufacturer | WESTINGHOUSE |
| Product category | Digital Input Module |
| Operating Voltage | 24 V DC |
| Input Channels | 16 digital inputs |
| Input Voltage Range | 0-24 V DC |
| Input Type | Opto-isolated |
| Response Time | ≤1 ms |
| Operating Temperature Range | -25°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 3.1 cm × 19.1 cm × 12.8 cm |
| Weight | 0.56 kg |
| Certifications | CE, UL, RoHS |
| Communication Interface | Ethernet (Modbus/TCP), RS-485 (Modbus/RTU) |
| Housing | DIN rail mountable |
| Status Indicators | LED indicators for each input channel |
| Protection | Overvoltage protection on inputs |

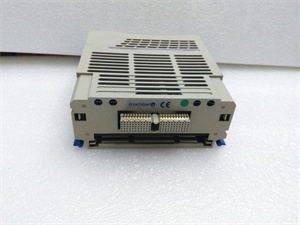

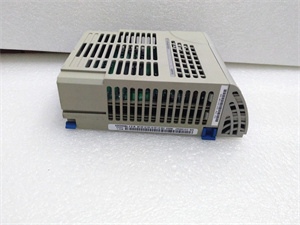

WESTINGHOUSE 5X00481G01
Product Introduction
The WESTINGHOUSE 5X00481G01 is a high-performance digital input module designed for industrial automation systems. It provides reliable and efficient signal processing, ensuring precise monitoring and control in various industrial applications.
Core Advantages and Technical Highlights
High Precision and Reliability
The WESTINGHOUSE 5X00481G01 features 16 digital input channels, each capable of handling signals in the range of 0-24 V DC. It offers high accuracy and fast response times, crucial for real-time monitoring and control.
Robust Design for Harsh Environments
Constructed with high-quality materials, the module is designed to withstand harsh industrial conditions. It operates reliably within a temperature range of -25°C to +70°C and features a protection rating of IP65.
Advanced Communication Capabilities
The module supports multiple communication interfaces, including Ethernet (Modbus/TCP) and RS-485 (Modbus/RTU), ensuring seamless integration with various control systems.
User-Friendly Design
The WESTINGHOUSE 5X00481G01 is designed for easy installation and maintenance. It supports hot-swapping, allowing I/O modules to be replaced without shutting down the system.

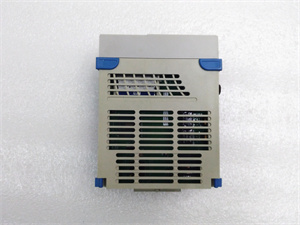

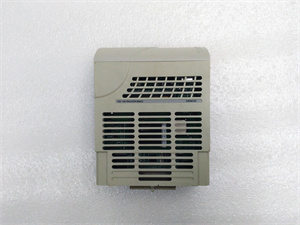

WESTINGHOUSE 5X00481G01
Typical Application Scenarios
The WESTINGHOUSE 5X00481G01 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Oil & Gas: Ensuring safe and efficient operation in refineries and drilling platforms.
-
Power Generation: Real-time control of turbines and generating units.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
WESTINGHOUSE 5X00605G01: An analog input module for precise control.
-
WESTINGHOUSE 5X00605G02: A digital input module for various control applications.
-
WESTINGHOUSE 5X00605G03: An analog output module for precise control.
-
WESTINGHOUSE 5X00605G04: A digital output module for industrial automation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the WESTINGHOUSE 5X00481G01, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-25°C to +70°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the WESTINGHOUSE 5X00481G01. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The WESTINGHOUSE 5X00481G01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
