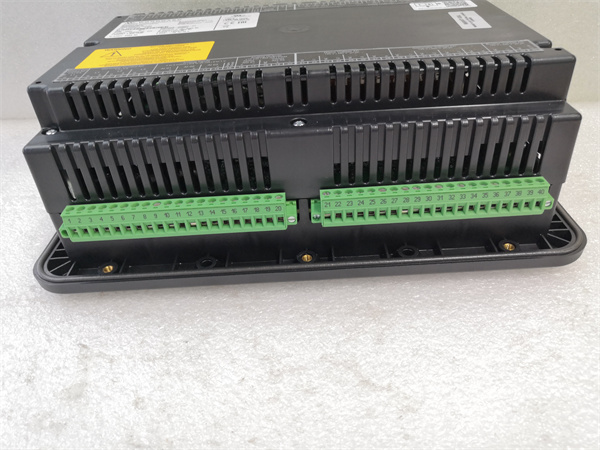

The WOODWARD EASYGEN-3200 is an advanced microprocessor-based generator set controller designed for industrial and commercial power generation applications. As part of Woodward’s EASYGEN series, it offers comprehensive control, monitoring, and protection for diesel, gas, or dual-fuel engines. The controller supports single- or multi-set configurations, paralleling capabilities, and grid synchronization, making it ideal for standby, prime, or peak-shaving power systems. Key features include intuitive LCD interface, configurable alarms, and remote access via Ethernet/Modbus.
2. Product Parameters
Parameter
Specification
Input Voltage
100–240 VAC/VDC (85–264 VAC wide range)
Output Voltage
12 VDC for peripherals
Communication
Ethernet, Modbus RTU/ASCII, CAN bus
Engine Type
Diesel, gas, dual-fuel
Phase Configuration
Single-phase, three-phase
Frequency Range
50/60 Hz (adjustable ±10%)
Ambient Temperature
-25°C to +55°C (-13°F to +131°F)
Enclosure Rating
IP20 (IP54 with optional cover)
Weight
3.2 kg (7.1 lbs)
Certifications
CE, UL, RoHS
3. Advantages and Features
Multi-Mode Operation: Supports manual, automatic, and paralleling modes with up to 16 generators.
Grid Synchronization: Precisely matches voltage, frequency, and phase for seamless grid connection.
Data Logging: Stores 1,000+ events and trends for predictive maintenance.

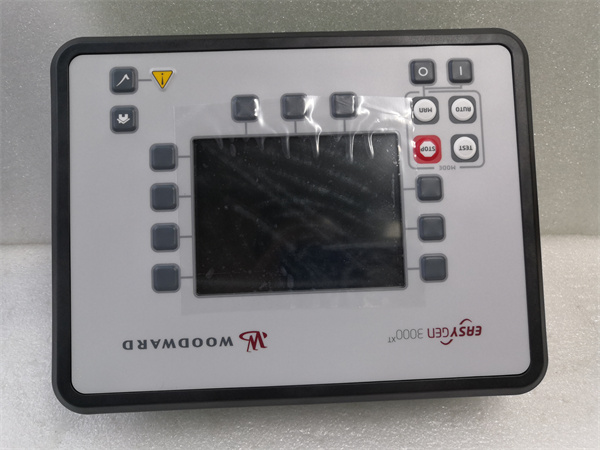

User-Friendly Interface: Large LCD display with graphical status indicators and parameter adjustment via keypad.
4. Application Areas and Case Studies
Data Centers: Ensures uninterrupted power supply during grid outages.
Oil & Gas: Controls generators in remote offshore platforms.
Commercial Buildings: Manages prime power systems in hotels and hospitals.
Case Study: A data center in Germany reduced downtime by 80% using the EASYGEN-3200 to automate generator startup and grid synchronization during utility outages.
5. Competitor Comparison
Compared to similar controllers:
Superior Paralleling: Supports more generators (up to 16) than most mid-range solutions.
Wide Voltage Tolerance: Operates reliably across 85–264 VAC, minimizing voltage regulation costs.
Modular Design: Optional expansion modules for I/O, communications, or advanced features.
6. Selection Recommendations
System Complexity: Choose the EASYGEN-3200 for multi-generator setups requiring paralleling.
Environmental Conditions: Opt for the IP54 cover in dusty or humid environments.
Scalability: Plan for future expansions using compatible I/O modules (e.g., 8440-2028).
7. Precautions
Grounding: Ensure proper grounding to prevent electrical noise interference.
Firmware Updates: Regularly update via Woodward’s LeoPC software for new features.
Battery Backup: Use an external battery for RTC and data retention during power loss.
Overload Protection: Verify circuit breaker ratings match generator output.
声明 山西鑫业达国际贸易有限公司 is your trusted partner for WOODWARD EASYGEN-3200 and generator control solutions. Visit www.xydcontrol.com or contact us for sales and technical support.
