Westinghouse 1C31179G01 | Ovation DCS Remote Input Output Master Connection Unit

Description

Product Overview

Key Technical Specifications

• Communication Protocol: Ovation RIO Protocol (proprietary to Emerson, optimized for low-latency data transfer).
• Data Transfer Rate: 10Mbps (supports real-time control for time-critical processes like turbine speed regulation).
• Remote Node Capacity: Up to 32 remote I/O nodes (allows expansion of I/O points without modifying the central controller).
• Redundancy Support: Dual redundant communication paths (eliminates single points of failure, ensuring 99.999% uptime).
• Auto-Configuration: Automatically detects and configures remote I/O modules (reduces commissioning time by 40% compared to manual setup).
• Diagnostics: Built-in diagnostics for link health, module faults, and communication errors (enables proactive maintenance to prevent unplanned downtime).
• Hot-Swap: Supports hot-swapping (replacement without system shutdown, critical for 24/7 operations).
• Operating Temperature: –40°C to +70°C (IEC 60068-2 compliant, suitable for extreme environments).
• Power Consumption: 5W (typical); 7W (max) (low power design reduces heat dissipation in cabinets).
• Form Factor: Ovation standard I/O module (100mm × 160mm × 25mm, compact for cabinet installation).
• Compatibility: Works with all Ovation DCS controllers (e.g., Ovation 5X00 series) and remote I/O modules.

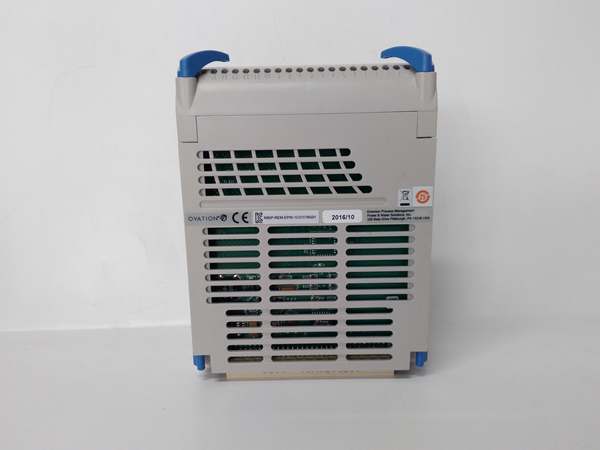

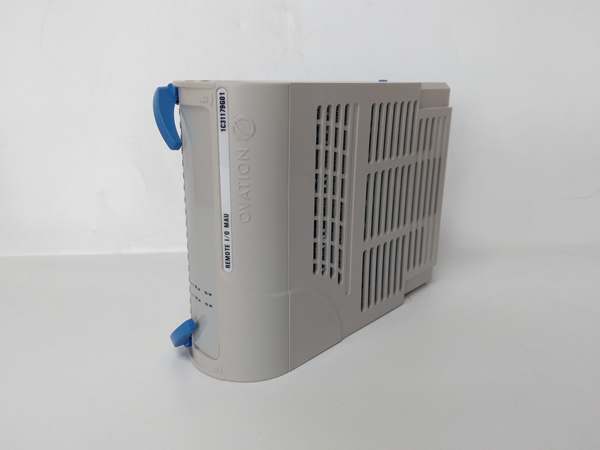

  1C31179G01

Field Application & Problem Solved

1. Enabling Remote I/O Connectivity: It allows field devices to be connected to remote I/O nodes, reducing the need for long copper cables (which are prone to noise and signal loss).
2. Improving Reliability: Dual redundant communication paths ensure continuous data flow even if one path fails, minimizing downtime.
3. Simplifying System Expansion: Adding new remote I/O nodes is straightforward—simply connect the 1C31179G01 to the existing Ovation network, reducing installation time and cost.

• Power Generation: Connecting remote I/O nodes (e.g., turbine temperature sensors, boiler pressure transmitters) to the Ovation DCS for real-time process control.
• Petrochemical Processing: Extending I/O to remote tank farms or loading racks, where centralized I/O is impractical.
• Water Treatment: Linking remote I/O nodes (e.g., pH meters, flow meters) to the DCS for accurate water quality monitoring and control.

Installation & Maintenance Pitfalls (Expert Tips)

1. Verify Compatibility:
   • Always confirm that the 1C31179G01 is compatible with your Ovation DCS controller (e.g., Ovation 5X00 series). Mismatched components can lead to communication errors—we once had a client experience intermittent connectivity due to using an incompatible controller.
2. Ensure Proper Wiring:
   • Use shielded twisted-pair cables​ for communication links to reduce electromagnetic interference (EMI). Avoid running cables alongside power lines—this is a classic cause of “ghost” signals (false readings).
   • Tip: Ground the cable’s shield at one end (preferably the module end) to ensure effective shielding.
3. Test Redundant Paths:
   • The 1C31179G01 supports dual redundant communication paths—always test the failover mechanism during commissioning. Simulate a path failure to ensure the module switches to the backup path without interrupting operation—this is critical for mission-critical applications like power plants.
4. Perform Regular Diagnostics:
   • Use the Ovation software to monitor the 1C31179G01’s status (e.g., link health, module faults) regularly. Address any faults (e.g., communication errors) immediately to prevent downtime—we once identified a faulty cable using the module’s diagnostic tools, avoiding a potential process upset.

Technical Deep Dive & Overview

1. Ovation Controller: Located in the central control room, it processes data from the 1C31179G01 and sends commands to field devices.
2. 1C31179G01 Master Unit: Installed in a remote I/O node or control cabinet, it manages communication between the controller and remote I/O modules.
3. Remote I/O Modules: Connected to field devices (e.g., sensors, actuators), they collect data and send commands via the 1C31179G01.

• Signal Reception: The 1C31179G01 receives data from remote I/O modules via the Ovation RIO Protocol.
• Data Processing: The module processes the data (e.g., filtering noise) and sends it to the Ovation controller via the redundant communication paths.
• Command Execution: The controller sends commands (e.g., “open valve 50%”) to the 1C31179G01, which forwards them to the appropriate remote I/O module.
• Feedback: The remote I/O module sends a status signal back to the 1C31179G01, which transmits it to the controller—critical for diagnostic purposes.

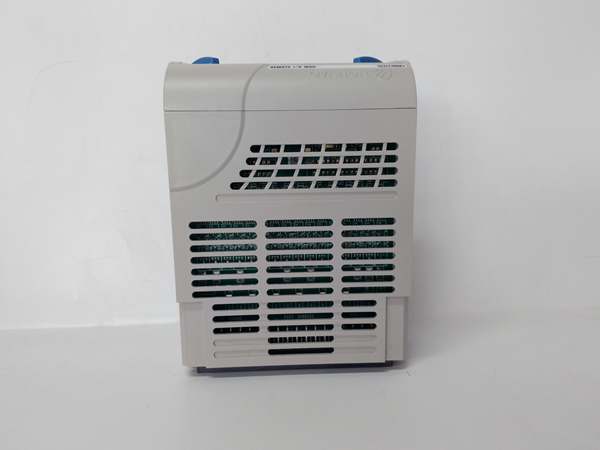

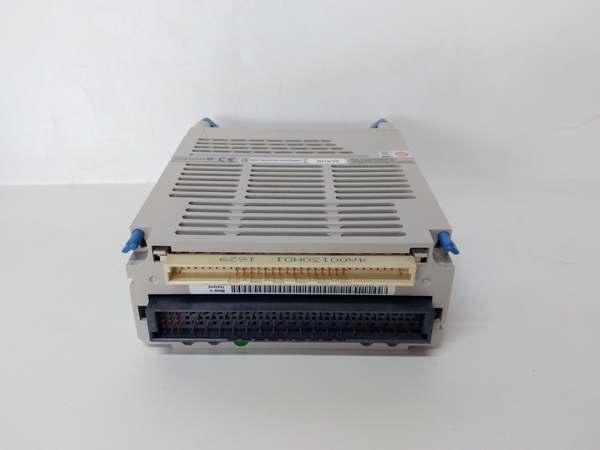

  1C31179G01

• Reliability: Dual redundant paths and hot-swapping ensure continuous operation, even in harsh environments.
• Scalability: Supports up to 32 remote I/O nodes, allowing for easy expansion of the DCS.
• Ease of Use: Auto-configuration and built-in diagnostics reduce commissioning time and maintenance efforts.
