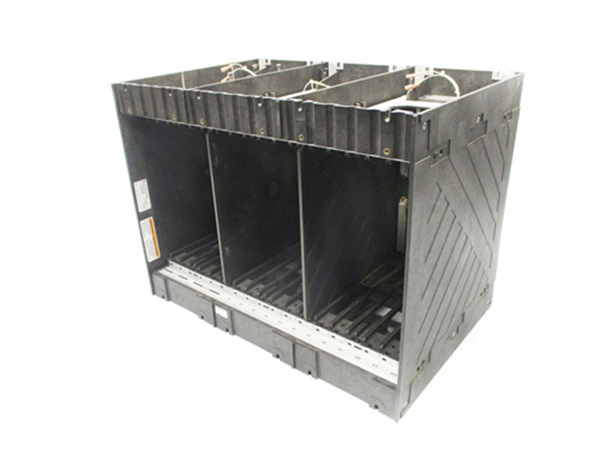

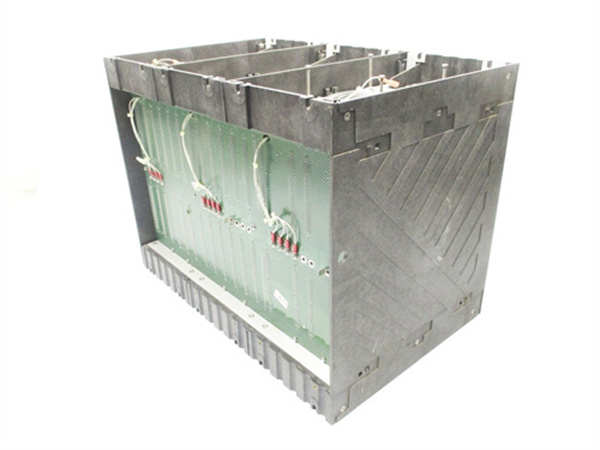

Woodward 5453-278 MICRONET 12-Slot Chassis for Industrial Control Systems
1. Product Description
The Woodward 5453-278 is a 12-slot modular chassis designed for MICRONET systems, providing a rugged platform for integrating control modules in industrial automation. Built for reliability, the 5453-278 supports Woodward’s advanced controllers, such as the 505 series, and interfaces with third-party components for steam turbine, gas engine, and process control applications. Its compact design and DIN rail mounting simplify installation in power plants, refineries, and manufacturing facilities.
2. Product Parameters
Parameter
Specification
Slot Configuration
12 slots for MICRONET modules
Power Supply
12–24 VDC (regulated)
Current Rating
10 A max (distributed across slots)
Operating Temperature
-20°C to +60°C (-4°F to +140°F)
Dimensions
350 × 250 × 150 mm (13.78 × 9.84 × 5.91 in)
Weight
3.2 kg (7.05 lbs)
Certifications
CE, UL/cUL
3. Advantages and Features
Modular Flexibility: Supports up to 12 modules for scalable control solutions.
High Reliability: Rugged construction for harsh industrial environments.
Power Generation: Integrates with Woodward 505 controllers for steam turbine speed regulation.
Oil & Gas: Manages gas engine control systems in offshore platforms.
Manufacturing: Coordinates process automation in chemical and steel plants.
Case Study: A North American power plant reduced downtime by 20% using the 5453-278 to centralize turbine control, improving system responsiveness and energy efficiency.
5. Competitor Comparison
Superior Expansion: More slots (12 vs. typical 8–10) for future-proofing.
Lower Power Draw: Efficient power distribution reduces energy costs.
Industry Standard: Compatible with Woodward’s extensive control ecosystem.
6. Selection Recommendations
Module Count: Choose the 12-slot version for complex systems requiring multiple I/O or communication modules.
Environment: Opt for IP-rated enclosures in dusty or wet environments.
Budget: Consider pre-configured kits for cost-effective deployments.
7. Precautions
Slot Loading: Balance module power consumption to avoid overloading the chassis.
Ventilation: Ensure adequate airflow to maintain operating temperatures.
Firmware Updates: Regularly update module firmware for compatibility and security.
Grounding: Properly ground the chassis to prevent electrostatic discharge.
