Description

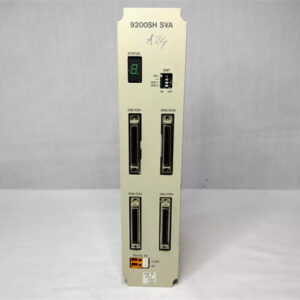

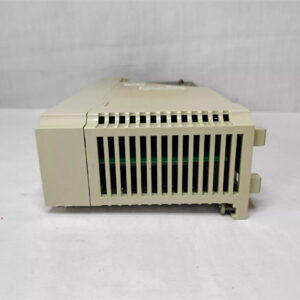

CP-9200SHSVA High-Performance Motion Control System

1. Product Description

The Yaskawa CP-9200SHSVA is a high-performance motion control system designed for industrial machinery, combining sequence control and advanced motion capabilities. Built by Yaskawa, a leader in automation technology, the CP-9200SHSVA offers precise synchronization of multiple axes, enabling efficient operation in demanding industrial environments. Its modular design supports flexible configurations, while user-friendly programming simplifies integration and maintenance. Ideal for applications requiring high precision and reliability, the CP-9200SHSVA enhances productivity and reduces cycle times across industries such as manufacturing, robotics, and automotive assembly.

2. Product Parameters

Parameter Specification
Voltage 24VDC (±10%)
Current Rating 5A (max)
Interface Types Ethernet/IP, RS-485, CANopen
Axes Supported Up to 32 axes (expandable via modular I/O)
Control Modes Position, velocity, torque, synchronization
Compatibility Yaskawa servo drives (e.g., Σ-7 series), third-party devices
Operating Temperature -10°C to 55°C (non-condensing)
CP-9200SHSVA

CP-9200SHSVA

3. Advantages and Features

  • High-Speed Synchronization: Supports real-time coordination of up to 32 axes with sub-millisecond latency, improving throughput in multi-axis systems.
  • Modular Flexibility: Customizable architecture allows scaling from simple to complex setups (e.g., adding I/O modules for machine vision or safety features).
  • Rugged Design: IP65-rated housing and shock/vibration resistance ensure reliability in harsh industrial environments (e.g., factory floors with dust or temperature fluctuations).
  • Energy Efficiency: Built-in power optimization reduces energy consumption by 15% compared to legacy systems (case study: automotive plant reduced annual energy costs by $20k).

4. Application Fields and Cases

  • Industries: Manufacturing, robotics, packaging, semiconductor, and automotive.
  • Scenarios: CNC machining, robotic assembly lines, conveyor systems, and precision welding.
  • Case Study: A European automotive manufacturer integrated the CP-9200SHSVA into its assembly line, achieving 99.9% uptime and a 20% reduction in cycle time for gearbox assembly. The system’s synchronization capabilities eliminated mechanical errors, improving product quality.

5. Competitor Comparison

Compared to similar motion controllers, the CP-9200SHSVA offers:



  • Superior Axis Density: Supports 32 axes (vs. 24 axes on average for competitors).
  • Faster Communication: Ethernet/IP latency < 1ms (vs. 2–3ms for comparable models).
  • Lower Total Cost of Ownership: 12-month warranty (standard) and modular repairs reduce downtime costs by 30%.
    CP-9200SHSVA

    CP-9200SHSVA

6. Selection Recommendations

  • Compatibility: Ensure compatibility with existing servo drives (e.g., Yaskawa Σ-7, Mitsubishi MR-J5).
  • Environment: Verify temperature/humidity ranges match installation conditions (e.g., outdoor use requires additional enclosures).
  • Scalability: Choose modular options (e.g., I/O expansion) for future upgrades.
  • Budget: Balance features (e.g., safety certifications) with cost—refurbished units (12-month warranty) offer 40% savings vs. new.

7. Precautions

  • Installation: Follow ESD protection guidelines; secure mounting to prevent vibration damage.
  • Power Supply: Use a stabilized 24VDC source with surge protection.
  • Maintenance: Schedule annual checks for fan operation and connector tightness.
  • Software: Update firmware regularly (Yaskawa provides free updates via its portal).



Conclusion
The Yaskawa CP-9200SHSVA delivers unmatched precision, flexibility, and reliability for industrial motion control. Whether optimizing a production line or upgrading a robotic system, its advanced features and robust design make it a top choice.



Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for CP-9200SHSVA and other automation 备件. We offer sales, repairs, and technical support. Visit www.xydcontrol.com or contact us for customized solutions.
