ZMI 7714: Product Overview
The ZYGO ZMI 7714 is a high-stability dual-frequency laser head designed for use in ZYGO’s ZMI™ series of displacement measuring interferometers. As a critical component of nanoscale metrology systems, it emits a stabilized, two-frequency laser beam that serves as the foundation for ultra-precise displacement and position measurements.
Role in Metrology Systems:
Positioned as the “light source” in ZYGO’s interferometric setups, the ZMI 7714 performs two primary functions:
-
Frequency Stabilization: Delivers a two-frequency laser output with minimal frequency drift, ensuring the accuracy of displacement calculations in interferometers.
-
Optical Isolation: Protects the laser from back reflections generated by components in the interferometer system, which could otherwise degrade beam quality and measurement precision.
Core Functionality:
-
Dual-Frequency Output: Emits two orthogonally polarized frequencies (e.g., f1 and f2) to enable heterodyne interferometry, a technique that achieves sub-nanometer resolution by measuring frequency differences between the reference and measurement beams.
-
Water Cooling: Uses a closed-loop water cooling system to maintain a constant operating temperature, reducing thermal noise and enhancing long-term frequency stability—critical for applications requiring sustained precision (e.g., semiconductor lithography).
-
Optical Isolation: Incorporates an optical isolator to prevent back-reflected light from re-entering the laser cavity, which could cause mode hopping or frequency instability. This feature is essential for maintaining beam quality in complex interferometric systems.
Platform Benefits (ZMI™ Series):
The ZMI 7714 leverages ZYGO’s expertise in nanoscale metrology, offering:
-
Compatibility: Works seamlessly with ZYGO’s ZMI 240X and 4X04 series measurement boards, as well as third-party interferometer systems that support dual-frequency laser inputs.
-
Scalability: Can be combined with multiple laser heads to enable multi-axis displacement measurements, making it suitable for applications like wafer stage positioning in semiconductor manufacturing.
-
Reliability: Built with industrial-grade components and a rugged design, ensuring 24/7 operation in cleanroom environments (e.g., semiconductor fabs).

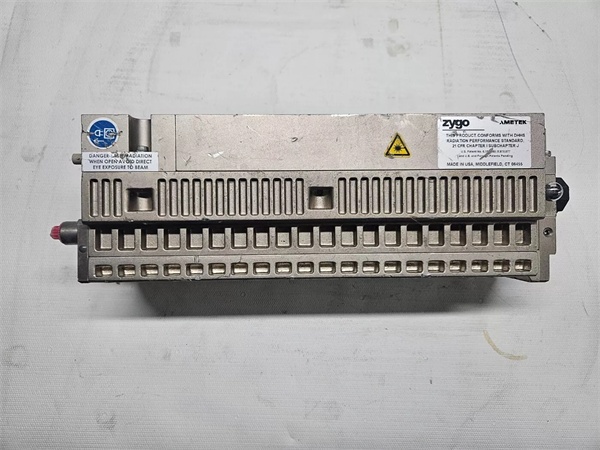

ZYGO ZMI 7714
Technical Specifications
-
Model Number: ZMI 7714
-
Manufacturer: ZYGO (AMETEK)
-
Product Type: Dual-Frequency Laser Head
-
Laser Medium: Helium-Neon (HeNe)
-
Output Power: >650 μW (typical)
-
Wavelength: 632.8 nm (±0.1 nm)
-
Frequency Stability: <1 MHz/hour (water-cooled)
-
Cooling Method: Closed-loop water cooling (requires external chiller)
-
Optical Isolation: >60 dB (back reflection rejection)
-
Beam Diameter: 6 mm (nominal)
-
Polarization: Linear, orthogonal (two frequencies)
-
Operating Temperature: 20°C ± 0.1°C (water-cooled)
-
Weight: 12 kg (26.5 lbs)
-
Certifications: CE, UL (inferred from ZYGO industrial standards)
Core Features & Customer Value
1. Exceptional Frequency Stability:
The ZMI 7714’s water-cooled design and advanced frequency stabilization circuitry ensure that the laser’s output frequency drifts by less than 1 MHz per hour. For customers, this translates to consistent measurement accuracy over long periods—critical for semiconductor lithography, where even nanometer-scale errors can render wafers unusable.
2. Optical Isolation for Beam Quality:
The built-in optical isolator rejects back-reflected light from interferometer components (e.g., mirrors, beam splitters), preventing mode hopping and frequency instability. This feature is invaluable for customers using complex interferometric setups, as it eliminates the need for additional isolation components and reduces system complexity.
3. Compatibility with ZMI Ecosystem:
The ZMI 7714 is designed to work seamlessly with ZYGO’s ZMI measurement boards (e.g., ZMI 4104) and interferometers, enabling customers to leverage their existing ZYGO equipment for nanoscale measurements. This compatibility reduces integration time and costs, making it easier for customers to upgrade their metrology systems.
4. Rugged Industrial Design:
The laser head’s rugged enclosure and water-cooling system make it suitable for operation in cleanroom environments, where temperature and humidity are tightly controlled. Customers can rely on the ZMI 7714 to maintain performance even in demanding conditions, minimizing downtime and maintenance costs.
ZYGO ZMI 7714
Typical Applications
The ZYGO ZMI 7714 is widely used in industries requiring ultra-precise displacement measurement:
-
Semiconductor Manufacturing:
-
Wafer Stage Positioning: Provides the laser source for interferometric systems that position wafers with nanometer-scale accuracy during lithography. For example, in a 7nm semiconductor fab, the ZMI 7714 enables the positioning of wafers to within 0.1 nm of the target position, ensuring that the lithographic pattern is printed correctly.
-
Mask Alignment: Used in mask alignment systems to ensure that the photomask is positioned accurately relative to the wafer, preventing defects in the printed circuit.
-
-
Optical Manufacturing:
-
Lens Testing: Enables the measurement of lens surface figure and wavefront aberrations with sub-nanometer resolution. For example, in the production of high-power laser lenses, the ZMI 7714 is used to verify that the lens surface is free of defects that could degrade laser performance.
-
Optical Component Metrology: Used to measure the thickness and refractive index of optical components (e.g., glass wafers, prisms) with high precision.
-
-
Nanotechnology:
-
Atomic Force Microscopy (AFM): Provides the laser source for AFM systems that image surfaces at the atomic scale. The ZMI 7714’s high stability ensures that the AFM’s cantilever deflection measurements are accurate, enabling researchers to study nanomaterials with unprecedented detail.
-
Nanopositioning: Used in nanopositioning systems to control the movement of stages with nanometer-scale resolution, enabling applications like single-molecule manipulation and nanoassembly.
-
