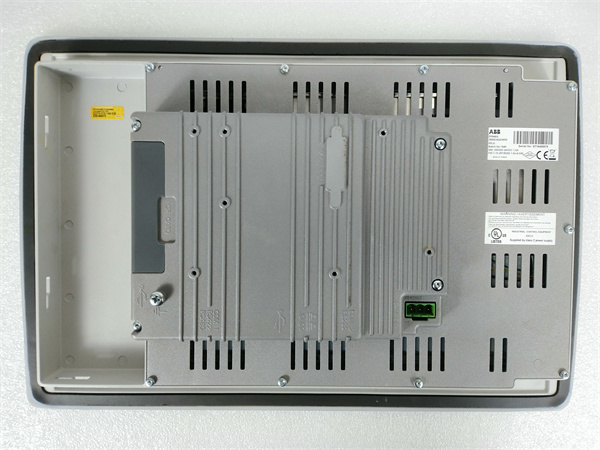

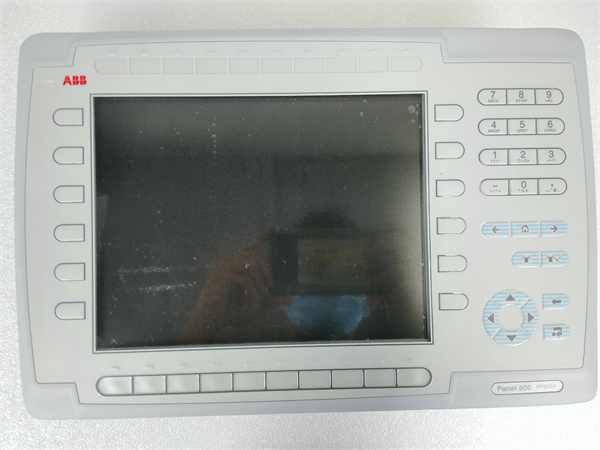

ABB 800PP846A
ABB 800PP846A - Image 2
ABB 800PP846A - Image 3

ABB 800PP846A

  • User-Friendly Operation: It has a fully deployable HMI with fully integrated templates and libraries for all possible processes. The Panel Builder tool has a familiar Microsoft Windows environment and multilingual support, enabling very fast, simple engineering.
  • Reliable and Durable: Constructed with a sturdy but lightweight die-cast powder-coated aluminium enclosure. The IP65/IP66 front shell can withstand humid, dusty and harsh environments.
  • Powerful Connectivity: Built on an open architecture  framework, it can connect with multi-brand controllers, and has a variety of connection options to meet different communication needs.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

1. Product Description

The 800PP846A is an operation panel of ABB’s Panel 800 series. It is designed to make process automation easier. The Panel 800 series combines slim, space-saving dimensions with comprehensive functionality. The 800PP846A is user-friendly, intuitive and ergonomic. It is built on an open architecture  framework, enabling it to connect with multi-brand controllers. All panels of the series are configured using ABB’s Panel Builder tool, which contains all the basic functions required in the application.

2. Product Parameters

  • Display: TFL/LED display with high-resolution vector-based graphics
  • Working Temperature: -30°C to 70°C
  • Humidity: Up to 95%
  • Enclosure Rating: IP65/IP66 for the front shell
  • Communication Interface: Supports multiple connection options for local communication, expansion and remote access

3. Advantages and Features

  • User-Friendly Operation: It has a fully deployable HMI with fully integrated templates and libraries for all possible processes. The Panel Builder tool has a familiar Microsoft Windows environment and multilingual support, enabling very fast, simple engineering.
  • Reliable and Durable: Constructed with a sturdy but lightweight die-cast powder-coated aluminium enclosure. The IP65/IP66 front shell can withstand humid, dusty and harsh environments.
  • Powerful Connectivity: Built on an open architecture  framework, it can connect with multi-brand controllers, and has a variety of connection options to meet different communication needs.

4. Application Areas and Application Cases

  • Application Areas: Widely used in the process automation fields of various industries such as manufacturing, energy and chemical industry. It is suitable for scenarios that require intuitive operation and monitoring of the production process, such as control rooms, production lines, etc.
  • Application Case: In a chemical plant, the 800PP846A operation panel is used in the control room to monitor and control the chemical reaction process. Operators can use the touch screen to easily adjust process parameters, view real-time data and alarm information, improving production efficiency and safety.

5. Competition Comparison

Compared with some similar products in the market, the 800PP846A has obvious advantages in terms of enclosure protection level and connectivity. Its IP65/IP66 front shell provides better protection in harsh environments than some competitors’ products. In addition, its ability to connect with multi-brand controllers based on an open architecture and.NET framework gives users more choices and flexibility, while some similar products may have limitations in this regard.

6. Selection Suggestions

  • Compatibility: Consider whether it is compatible with the existing control system and equipment in your project to ensure seamless integration.
  • Installation Environment: According to the actual installation environment, such as temperature, humidity and dust level, select a panel with appropriate protection level. The 800PP846A is suitable for harsh environments with its IP65/IP66 rating.
  • Function Requirements: Based on the specific operation and monitoring functions required by the project, choose a panel with corresponding functions. If you need to display high-resolution graphics and have complex operation requirements, the 800PP846A is a good choice.
  • Budget: Consider your project budget, but also take into account the overall performance and quality of the product. The 800PP846A offers high cost performance.

7. Precautions

  • Installation: When installing, place the operation panel on a stable plane. Cut a suitable opening according to the cutting dimensions described in the structure drawing.
  • Connection: Connect a wire of the correct size between the connector of the quick-connect terminal on the operator panel and the panel chassis according to local electrical codes. Also connect a ground wire between the panel chassis and the nearest ground point on the door.
  • Power Supply: When connecting the power cable to the 24V DC power supply, winding the power cable twice around the magnetic core can produce four times the anti-interference effect of winding it once.
