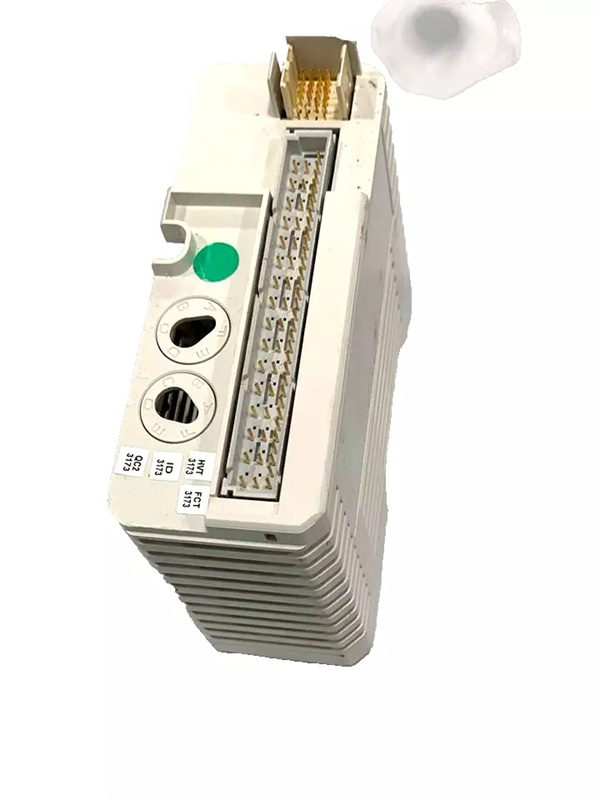

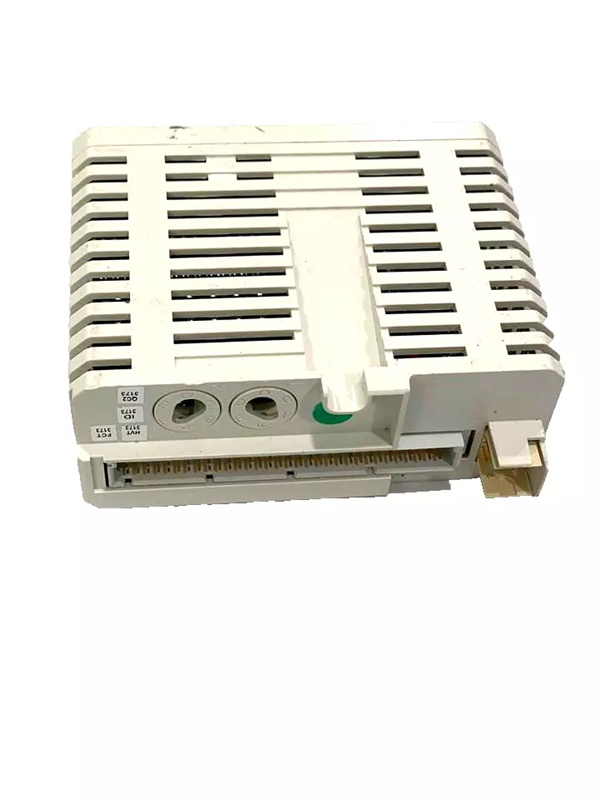

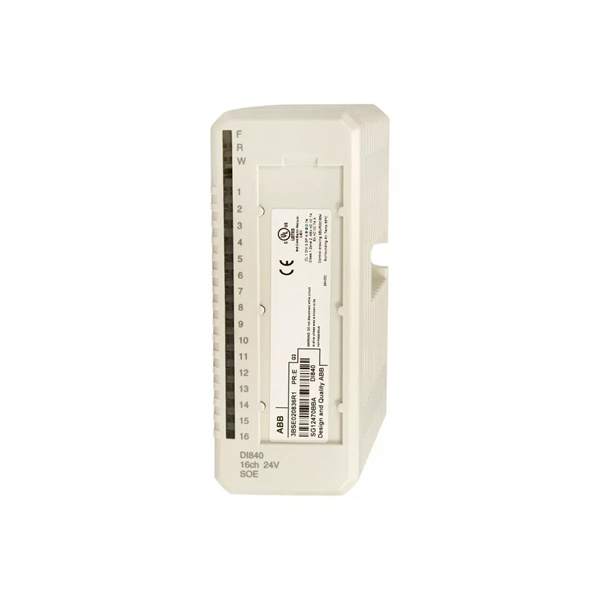

ABB DI840
ABB DI840 - Image 2
ABB DI840 - Image 3
ABB DI840 - Image 4

ABB DI840

  • High Reliability: It adopts advanced circuit design and high-quality electronic components, and can work stably in the temperature range from -25°C to +60°C. The Mean Time Between Failures (MTBF) is as high as more than 100,000 hours, ensuring stability during long-term operation.
  • Easy Integration: Its standardized interface and good compatibility with ABB PLCs make system integration very convenient. It can be quickly installed and configured, greatly shortening the project implementation cycle.
  • Flexible Input Configuration: The DI840 can be configured to adapt to different input signal requirements, allowing users to set up each channel according to specific application scenarios, enhancing the flexibility of the system.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

1. Product Description

The ABB DI840 is a high-performance digital input module that plays a vital role in the field of automation control. It is mainly used to convert external digital signals into signals that can be recognized and processed by the PLC system. The DI840 can accurately collect and transmit signals such as switch quantities and digital pulses. Its core function lies in monitoring the status of various field devices, such as the running/stopping status of motors and the open/closed status of valves. The DI840 is highly reliable and stable, capable of operating stably in complex industrial environments, ensuring the accuracy and timeliness of signal transmission, thus providing a solid foundation for automation control systems. It has the advantages of supporting various input signal types, having a wide voltage range, and good electromagnetic compatibility, making it suitable for different application scenarios and requirements. Whether in small automation projects or large industrial production lines, the DI840 can play its important role in helping users achieve efficient and precise control.

2. Product Parameters

Parameter Details
Voltage 24V DC (usually with a certain voltage tolerance range, such as 20.4V – 28.8V)
Current Typically low current consumption per channel, generally in the milliamp range
Interface Type Standard terminal block interface for easy connection to external devices
Number of Channels Usually 8 channels
Compatibility Compatible with various ABB PLC series, such as the AC500 series
Input Signal Types Supports dry and wet contact inputs, accepts PNP/NPN signals

3. Advantages and Features

  • High Reliability: It adopts advanced circuit design and high-quality electronic components, and can work stably in the temperature range from -25°C to +60°C. The Mean Time Between Failures (MTBF) is as high as more than 100,000 hours, ensuring stability during long-term operation.
  • Easy Integration: Its standardized interface and good compatibility with ABB PLCs make system integration very convenient. It can be quickly installed and configured, greatly shortening the project implementation cycle.
  • Flexible Input Configuration: The DI840 can be configured to adapt to different input signal requirements, allowing users to set up each channel according to specific application scenarios, enhancing the flexibility of the system.

4. Application Areas and Application Cases

  • Applicable Industries and Scenarios: The DI840 is widely used in various industries such as manufacturing, energy, and water treatment. In the manufacturing industry, it is used to monitor the status of production equipment, such as the operation of conveyor belts and the opening and closing of pneumatic valves. In the energy industry, it can be used to monitor the running status of power generation equipment and the switching status of power distribution systems. In the water treatment industry, it is used to monitor the operation of pumps and the opening and closing of water valves.
  • Application Case: In a large-scale automobile manufacturing plant, the DI840 is used to monitor the status of hundreds of production equipment. For example, it monitors whether the welding robots are in working condition, whether the conveyor belts are running normally, and whether the clamping devices of the assembly line are in the correct position. Through the accurate signal collection and transmission of the DI840, the production line can be monitored in real time, and problems can be detected and dealt with in a timely manner, improving production efficiency and product quality.

5. Competition Comparison

Compared with similar products in the market, the ABB DI840 has significant advantages in terms of reliability, compatibility and flexibility. It has a wider voltage range and can adapt to harsher power supply environments. Its compatibility with ABB’s PLC systems is unmatched by many competitors, enabling seamless integration and reducing system commissioning time. In addition, its rich input signal types and flexible configuration options provide users with more choices and greater convenience, which is difficult for some similar products to achieve.

6. Selection Suggestions

  • Compatibility: When selecting the DI840, make sure that it is compatible with your existing PLC system. Check the model and series of your PLC to ensure a perfect match.
  • Installation Environment: Consider the installation environment, such as temperature, humidity and electromagnetic interference. If the environment is harsh, it is necessary to choose products with better anti-interference performance and wide temperature range.
  • Budget: Although the ABB DI840 offers high performance and reliability, it is also necessary to consider your budget. Evaluate the performance and price of different products to find the most cost-effective solution.

7. Precautions

  • Safety Specifications: When installing and using the DI840, strictly follow the relevant safety regulations. Make sure to cut off the power supply before installation to avoid electric shock.
  • Maintenance Advice: Regularly check the connection of the module to ensure that the terminals are not loose. Clean the module regularly to remove dust and dirt to prevent poor heat dissipation and affect performance.
